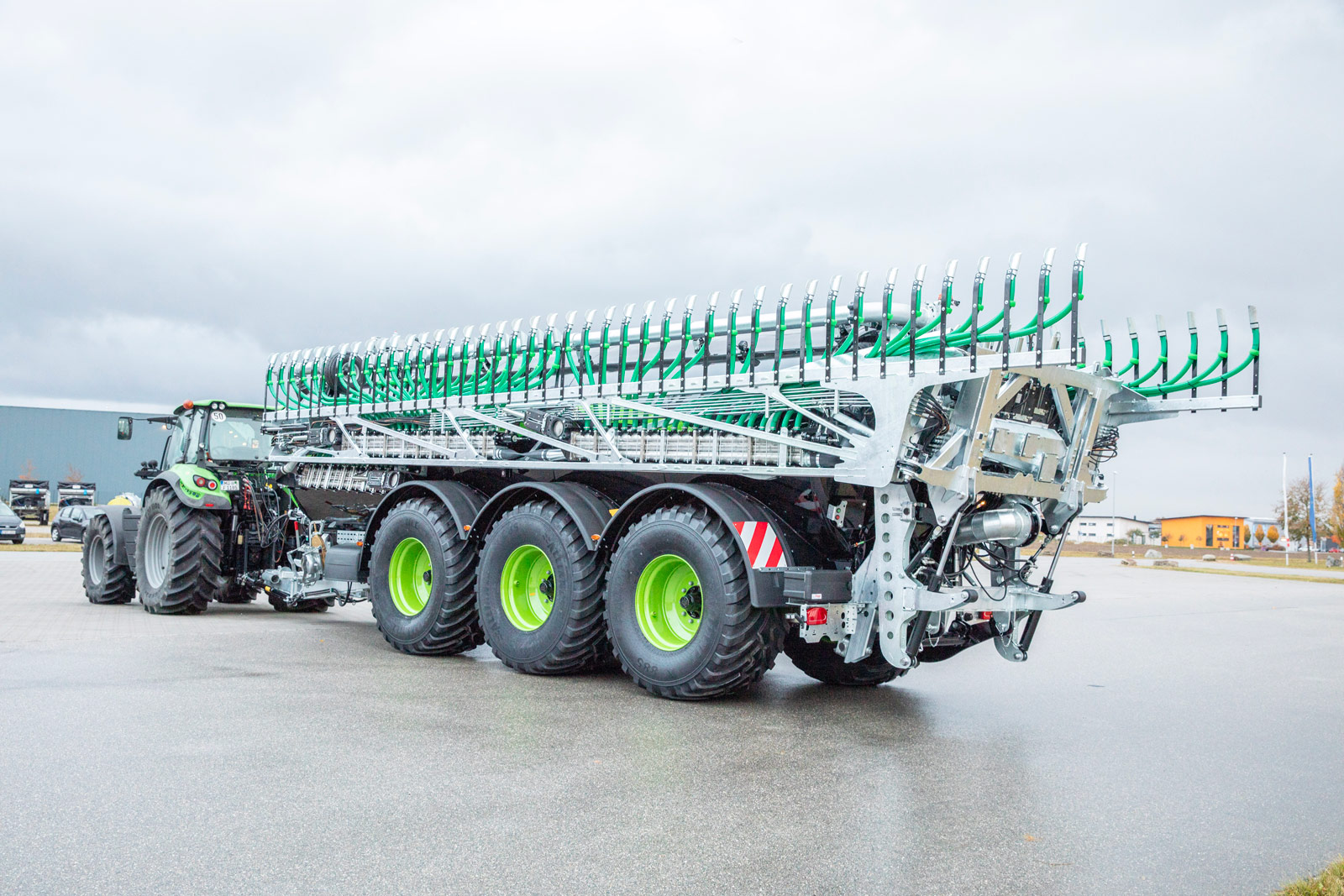

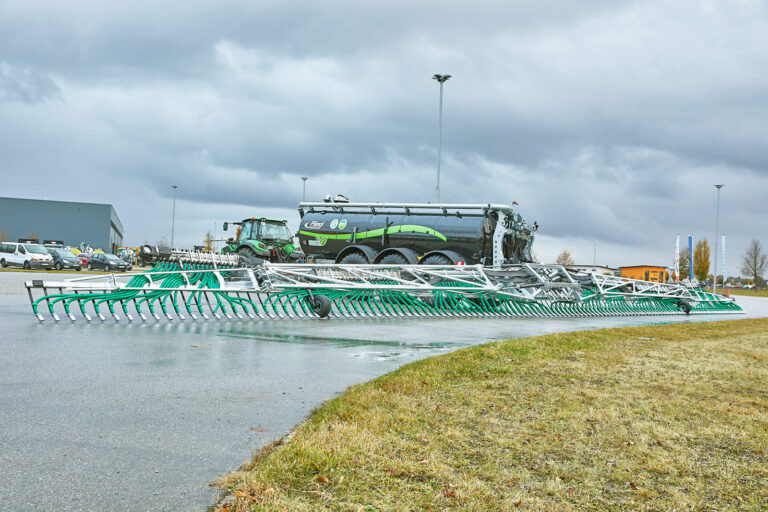

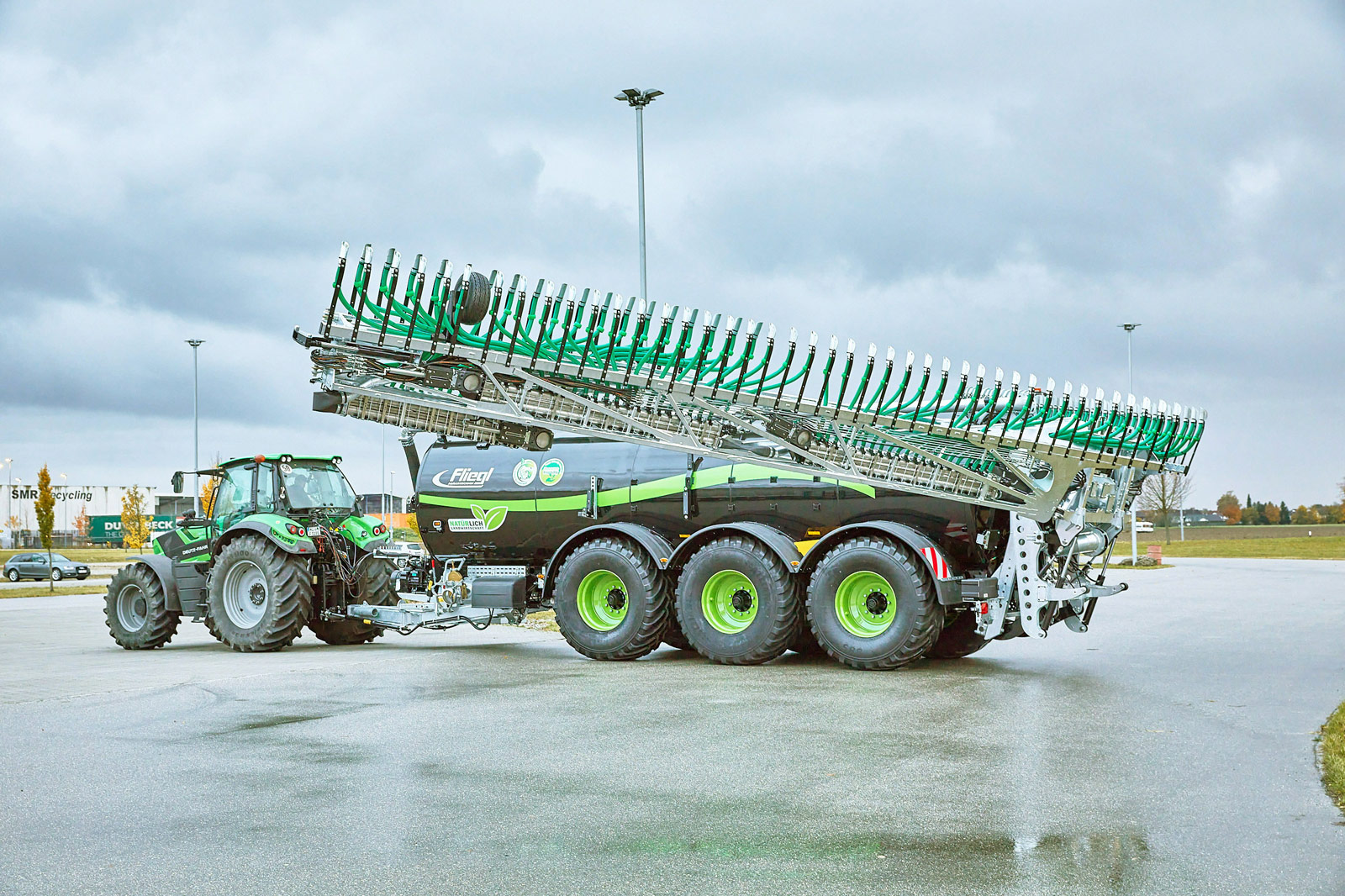

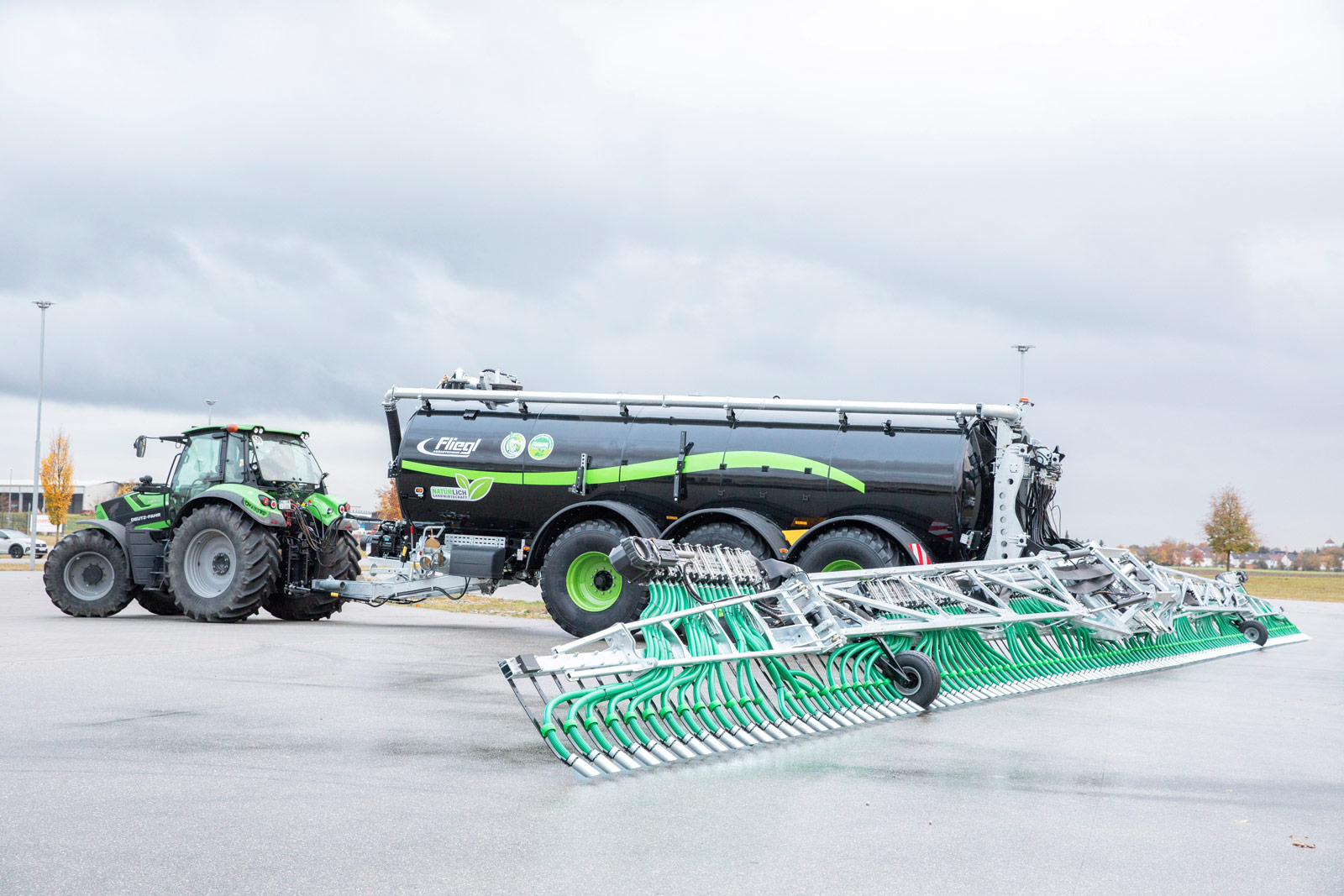

Vacuum tanker VFW 30000 Individual triple-axle with SKATEMASTER 300 trailing shoe spreader

PRODUCT INFO
directly to your phone

Permitted total weight 34,000 kg
Adjustable drawbar, bottom hitch with ball head K80
Drawbar suspension incl. tank tipping cylinder and supporting stand
2-circuit compressed air brake with ALB
Air suspension
Forced steering – 3 brake axles, front and rear steered, centre rigid
Axle series 410 x 180, brake drums BPW
40 km/h version with EC type approval and COC documents
Tyres 750/60 R 30.5
Container steel version, galvanised und painted outside black / RAL 9005 – Greenline
Hydraulic top-fill opening Ø=600mm with ladder: opening on right
MECII 13500 liter Battioni compressor max. 1000 rpm, heat-resistant fins with centrifugal pump (capacity during distribution up to 8500 liters/min)
Hydraulic compressor changeover
Foam separator with Silencer with oil separator for compressor
Hydraulic turbo filler under tank
Suction arm – elephant with hose extension, direction of travel right, Ø 200 mm, length 5000 mm, up to approx. 3 m suction depth, including control panel with joystick control and compressor switching
8″ suction slider with quick coupler, left
Fill level indicator
Four-point hydraulics: lifting force 4500 kg Cat. 3
Lubrication block on 2 lubrication points for triaxle chassis
Internal hydraulic agitator for optimal homogenization
5-fold control block with control panel: 5 x 13 l DW Load-Sensing
LED light package
Rear camera inkl. Display
Beacon light

Working width 30000mm
Transport width 3,000 mm
Special design for even force distribution during operation
Arrangement of struts on the boom in a spiral pattern

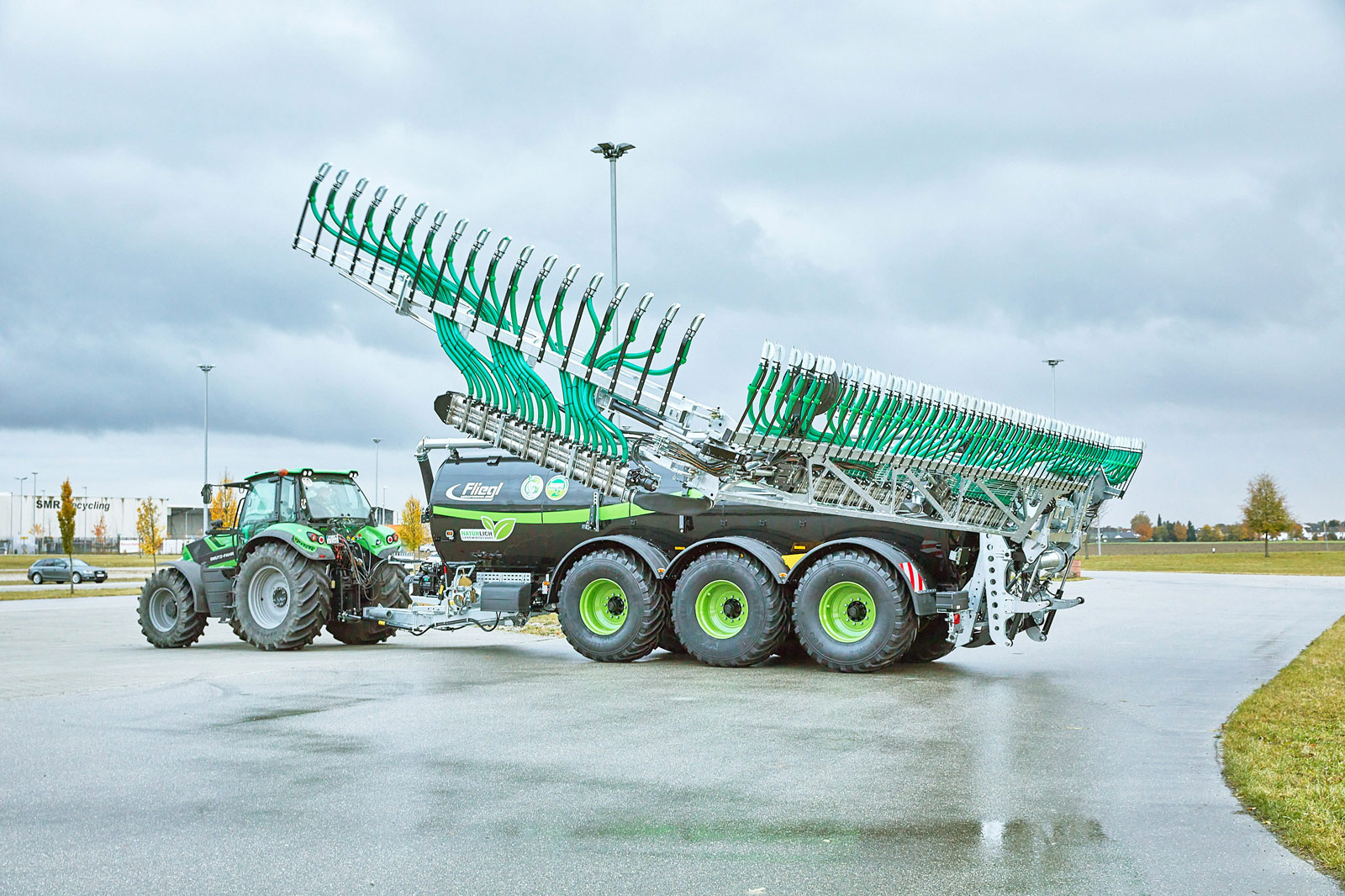

End of boom arms fold hydraulically to 21 m, incl. shut-off
Tidy, clean hose routing
Short outlet hoses ensure perfect placement at field edges (without a large “starting V”)
6 auger distributors with stainless steel auger troughs ensure effective foreign object separation
Outlet opening (bore) of the auger troughs is 15 mm
6 sections with hydraulic shut-off
250 mm hose spacing
Bolted injector shoes
Best ground adaptation through floating position function for the right and left booms
Comfort control, Load Sensing with control panel, automatic sequence control, and change in screw direction; distributor can also be operated via ISOBUS
Trap box, hydraulically opened – for foreign object removal
Pneumatic gauge wheels
New oil motor mounting
