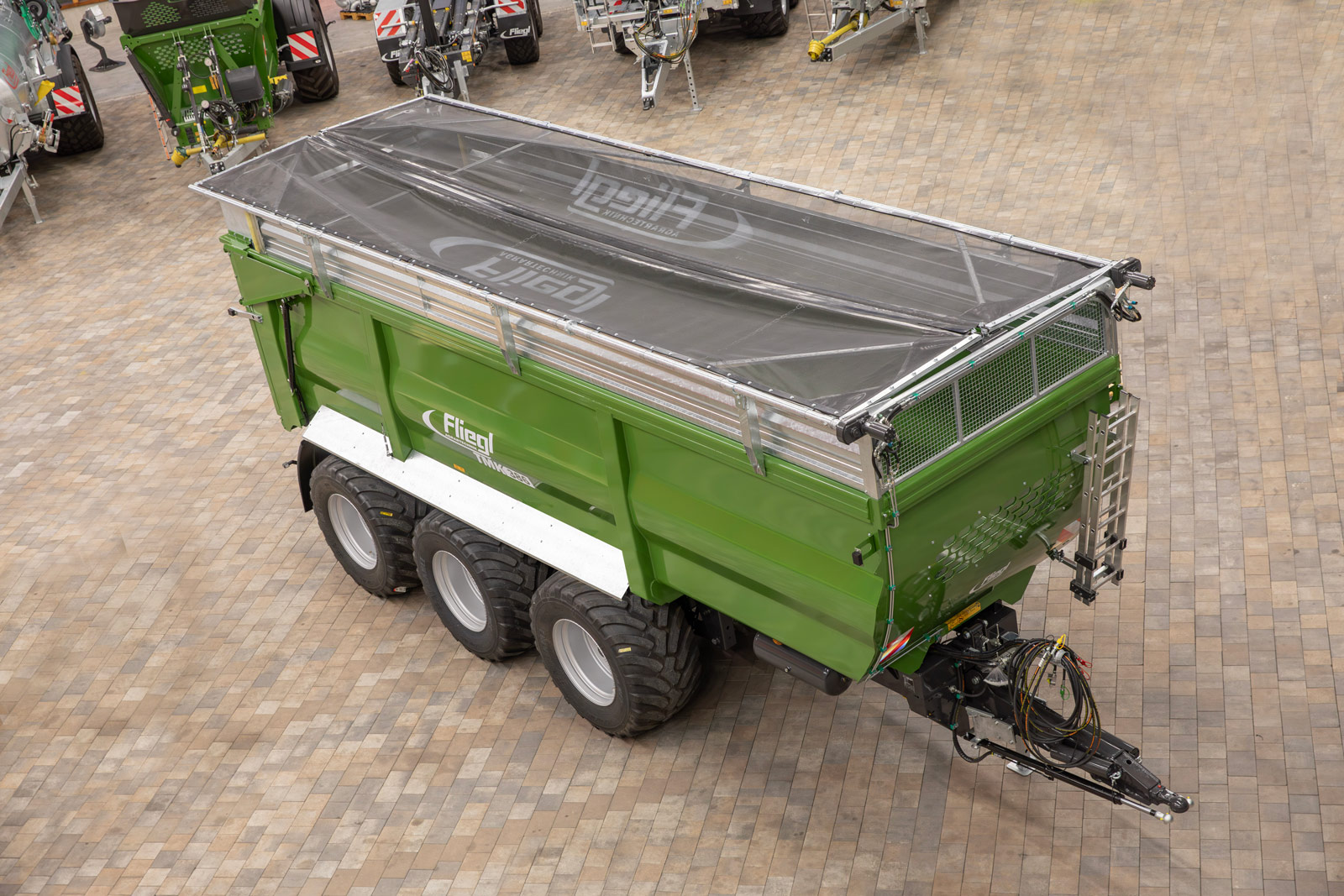

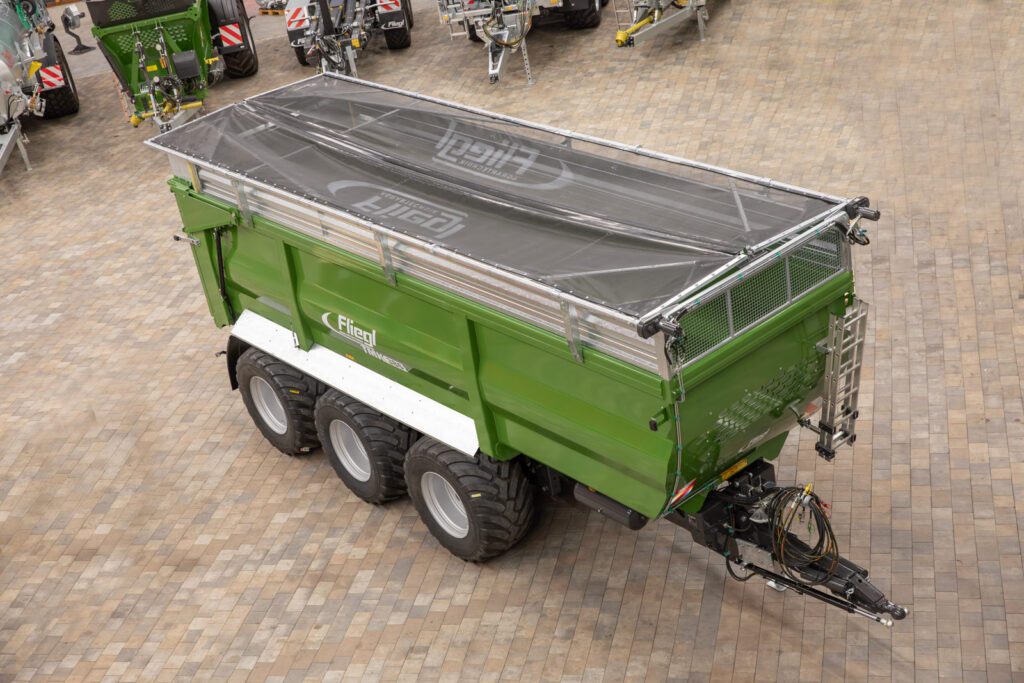

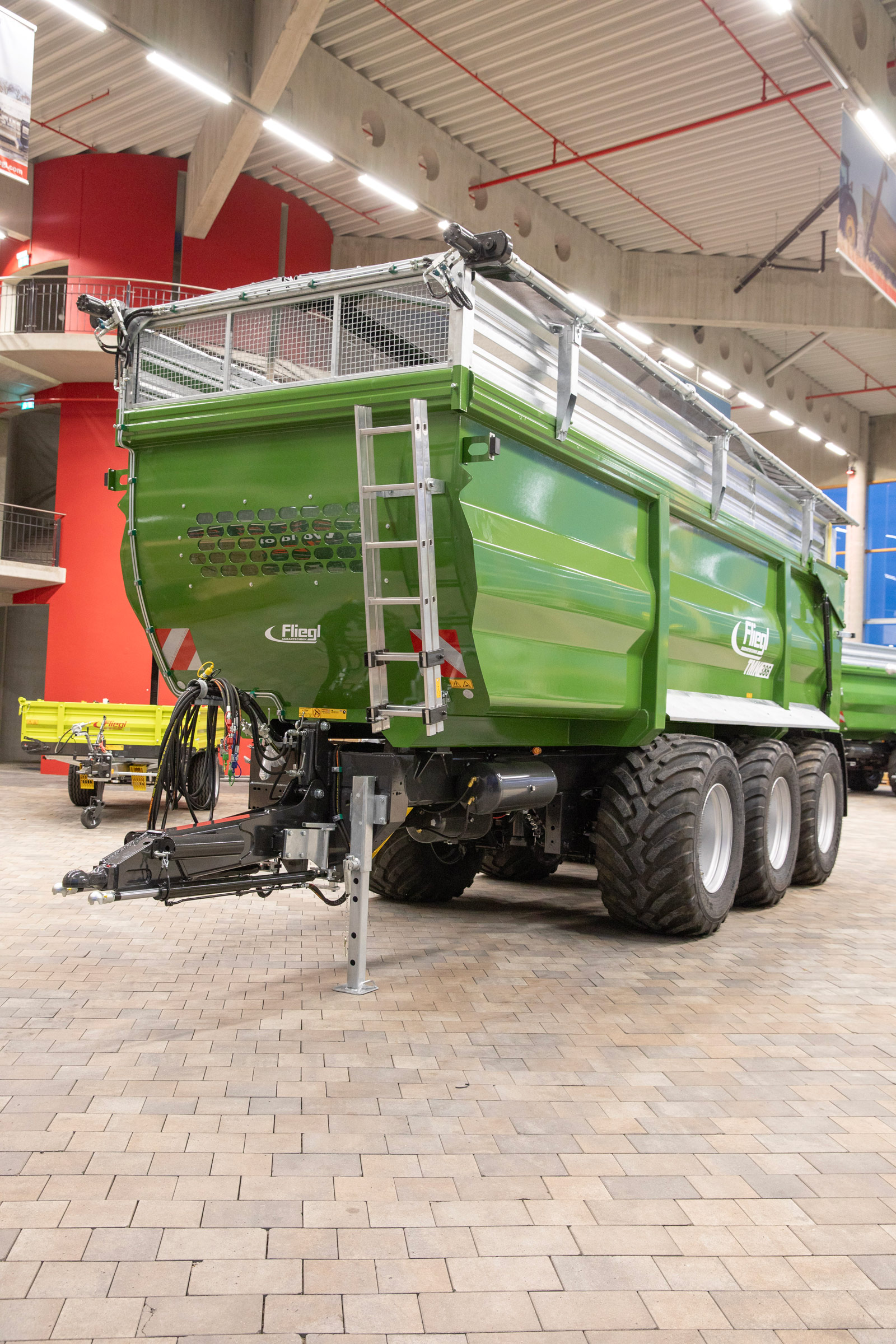

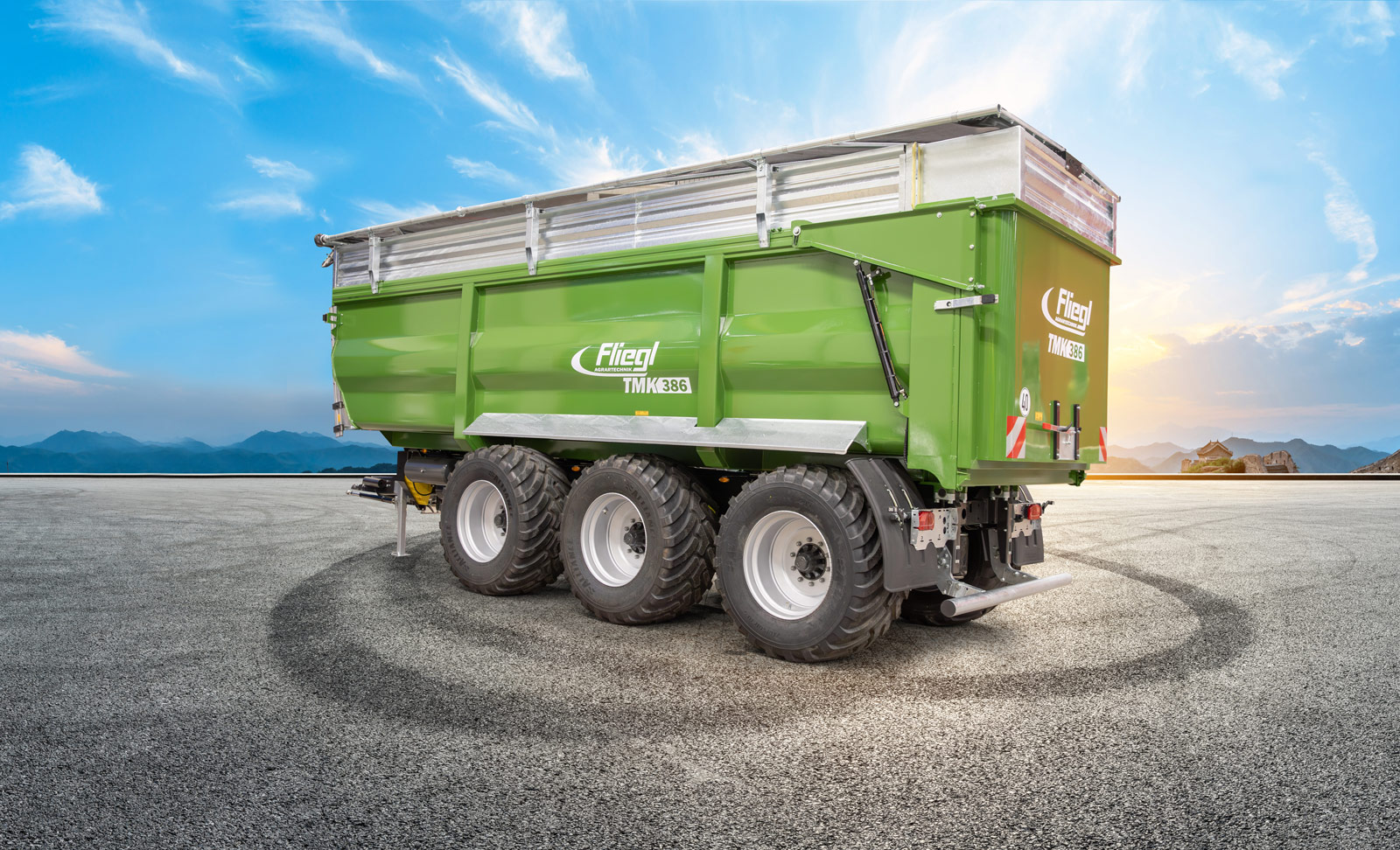

Tridem dumper TMK 386 PROFI FOX
PRODUCT INFO
directly to your phone
- Triaxle chassis
- Approx. 46 m³ volume
- Permitted total weight 34,000 kg
- Profi chassis-frame painted
- Body 8600 mm x 2320/2220 mm x 1750 mm (conical)
- Hydraulic large-volume tailgate 300 mm large area
- Air suspension with automatic tilt lowering
- hydraulic suspension with automatic tilt stabilization
- continuous compact hydraulically suspended drawbar for bottom hitching, Trailer height conveniently adjustable according to requirements, with round shaft towing hitch
- Ball head K80 (Ø 80 mm)
- Axle series 410 x 180, brake drums
- Forced steering – 3 brake axles, front and rear steered, centre rigid,
- 2-circuit compressed air brake with ALB
- tyres 710/50 R 30.5
- 40 km/h version with TÜV data sheet Germany
- Clearance lights
- Side marker lights
- Supporting foot, hydraulic
- Tipping cylinder 4185 mm stroke (approx. 50 l oil required)
- 12 V LED
- Body extension 500 mm
- hydraulic folding roof TopLift light conical: with net cover
