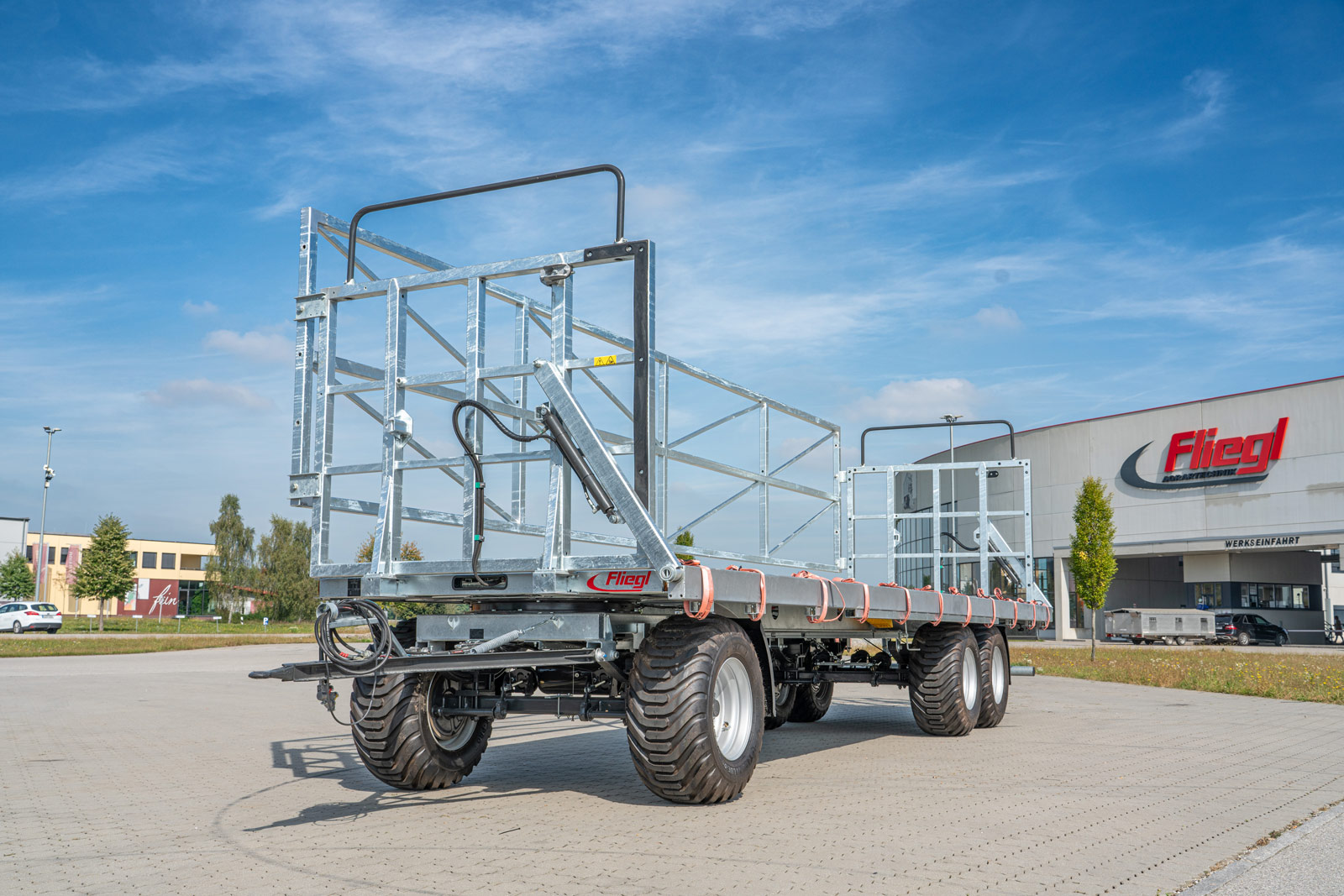

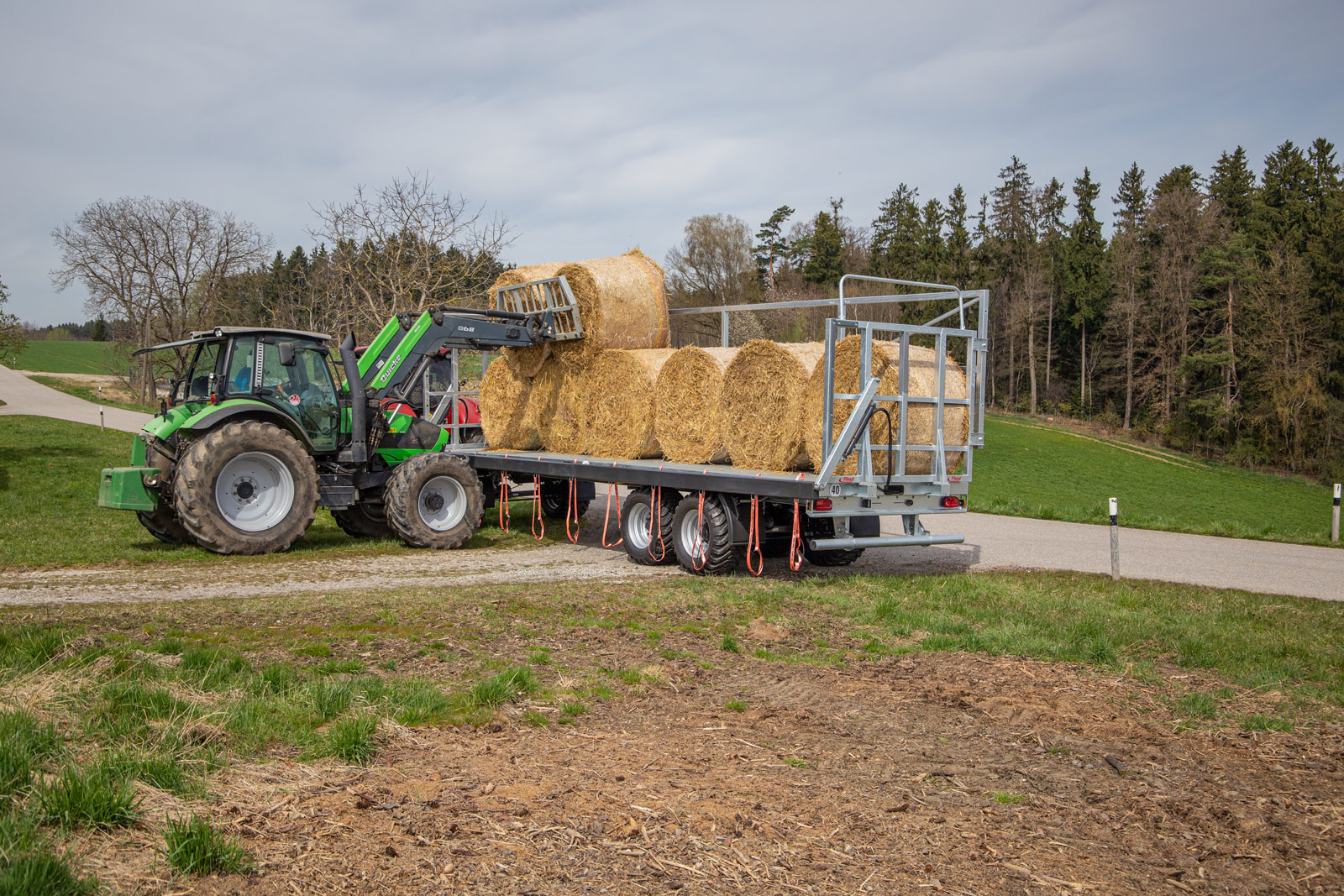

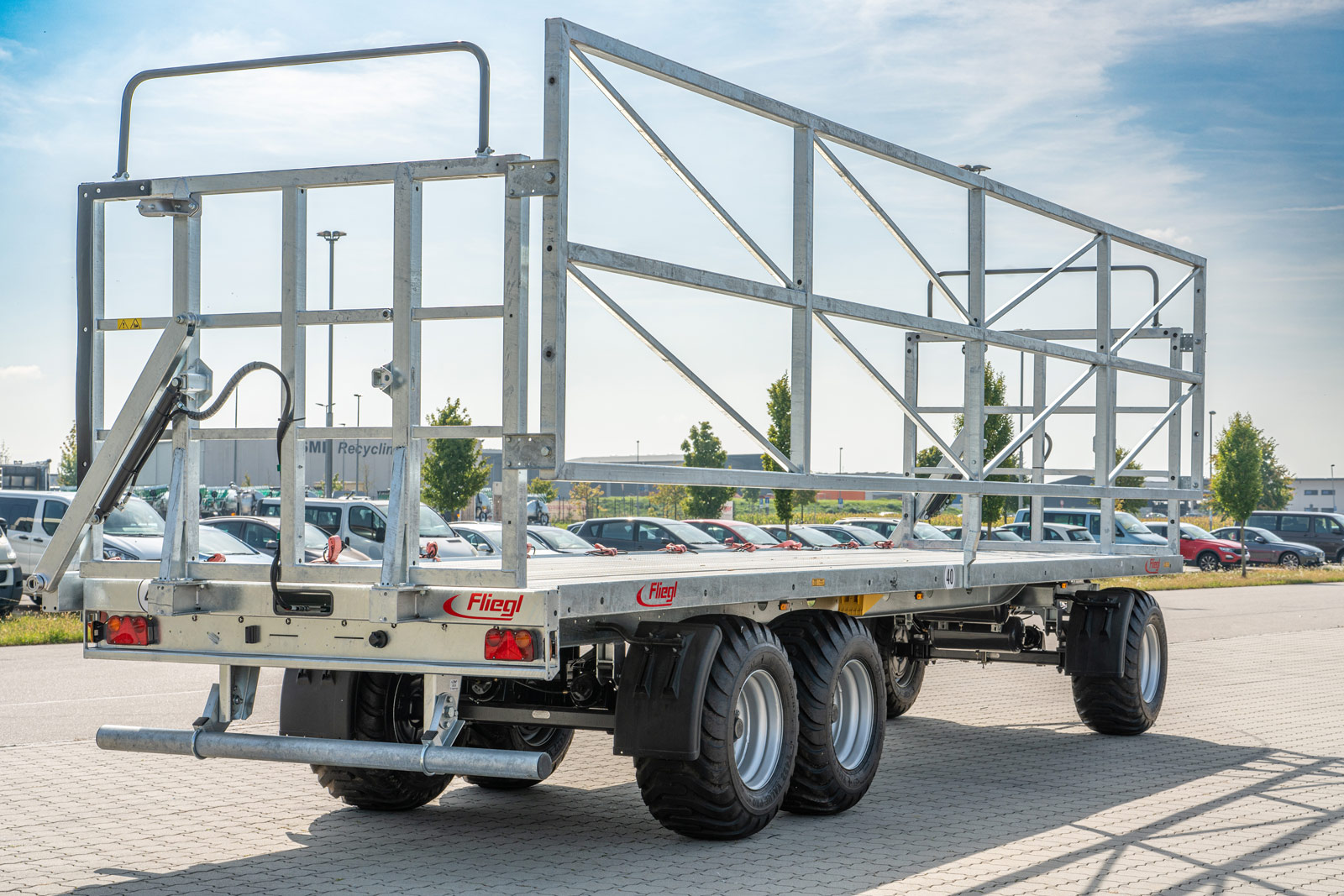

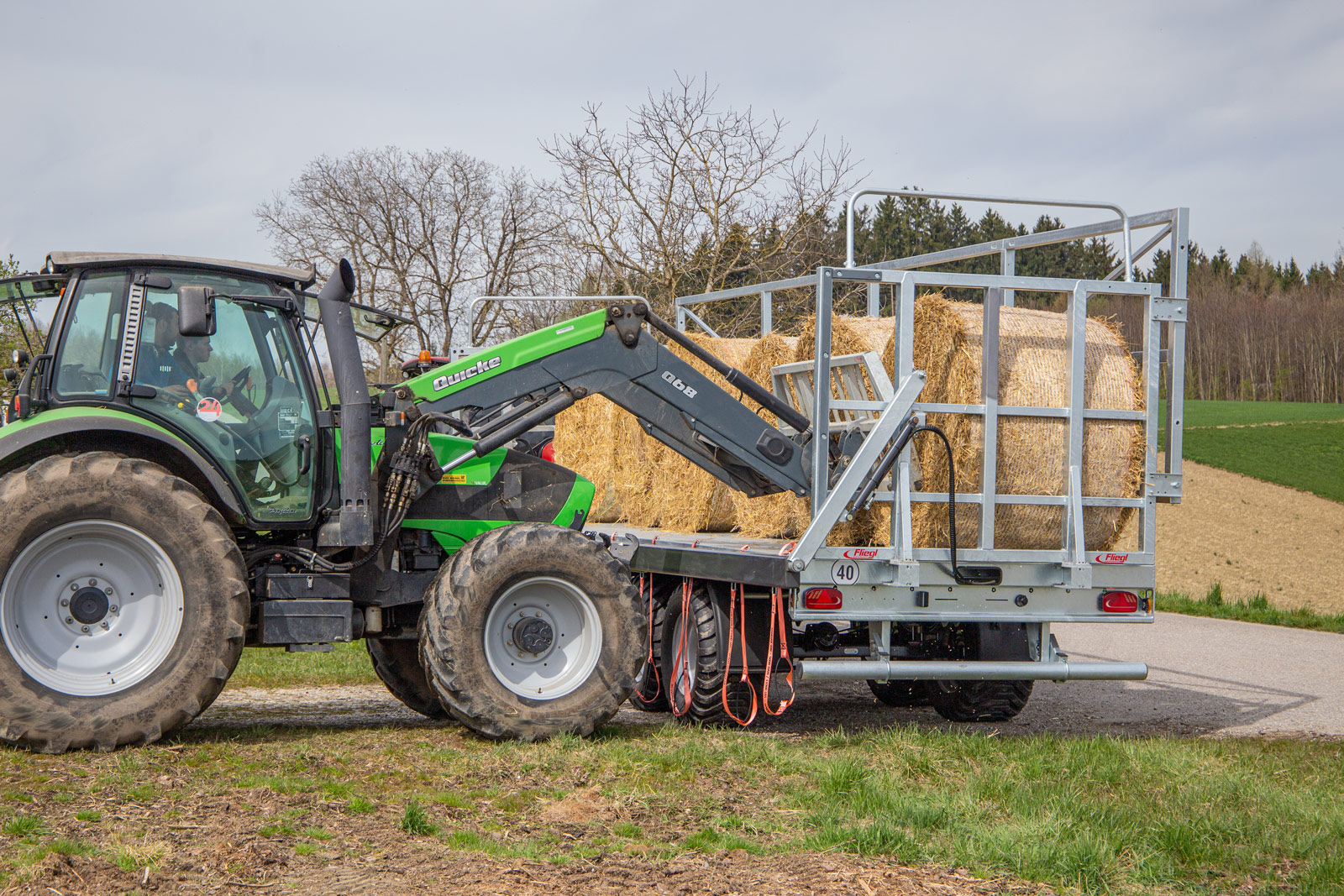

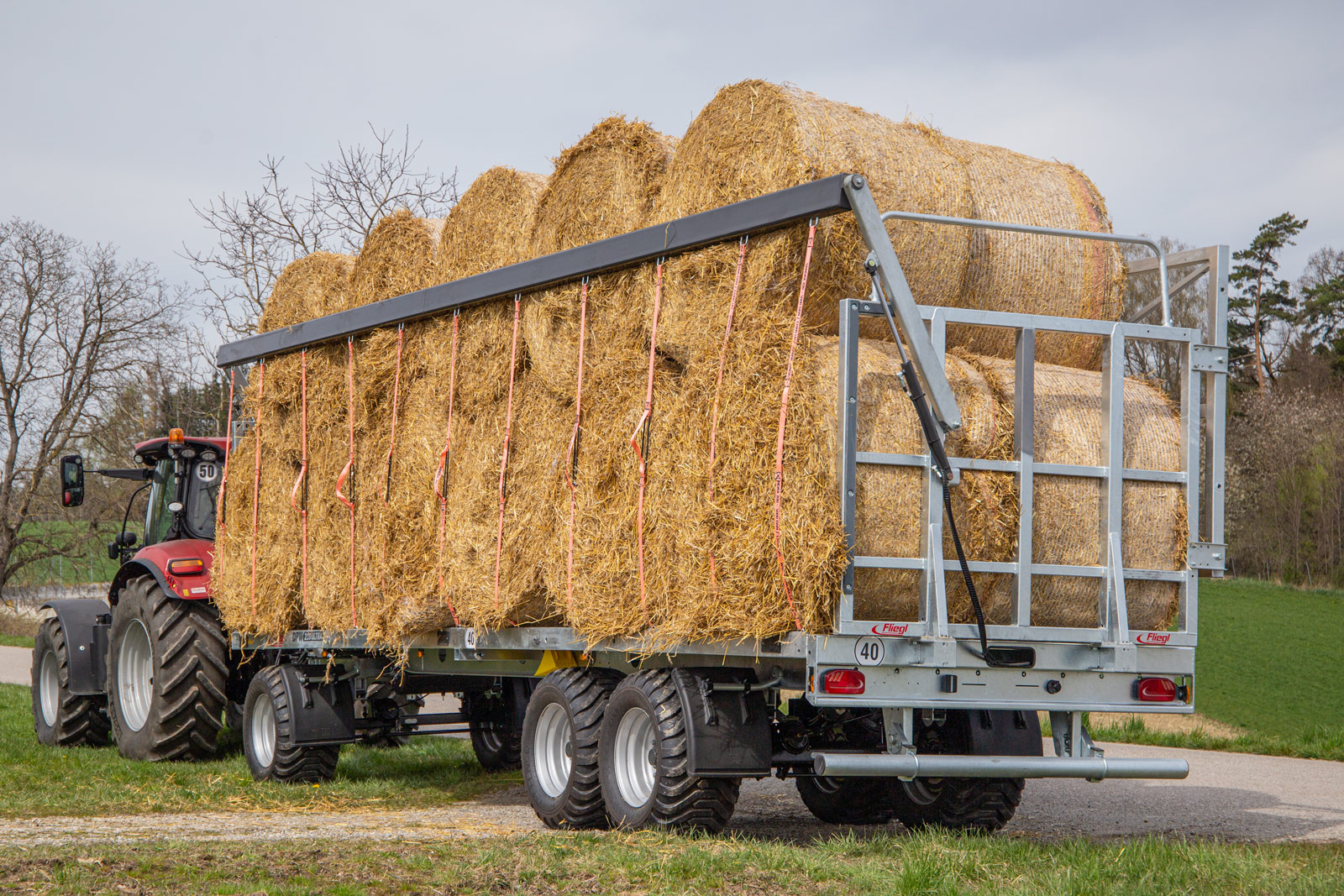

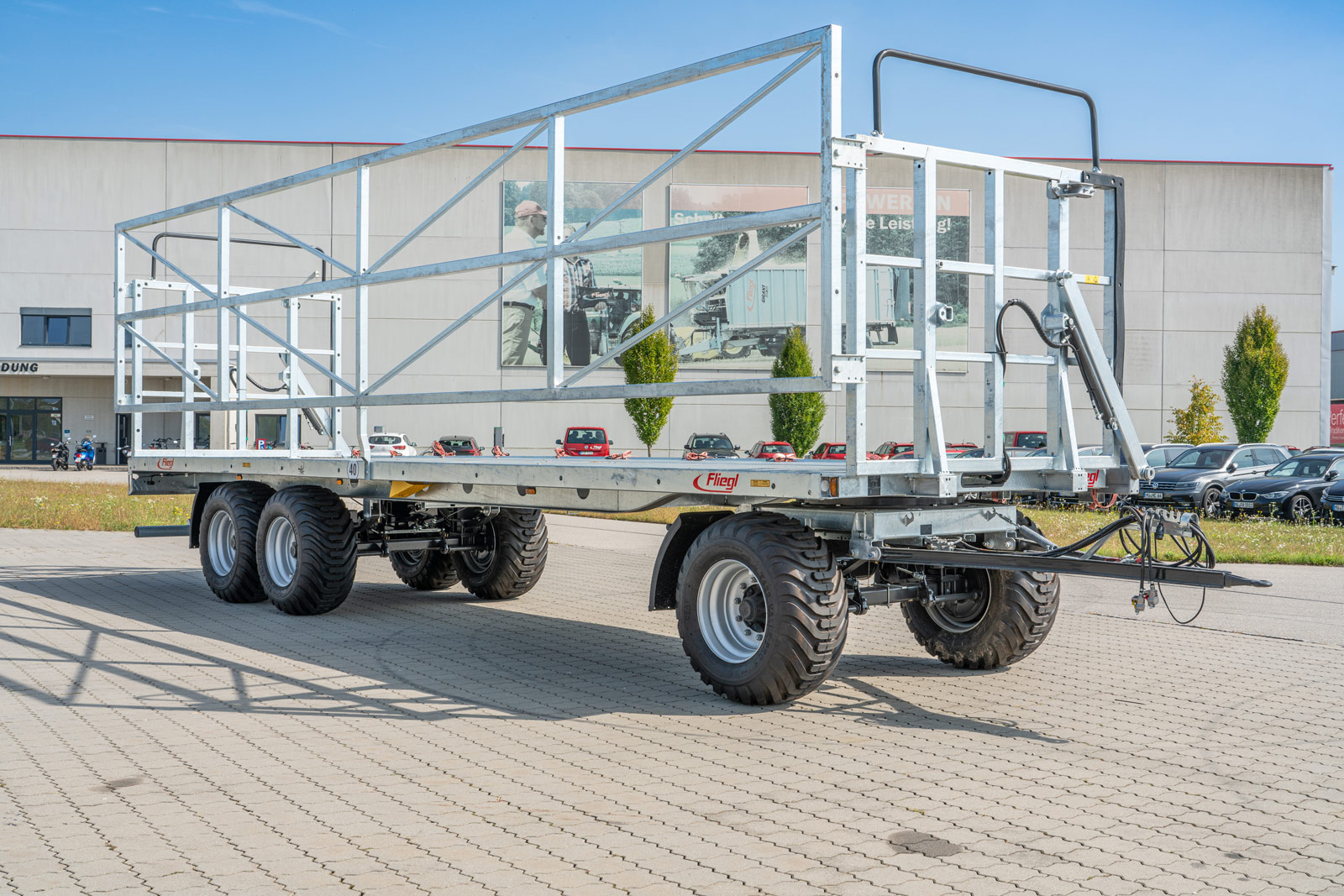

Tridem bale transport trailer DPW 210 BL Ultra with load securing and Tandem hook-lift HKL 22
PRODUCT INFO
directly to your phone
- Triaxle chassis
- Y-drawbar
- Total loaded vehicle weight: 21000 kg
- Load securing on the right, can be folded down hydraulically
- Frame galvanised
- Side-integrated lashing points in the profile
- Bridge 9900 mm x 2480 mm with an integrated pallet stop
- Floor made of galvanised steel sheet 3.5 mm
- 40 km/h version with EC type approval and COC documents
- Tyres 550/45-22.5
- Parabolic suspension
- 12 V LED lighting with 7-pin connector
- Stowage box mounted under the loading surface
- Clearance lights, rear (white/red)

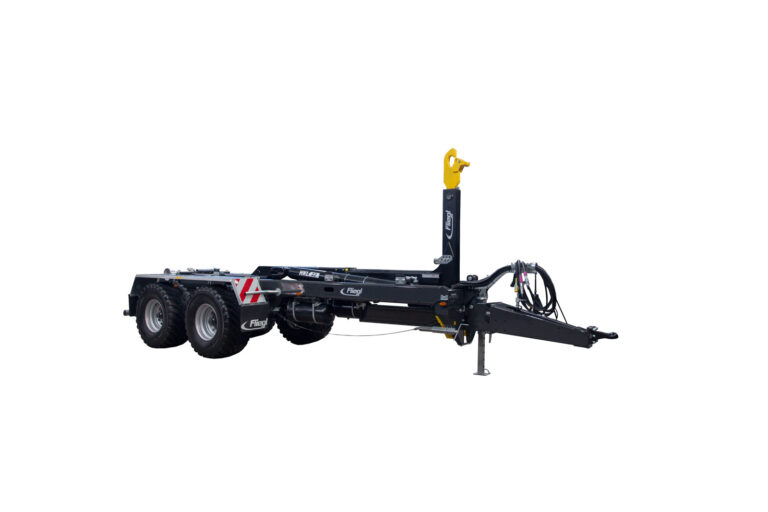

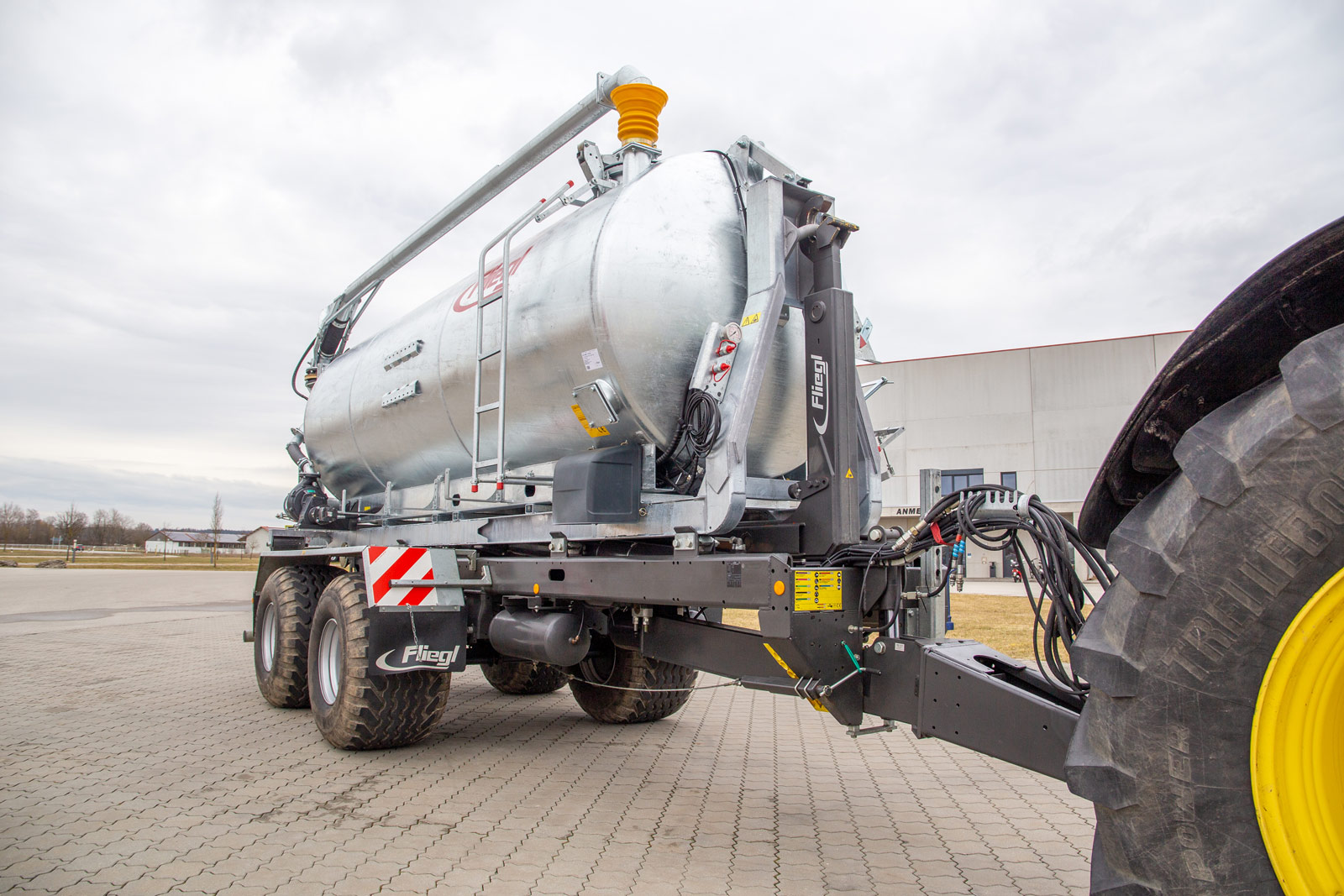

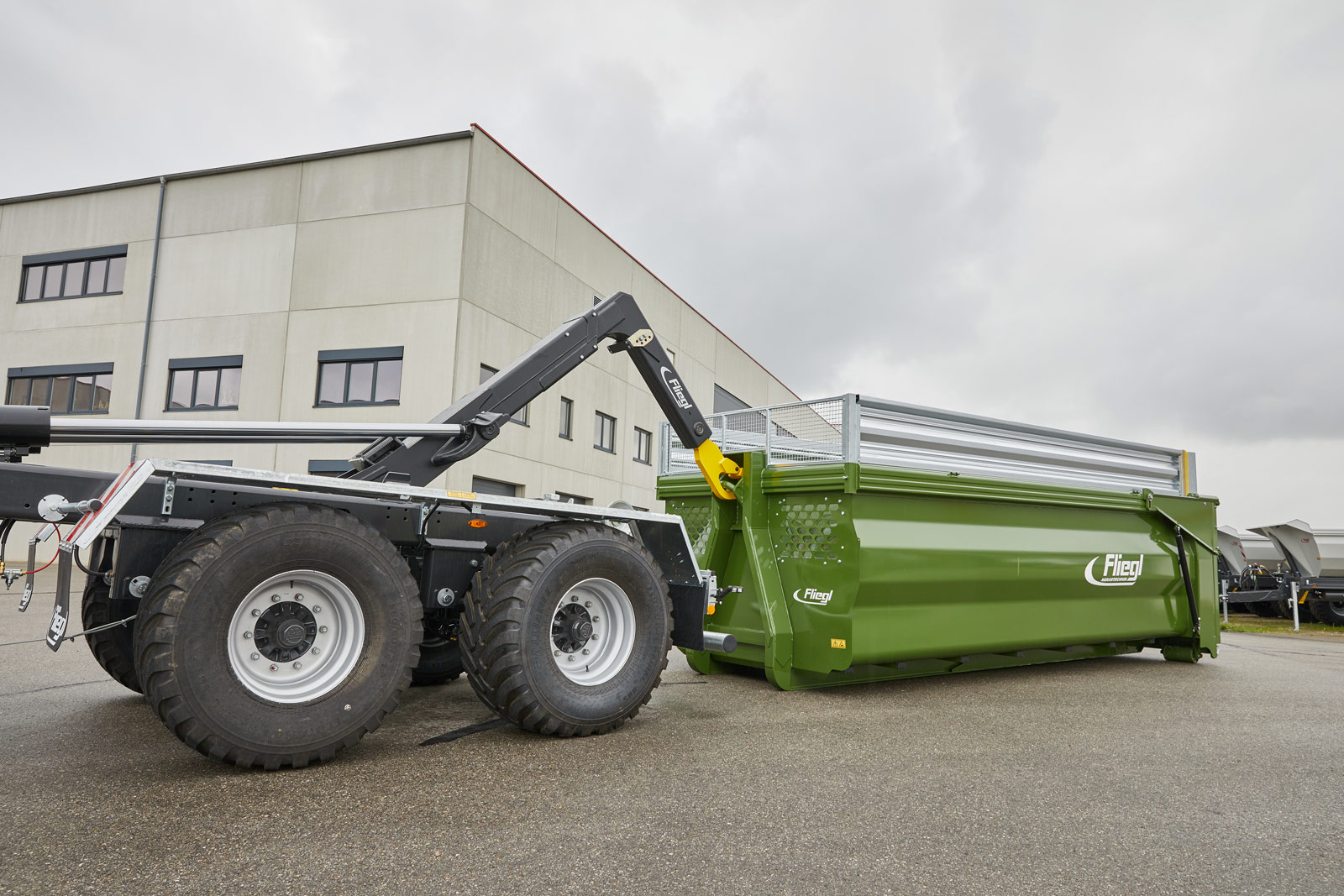

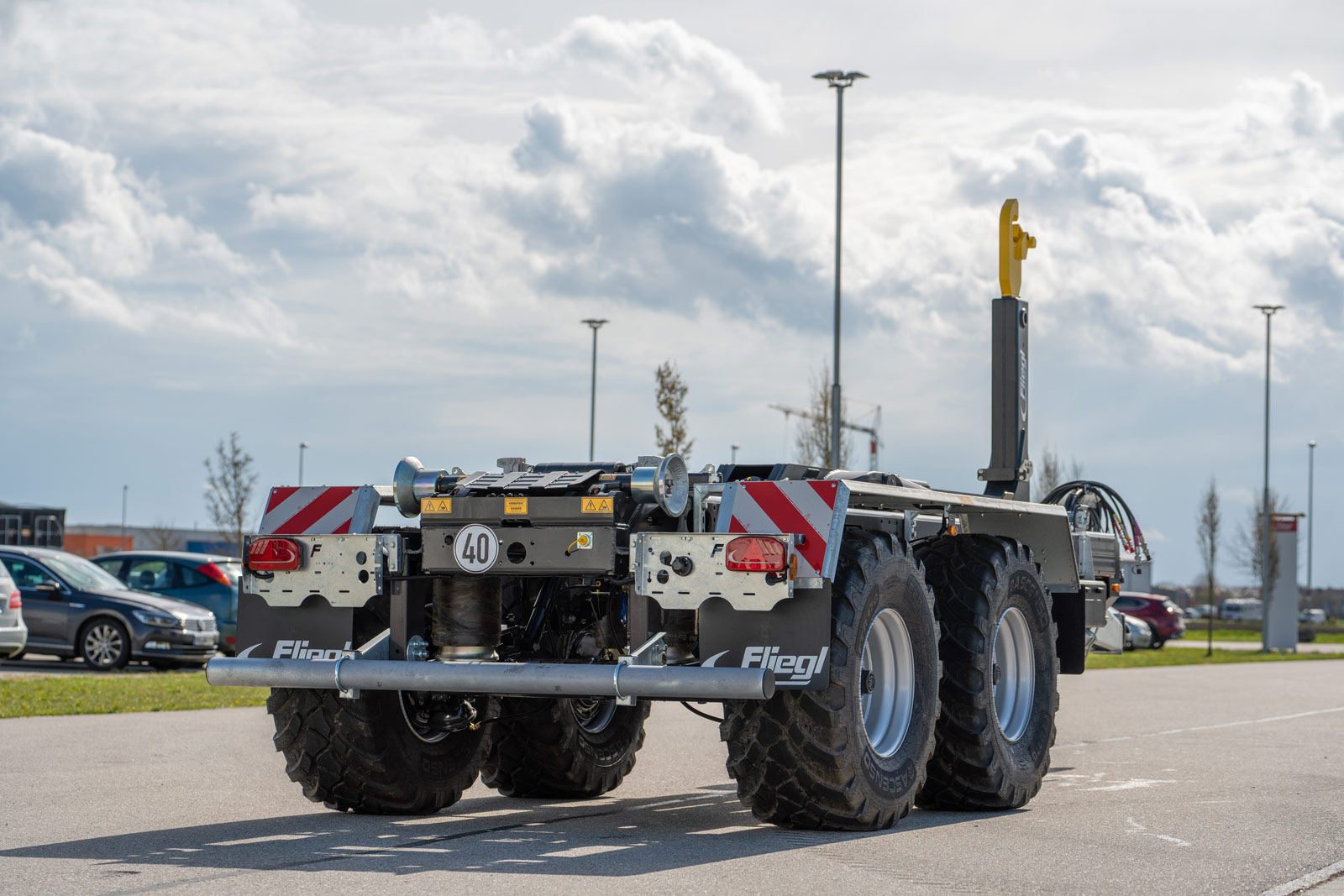

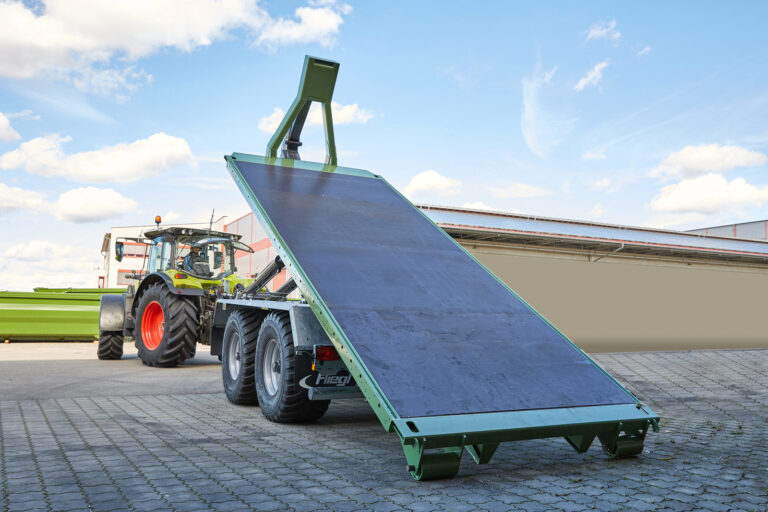

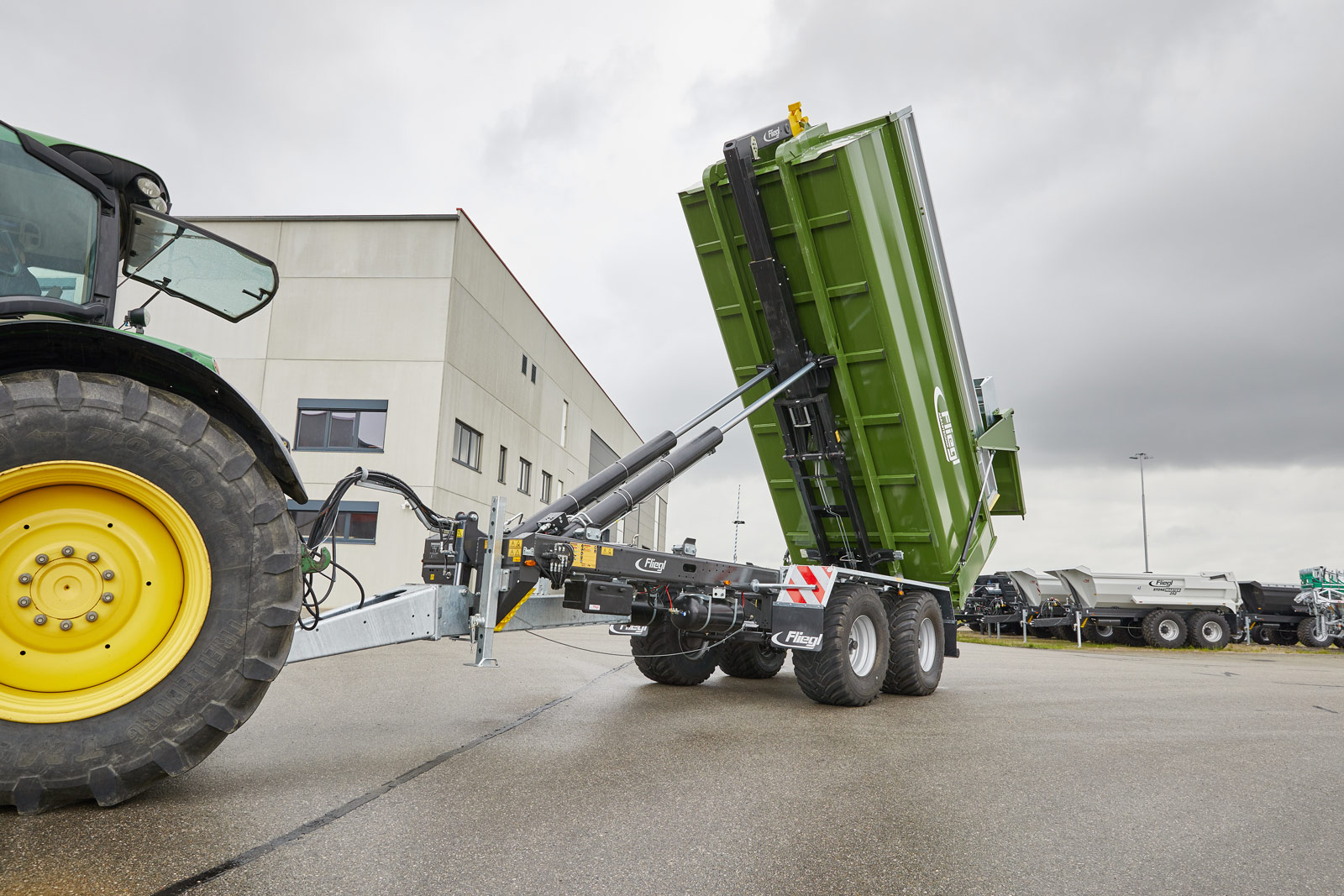

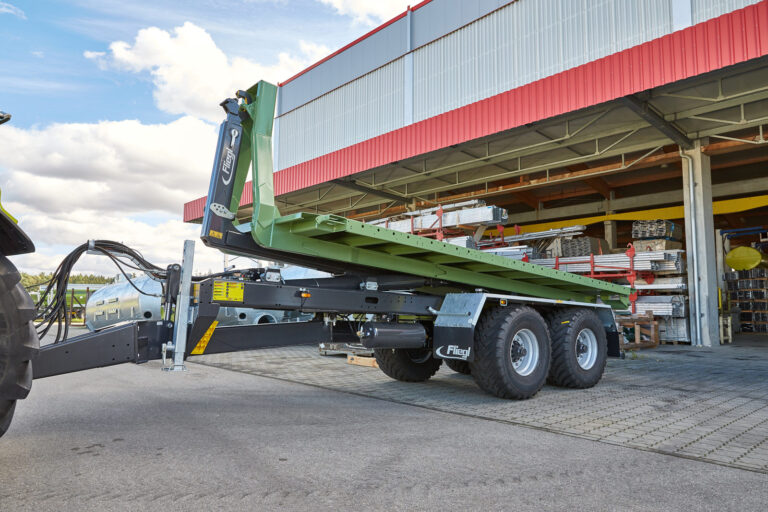

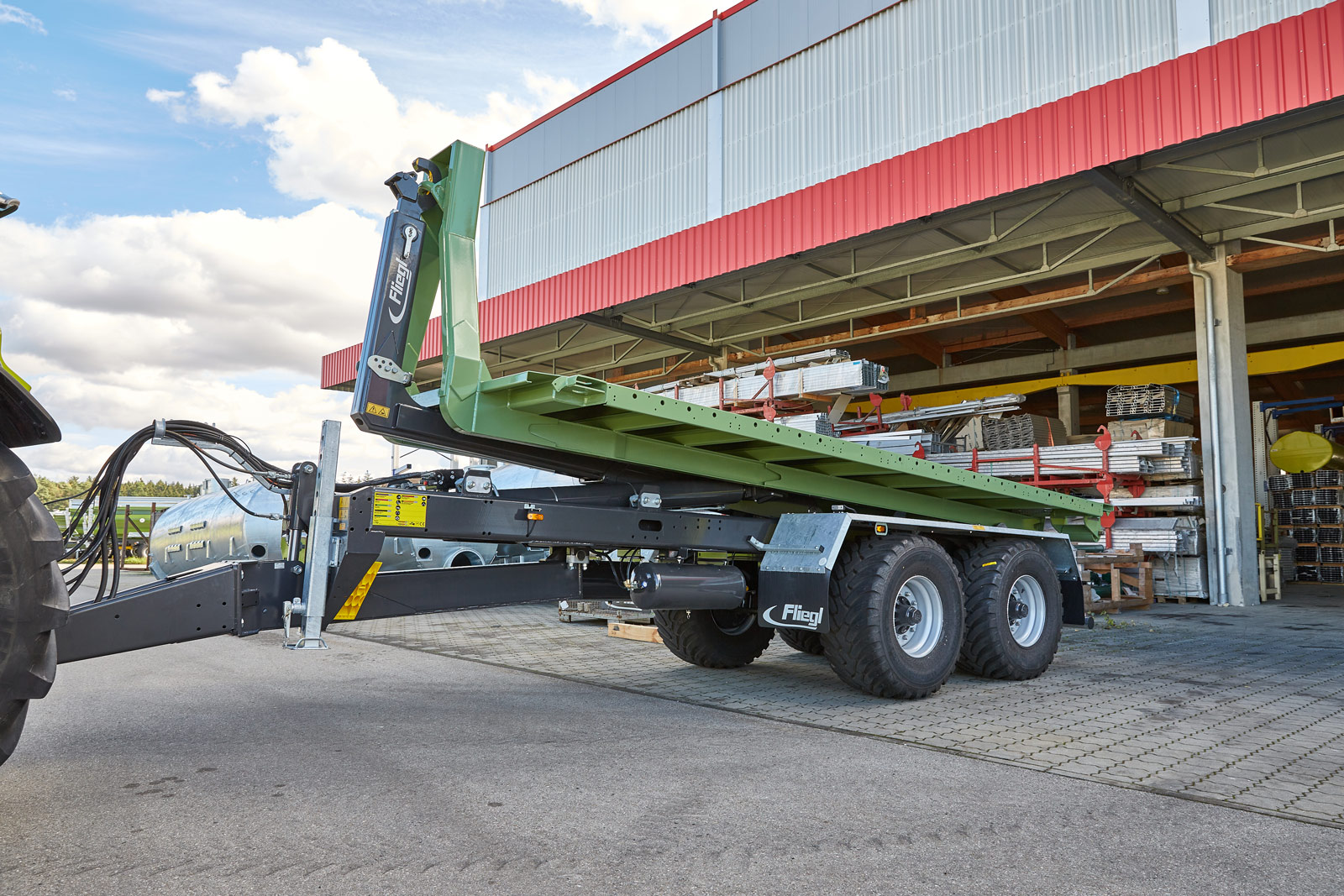

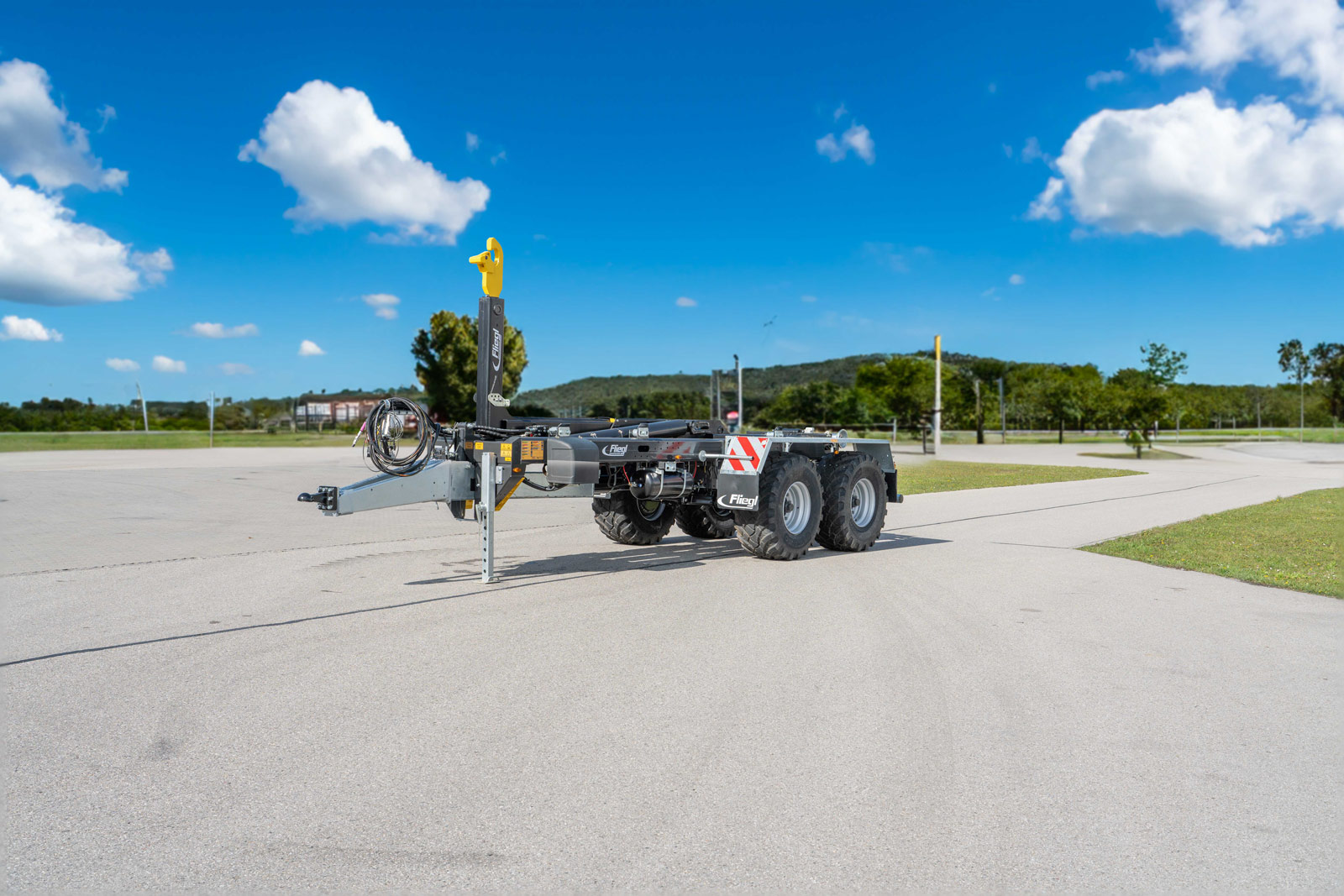

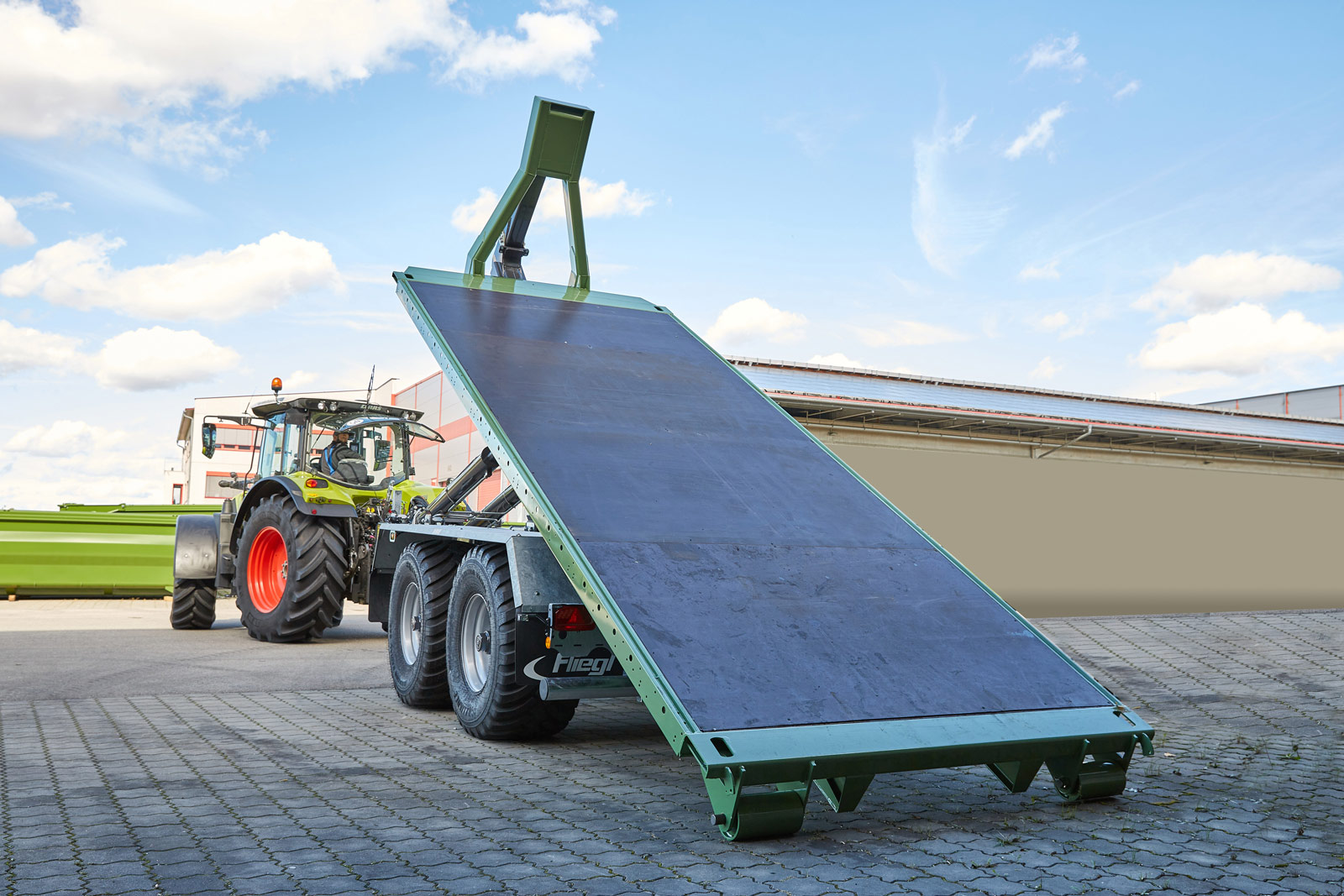

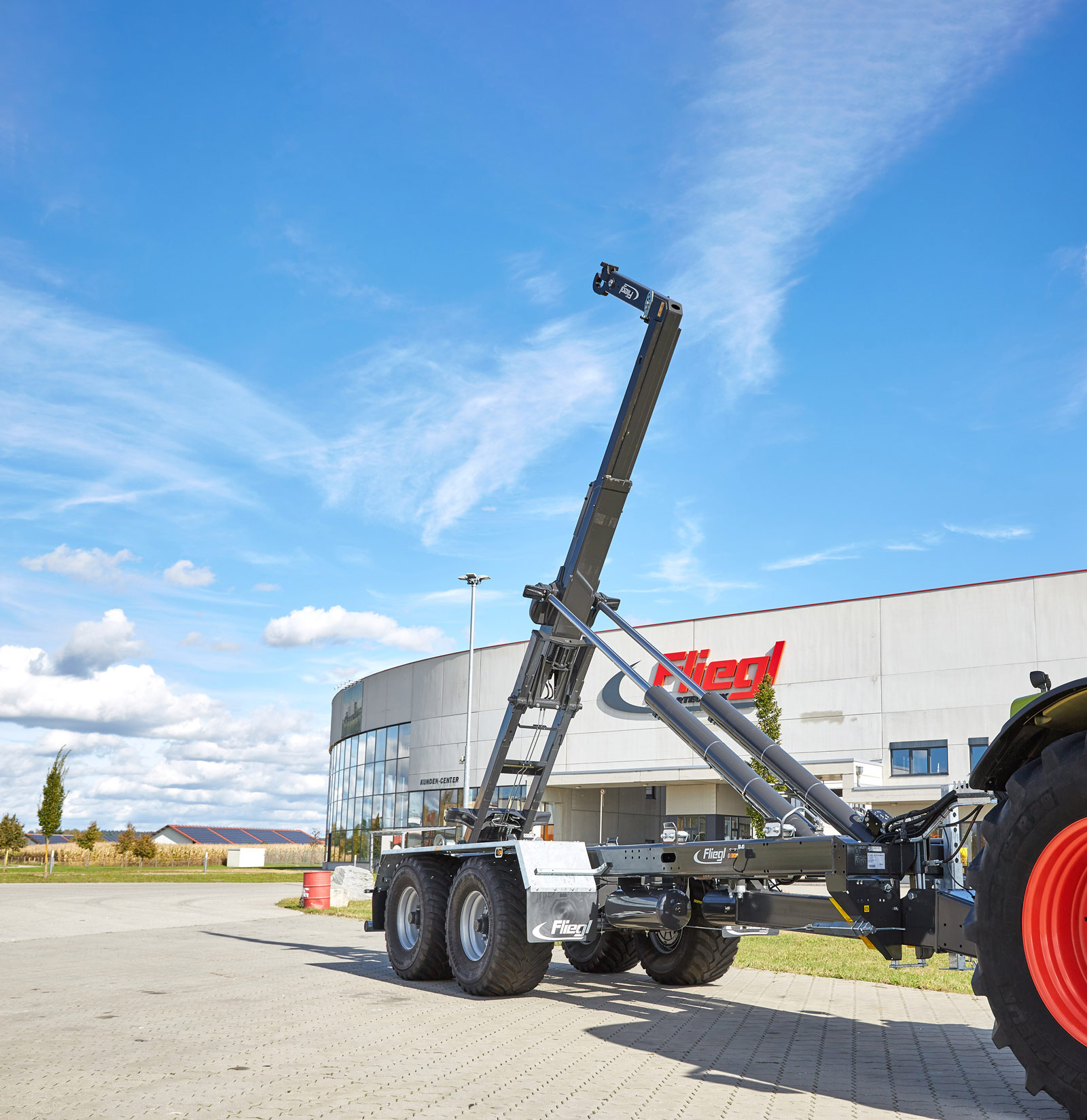

Tandem hook-lift HKL 22
- Tandem chassis
- Hook lift: hydr. hydr. telescoping hook arm
- container length 4500 to 7050 mm
- hook height 1570 mm
- hook mounting according to DIN 30 722-1
- Permitted total weight 22000 kg
- Drawbar with hydraulic suspension, swivelling for bottom hitch
- Ball head K80 (Ø 80 mm)
- 2-circuit compressed air brake with ALB
- Air suspension with automatic tipper lowering
- 2 brake axles, front rigid, rear steered, hydraulically lockable
- Axle version 410 x 120, brake drums BPW
- Tyres 560/60 R 22.5
- 40 km/h version with EC type approval and COC documents
- Double changeover valve with control panel, 3 x 13 l
- 12 V LED lighting
- Hydraulic line for 2nd trailer
