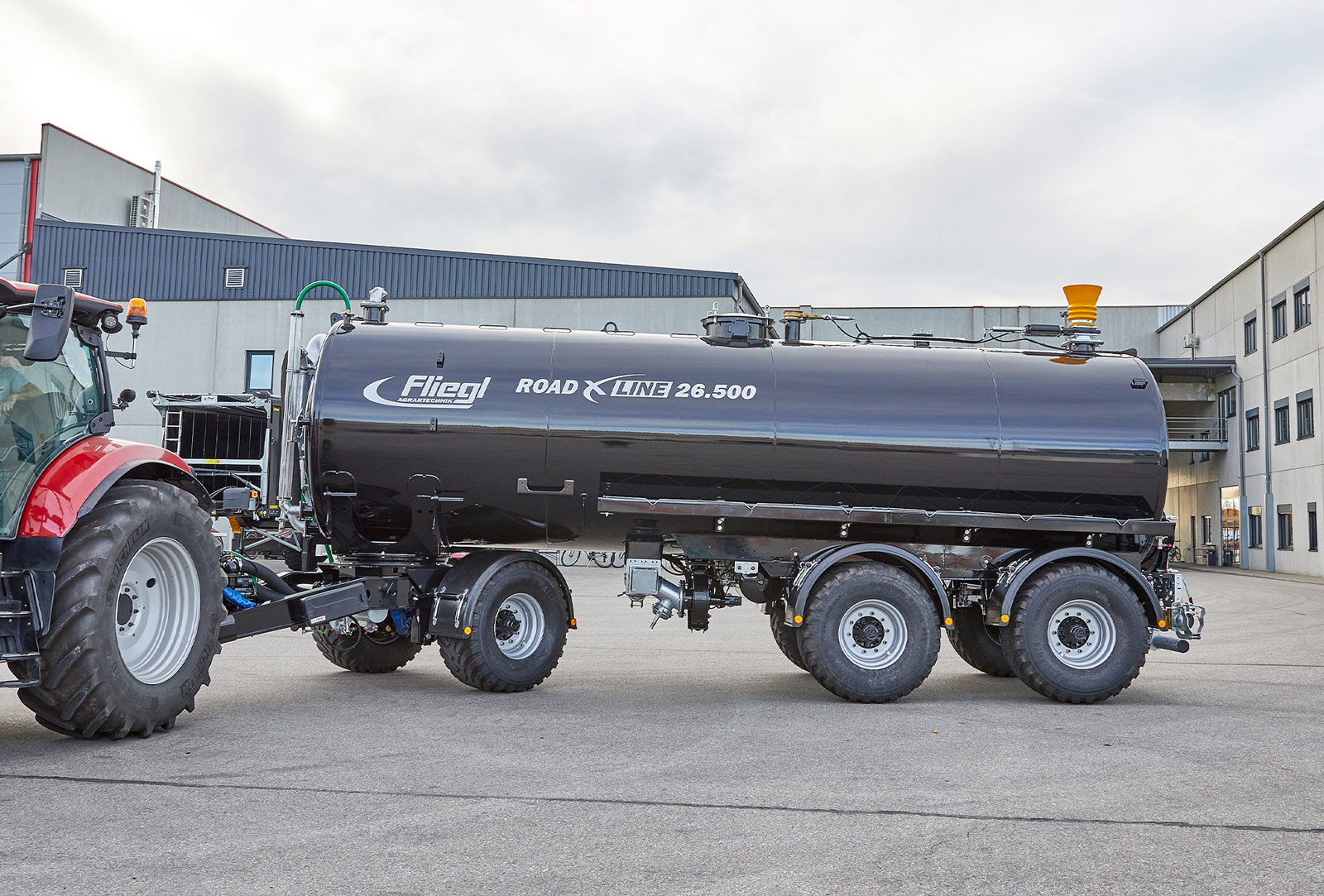

Transport tanker TFW 26500 Road X Line three-axle
PRODUCT INFO
directly to your phone
- perm. total weight 33000 kg
- Turntable with load-bearing transfer
- Drawbar rigid, bottom hitch with Ball head K80 (Ø 80 mm)
- Supporting foot, hydraulic
- 2-circuit compressed air brake with ALB
- air suspension
- Axle series 410 x 180, brake drums
- 40 km/h version
- Tyres 560/60 R22,5
- container in steel design coated inside and painted black outside
- Pre-fitting for hydraulic top-fill opening Ø=600mm
- Fill level indicator with 100 mm Plexiglas in front
- Vacuum version incl. 13000 l Battioni compressor, heat-resistant
- Silencer with oil separator for compressor
- Foam separator
- Hydraulic turbo-filler under the tank
- Suction nozzle 8″ with docking station, right in direction of travel
- 6″ suction slider with Perrot quick coupler, right
- 6″ quick coupler with manual slide valve at rear, 130° swivel function
- Docking with riser pipe, 200 mm rubber funnel
- 5-way control block with control panel: 5 x 13 l DA load sensing
- LED Lightning
