Tipper EDK 25, EDK 60 and TDK 140
PRODUCT INFO
directly to your phone

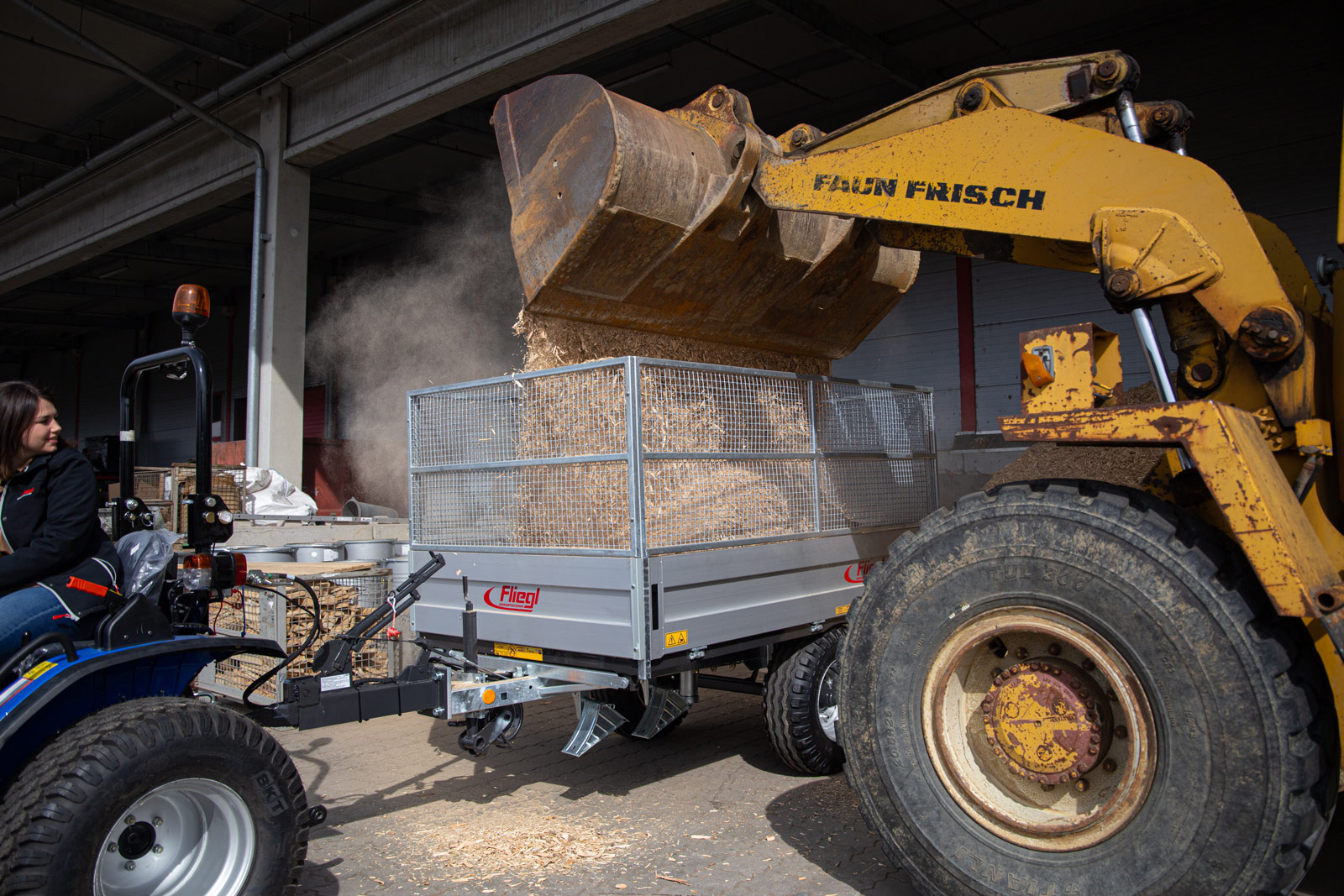

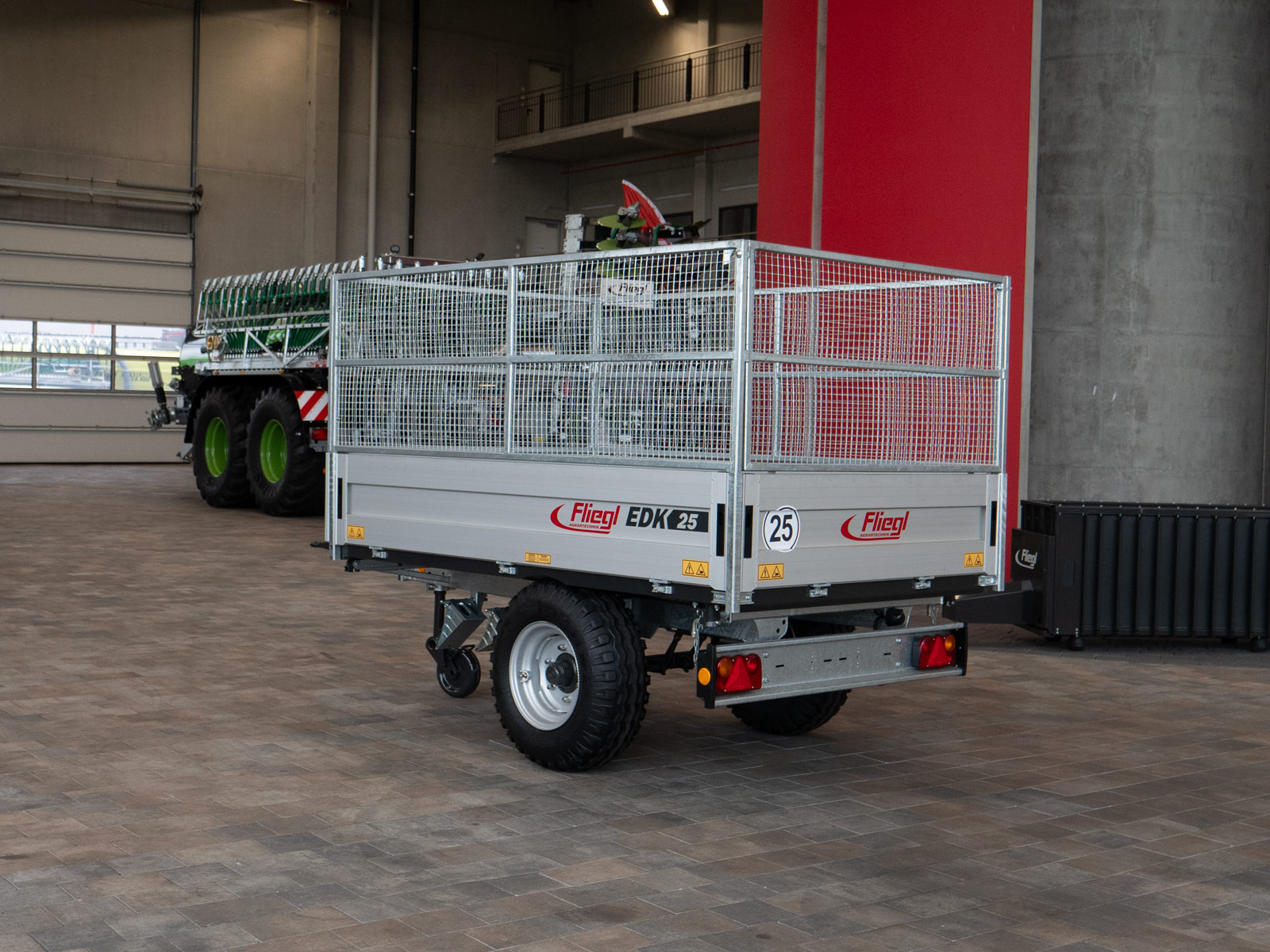

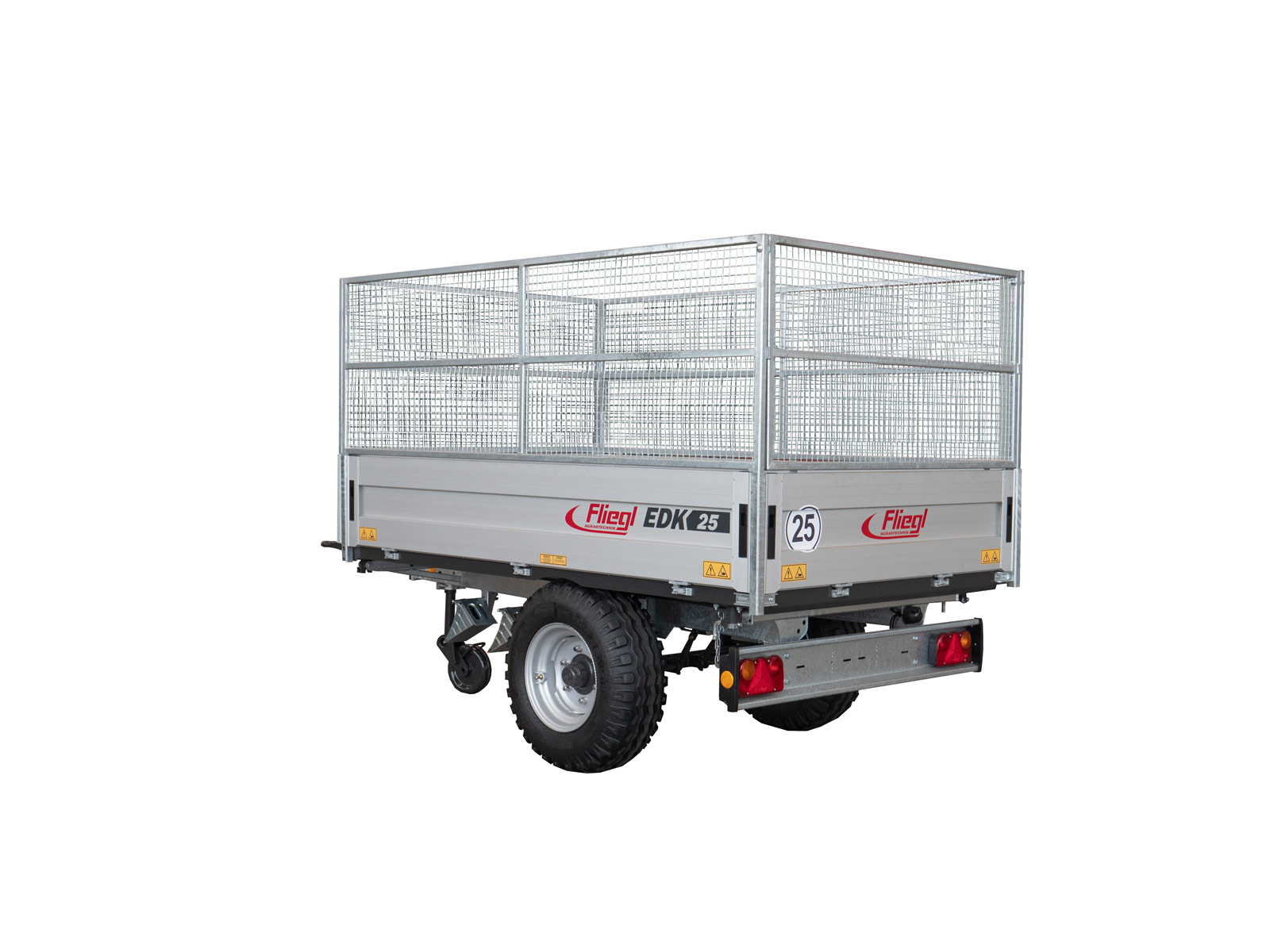

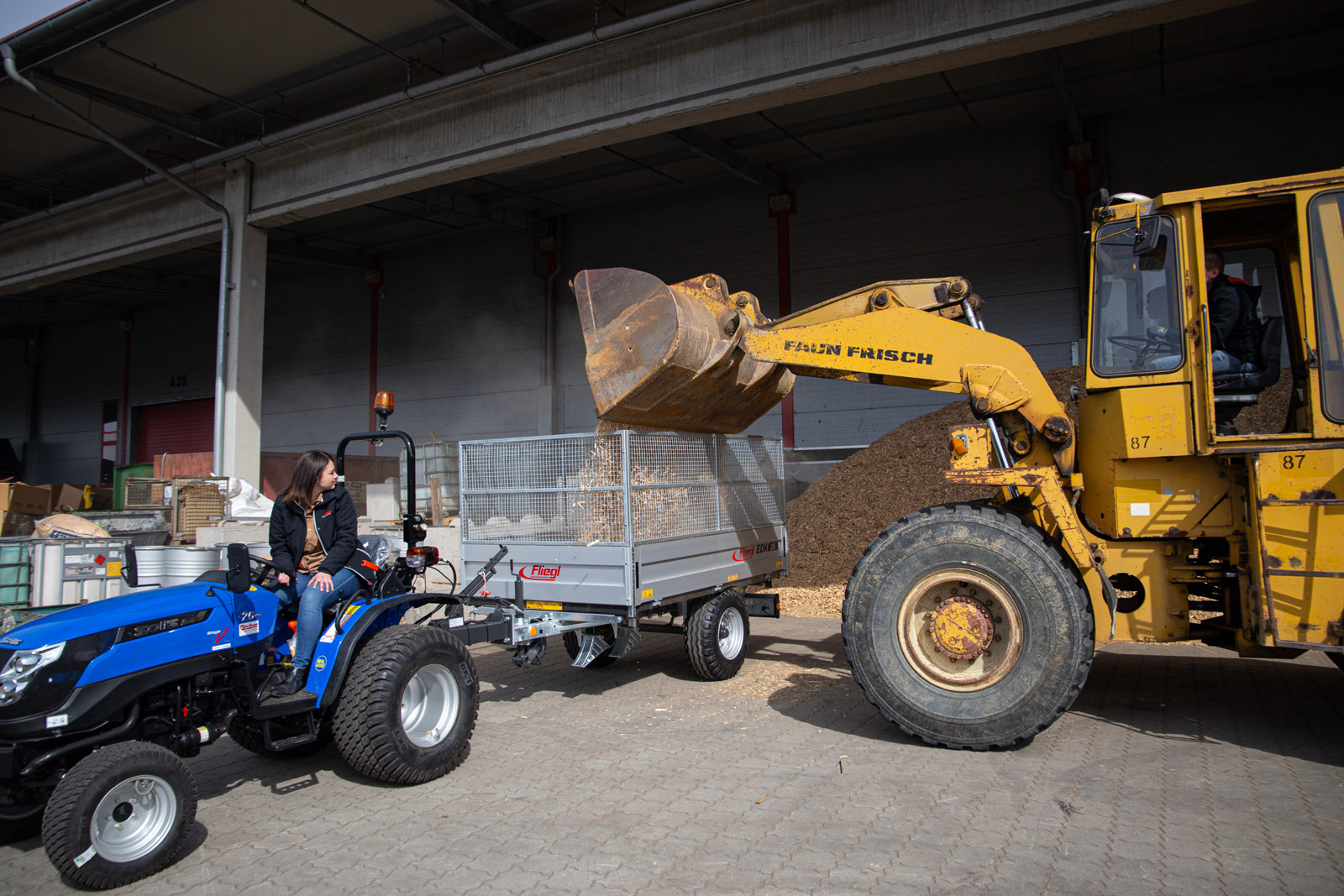

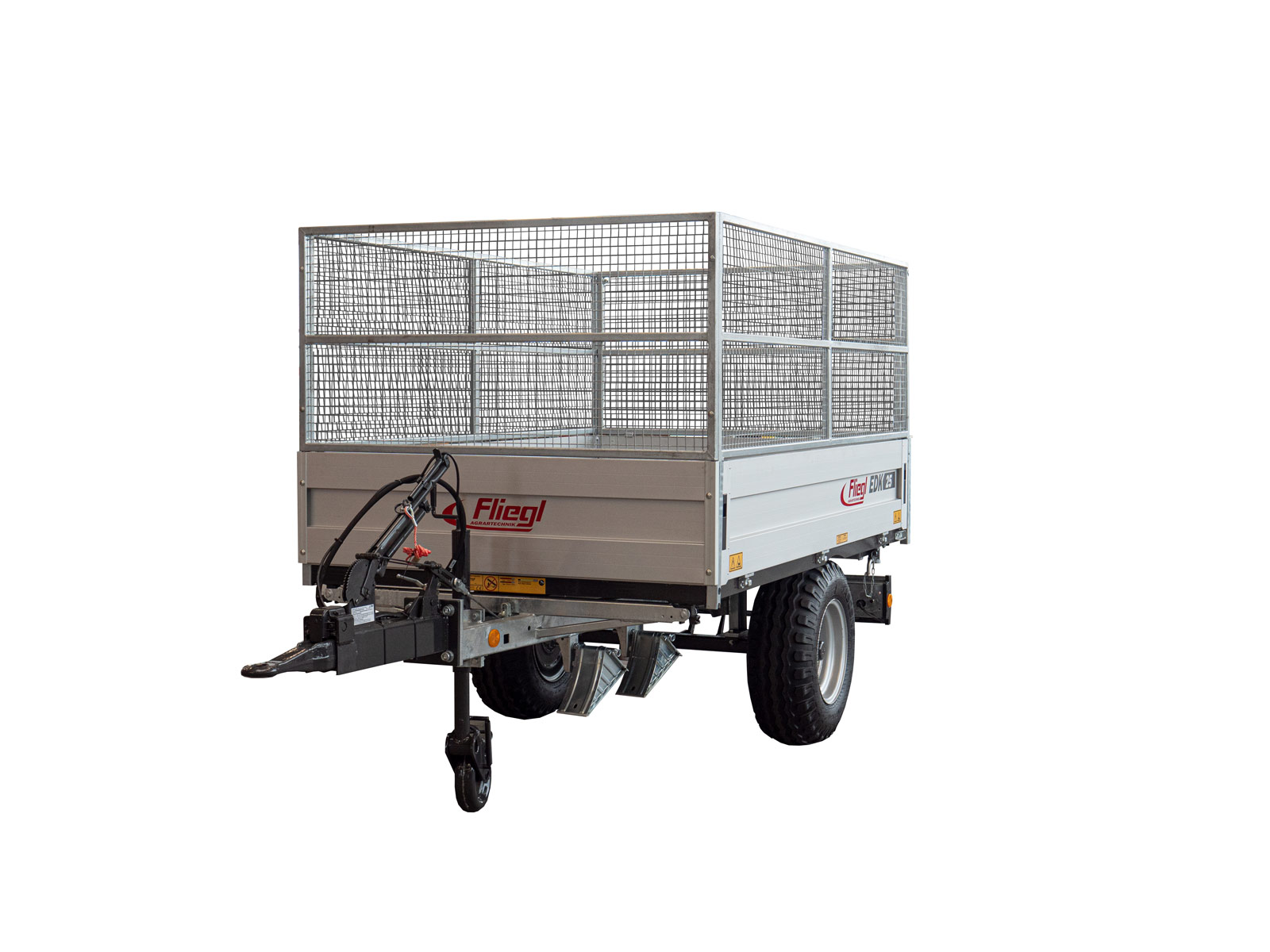

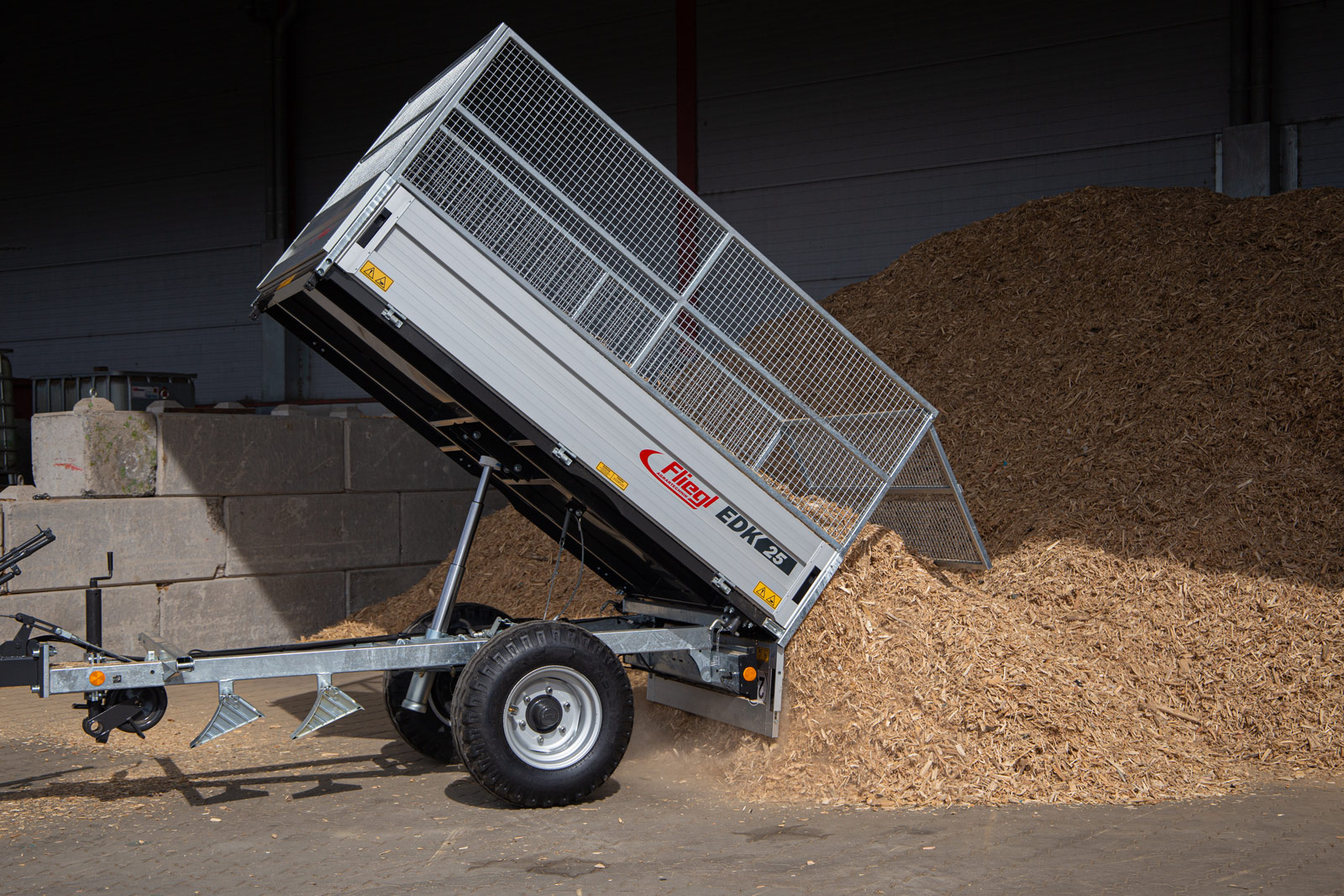

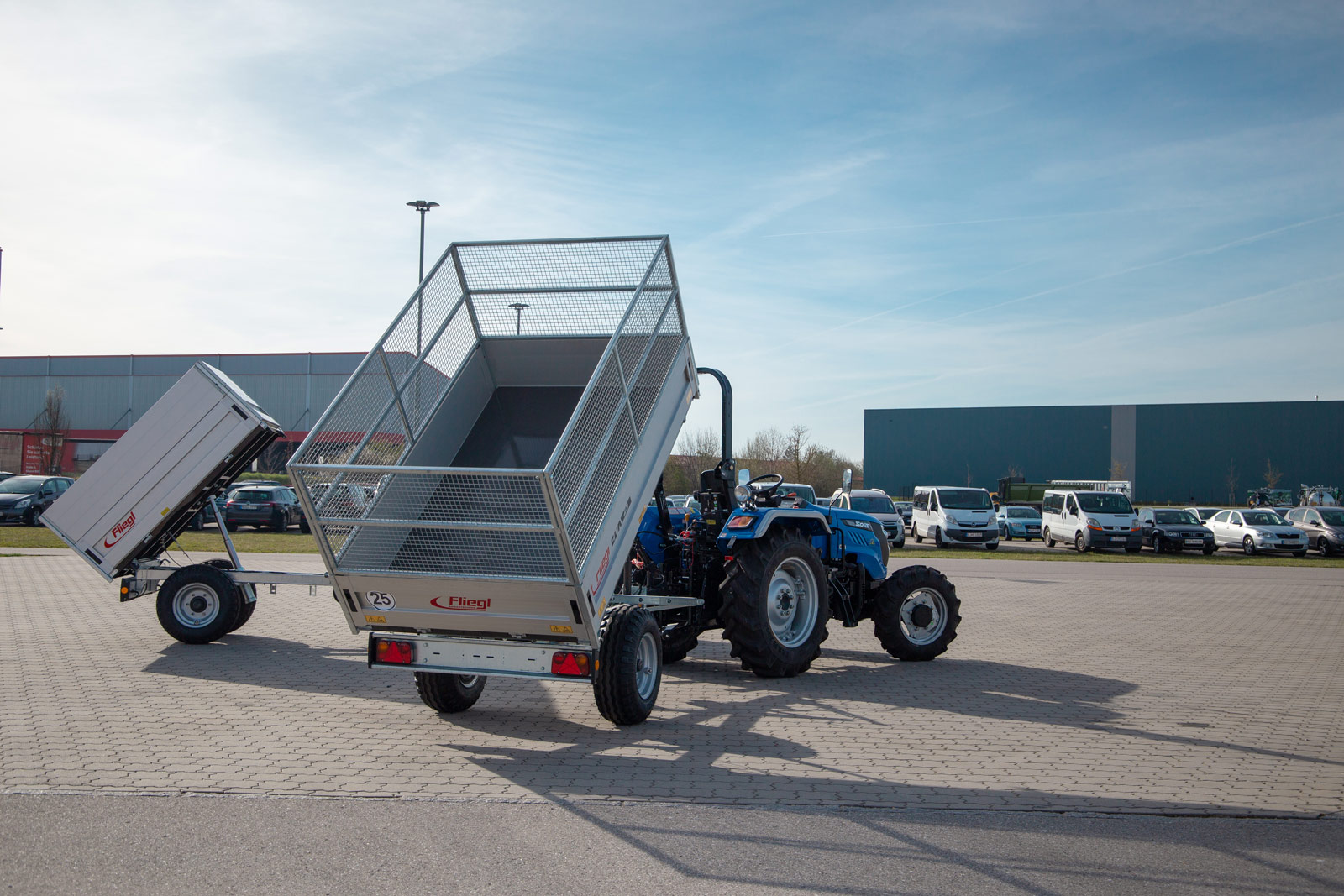

Single-axle three-way tipper EDK 25
- Single-axle chassis
- Overrun brake
- Basic side panel, 400 mm, aluminium
- permitted total weight 2850 kg
- Hitch height approx. 620 mm
- Floor 2500 mm x 1520
- all-steel single piece floor
- plug-in corner stanchions
- Hollow beam frame galvanised – unsprung
- Tyres 10/75-15.3
- 25 km/h version with EC type approval and COC documents
- Heavy-duty support wheel, folding
- 3-stage tipping cylinder 900 mm stroke
- Mesh extension, 800 mm, steel construction, mesh size approx. 30 x 30 mm
- Tarp covers with hooks and rubber cord

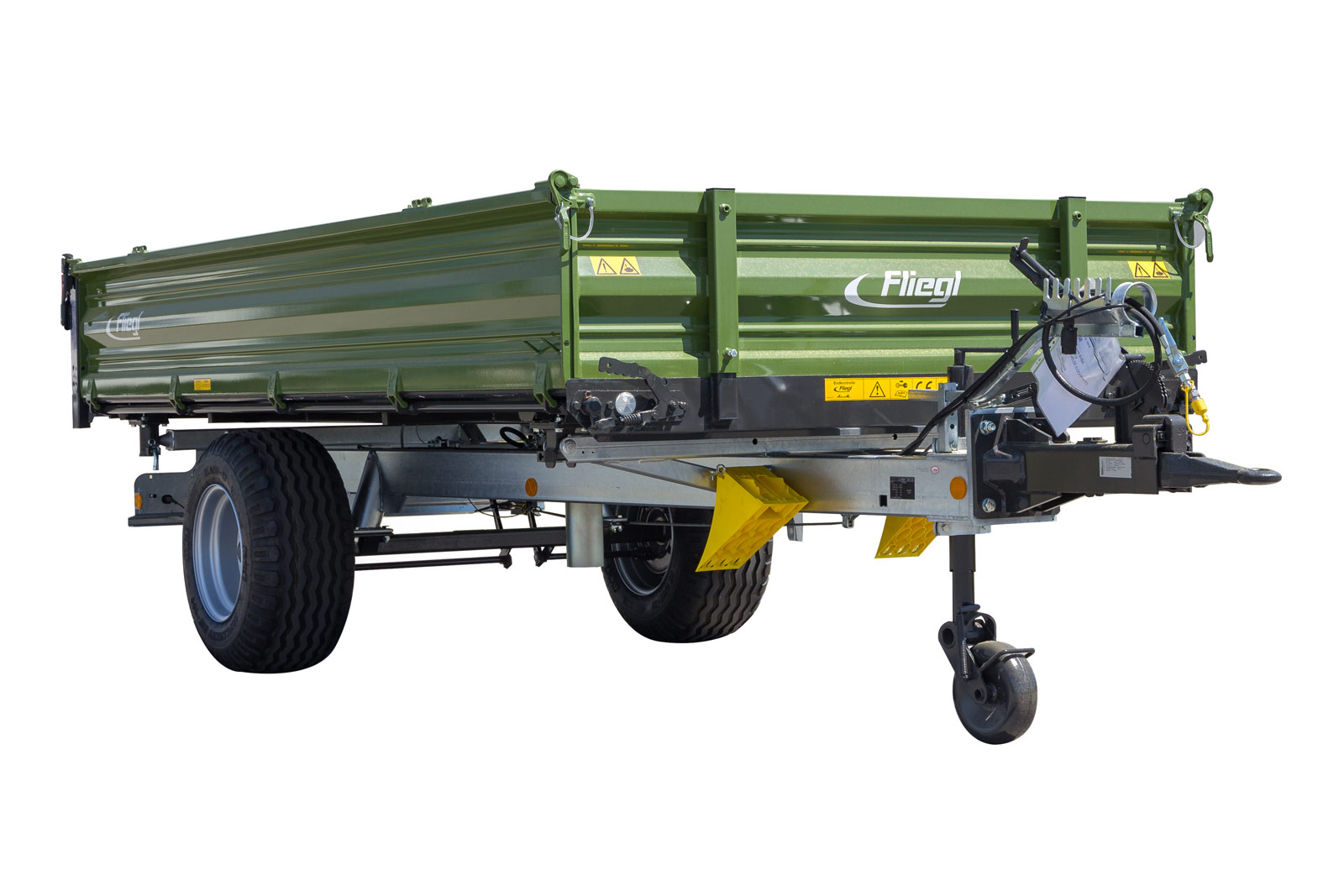

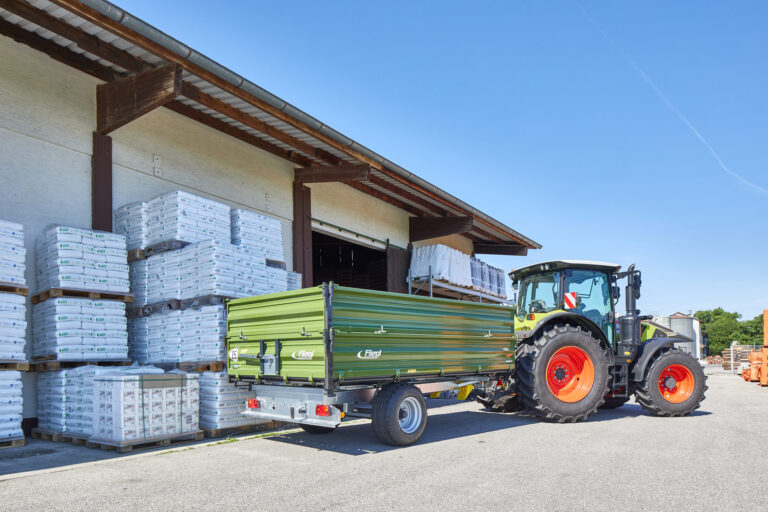

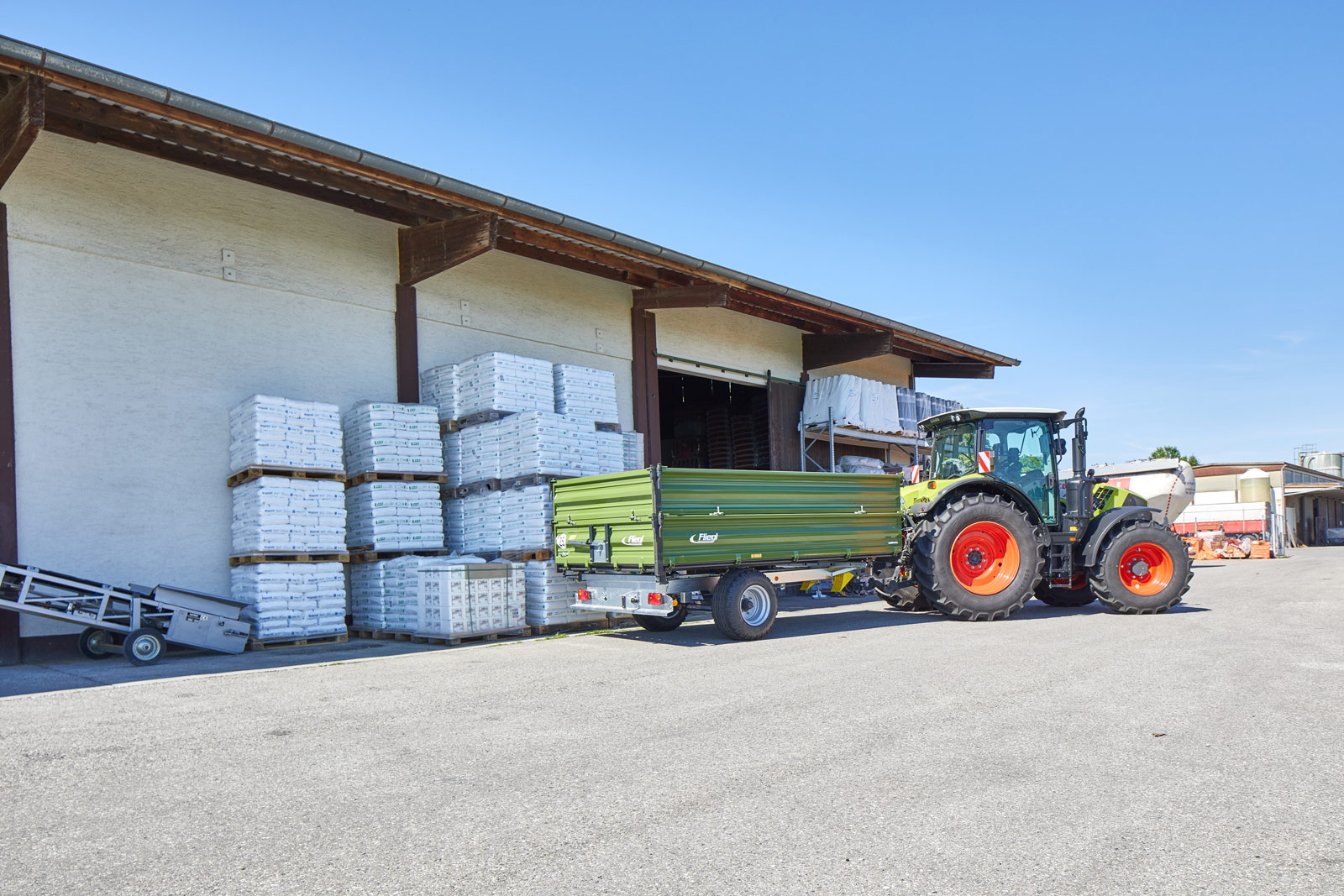

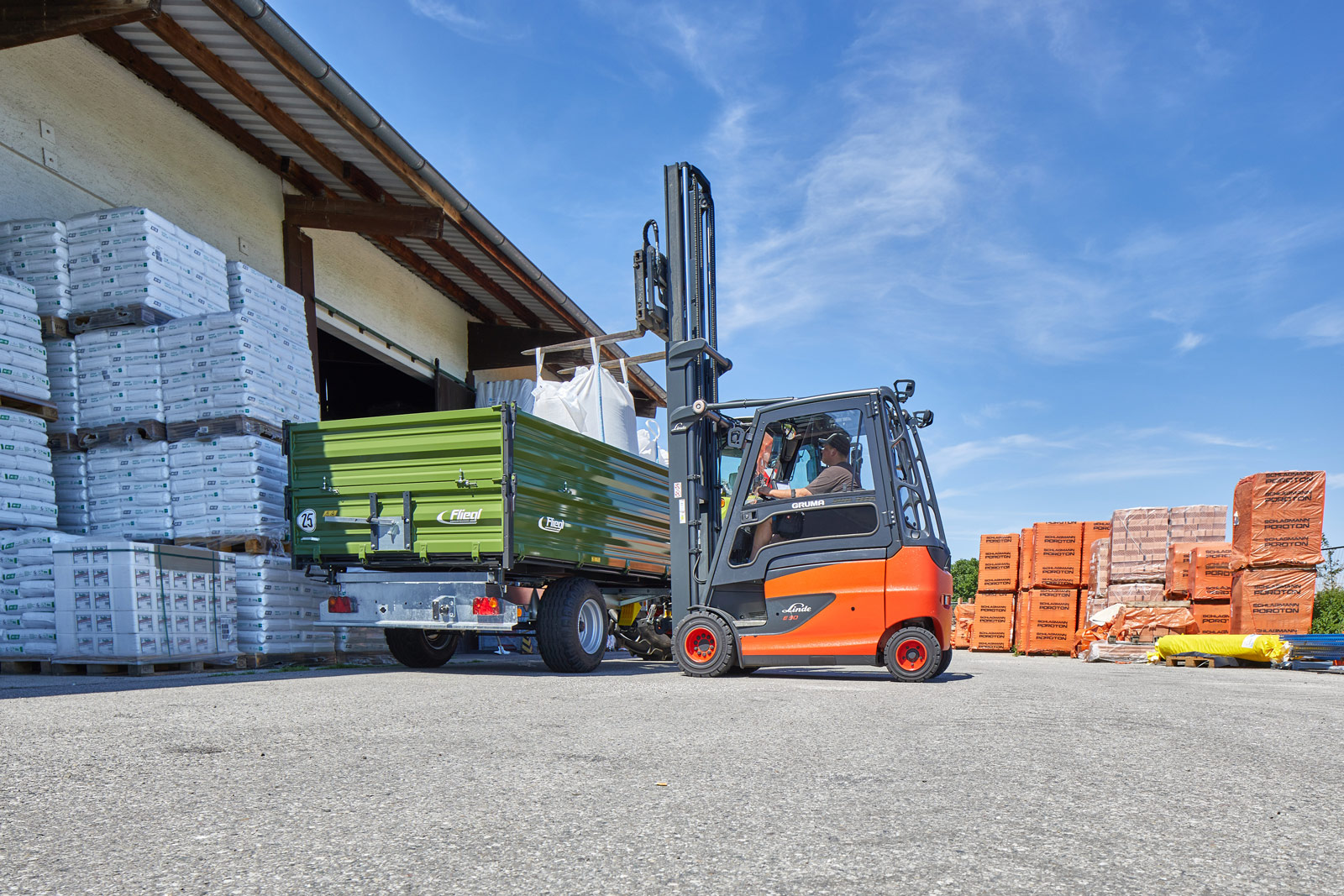

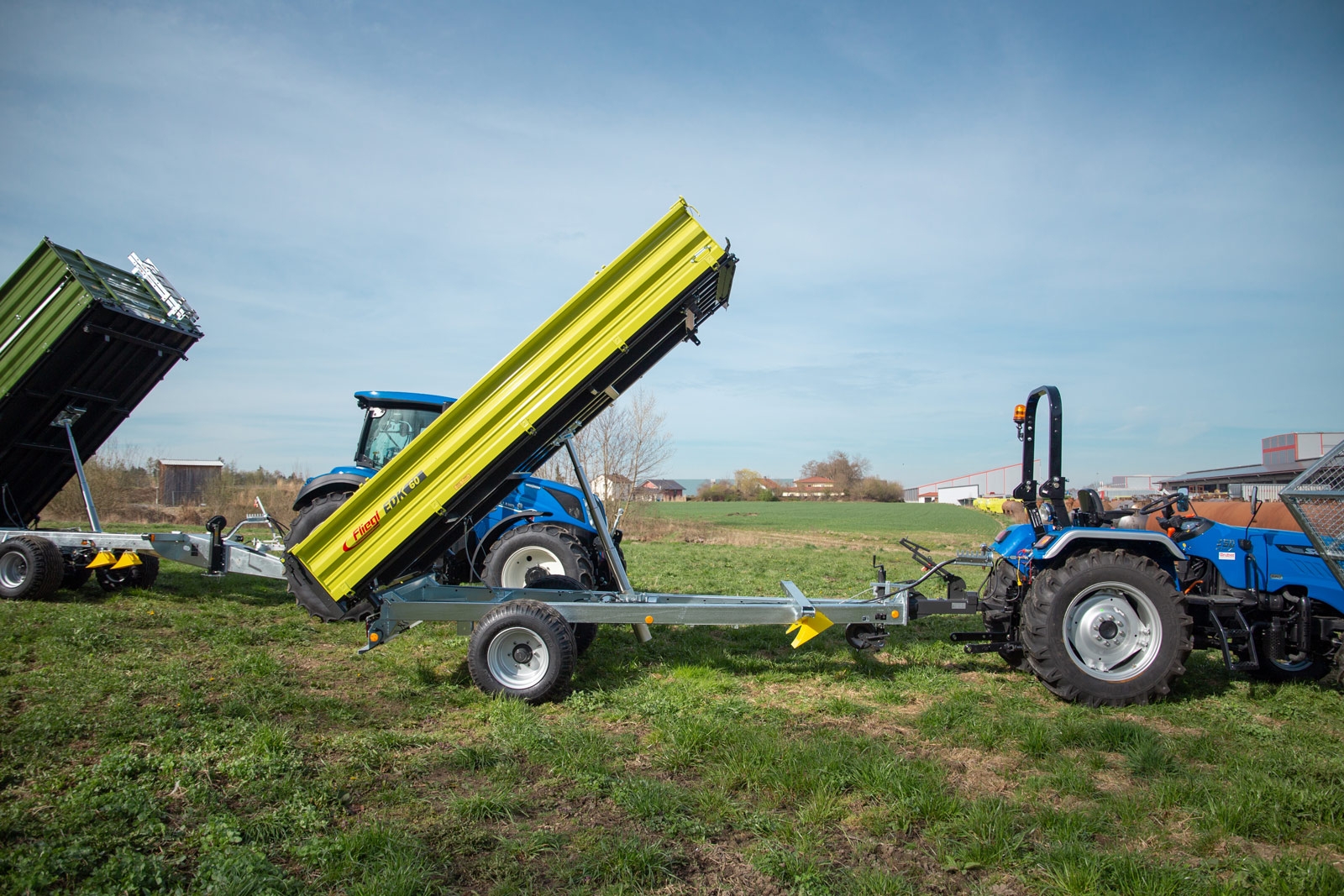

Single-axle three-way tipper FOX-EDK 60
- Single-axle chassis
- Total loaded vehicle weight: 6000 kg
- Hitch height approx. 700 mm
- Bridge 4000 mm x 2020 mm
- all-round rubber seal with special profile
- plug-in corner stanchions
- central locking right, left and rear
- Base side panel 500 mm side panel connectors
- grain outlet 300 mm x 200 mm
- Hollow beam frame galvanised – unsprung
- 1 brake axle, track width 1650 mm
- Overrun brake, Rückmatik
- DIN drawbar eye 40 (Ø 40 mm)
- Tyres 15.0/55-17
- 25 km/h version for Germany with ABE
- Heavy-duty support wheel, folding
- 4-stage tipping cylinder 1500 mm stroke, limit switch
- Stopcock

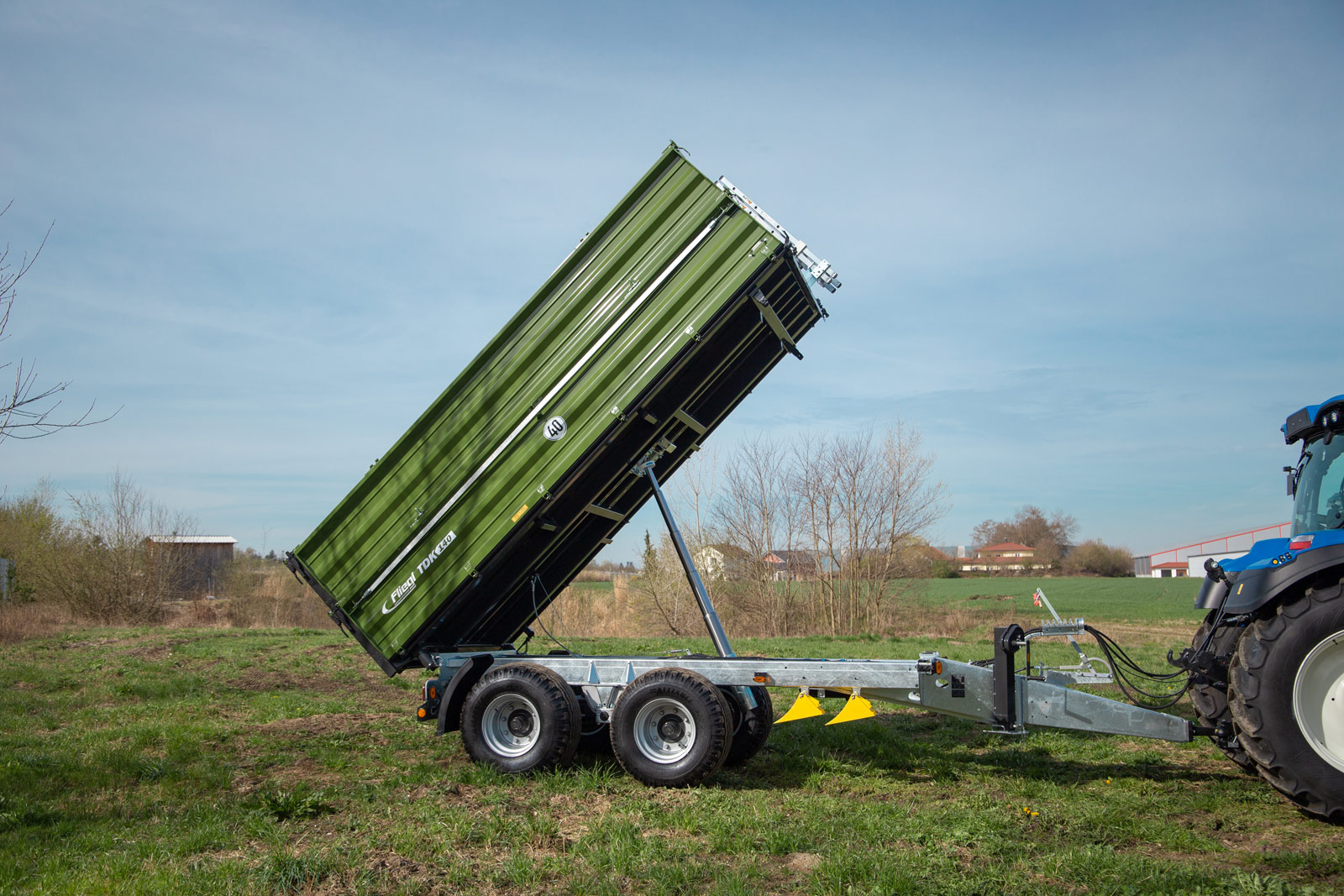

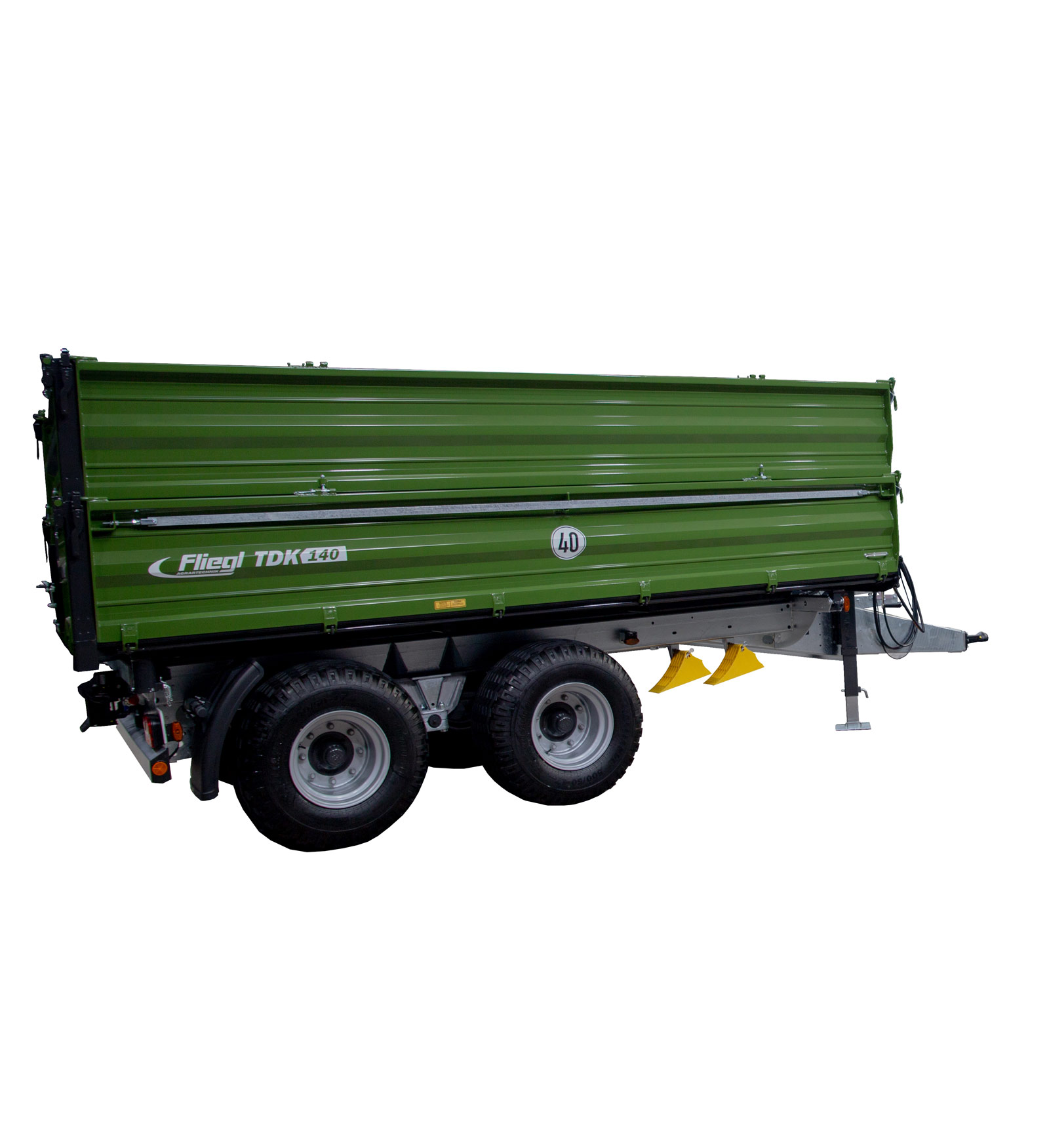

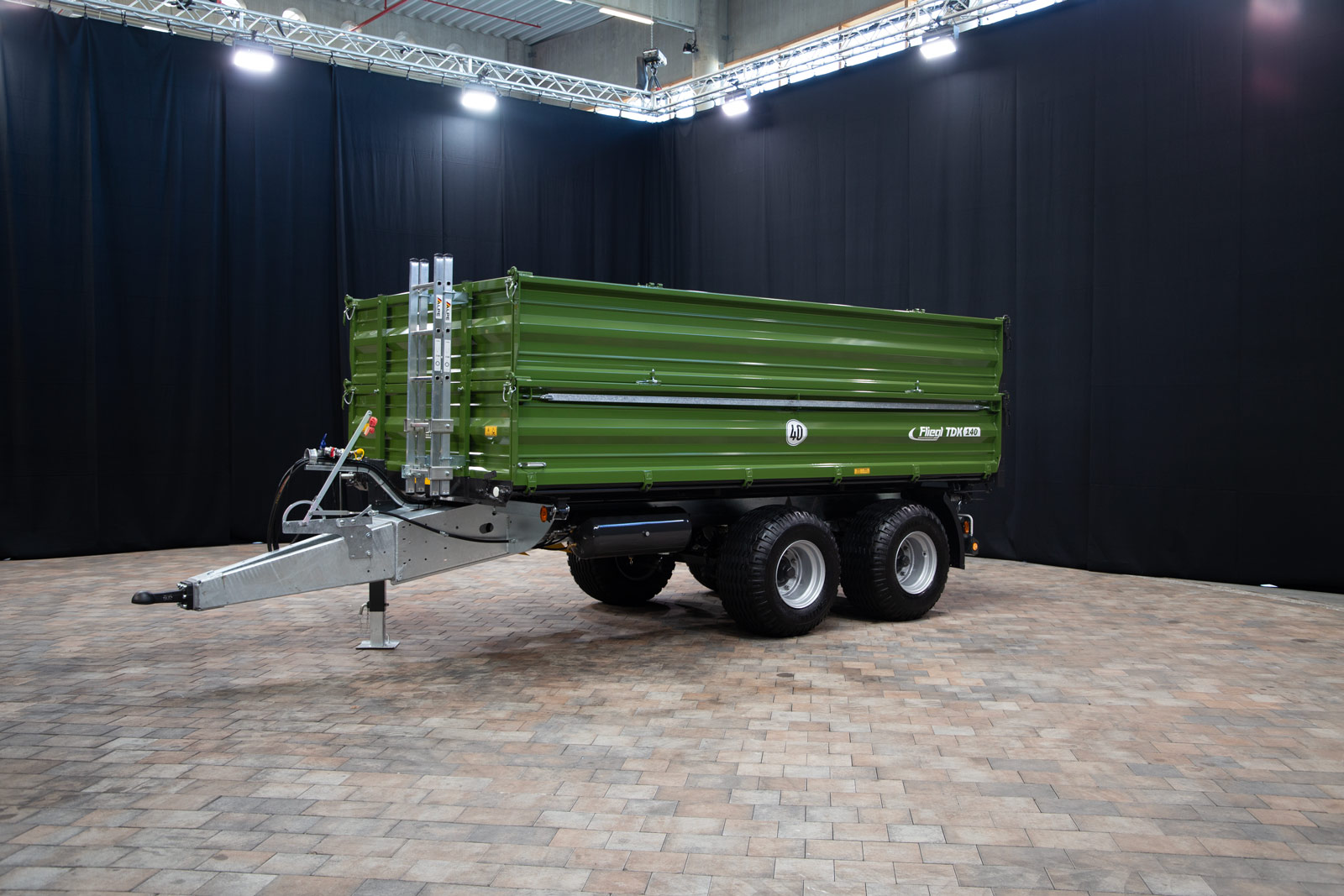

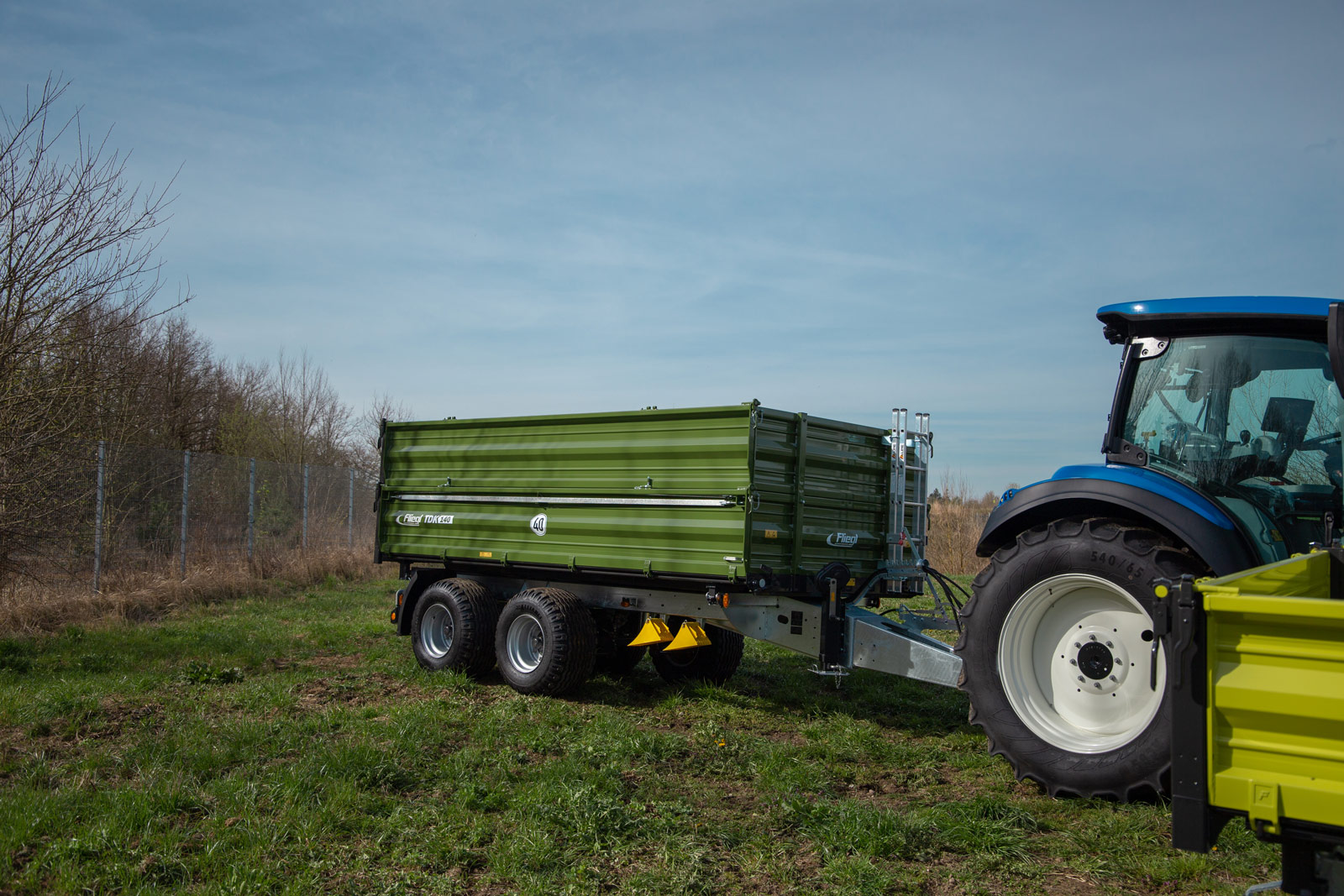

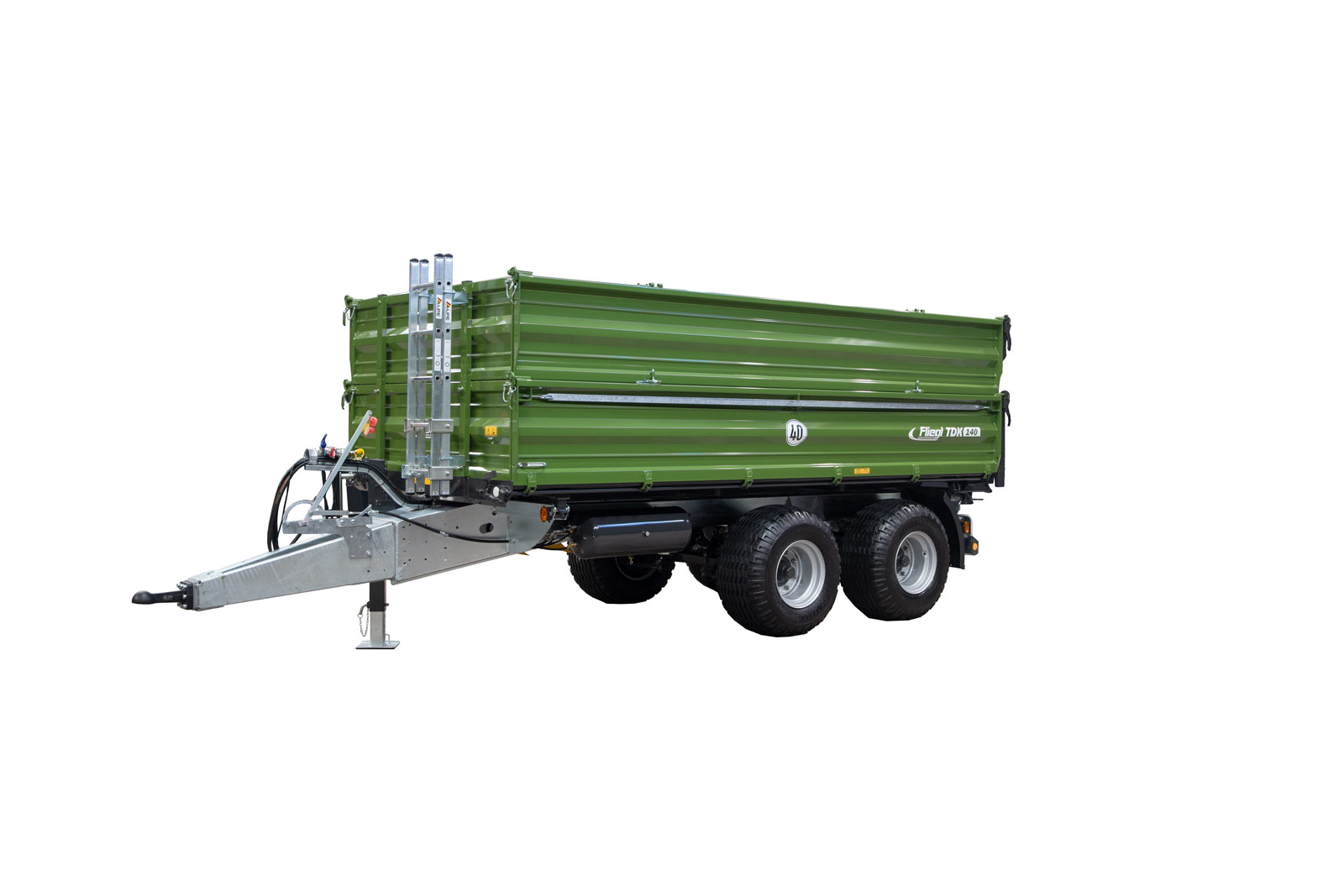

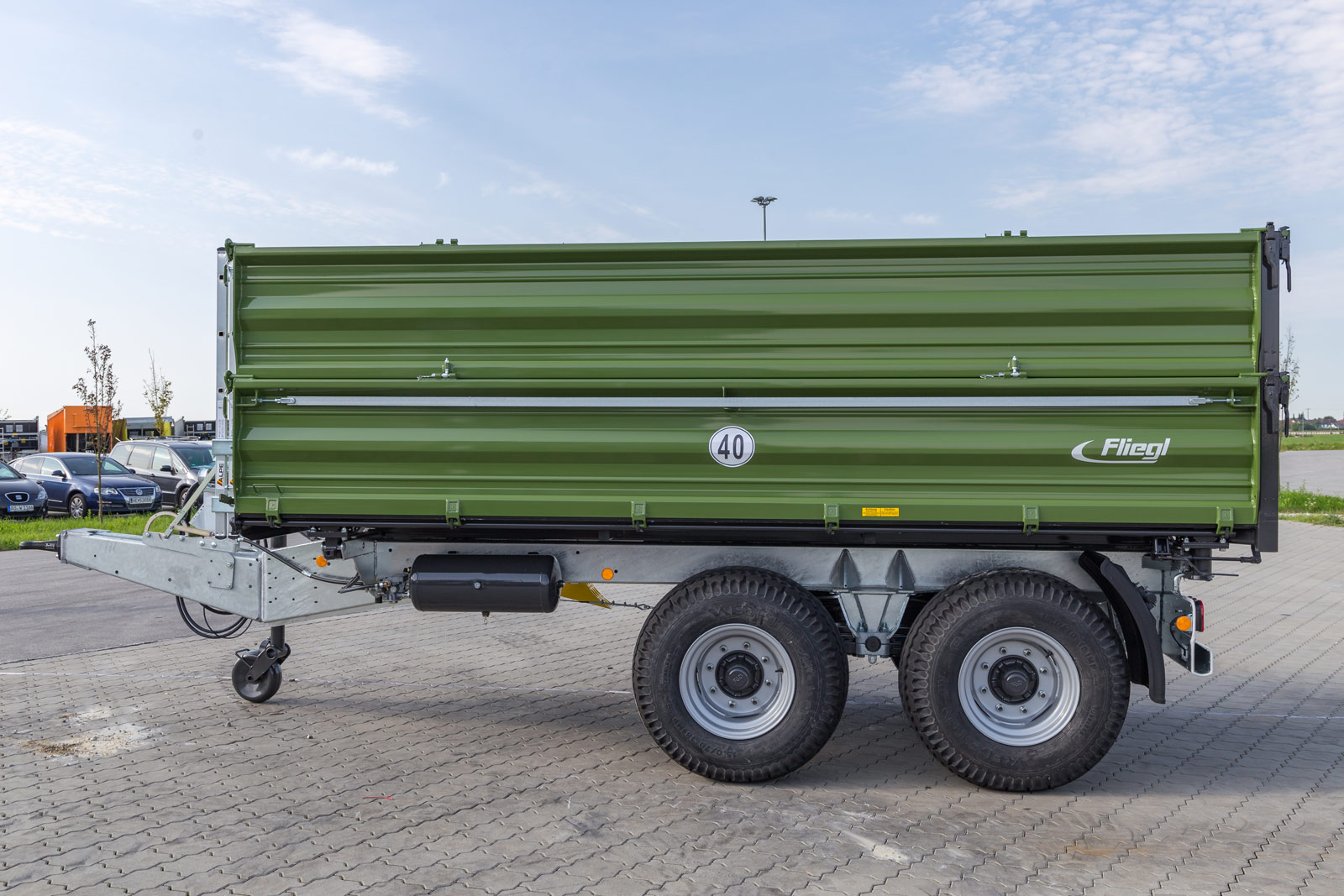

Tandem three-way tipper TDK 140 FOX
- Tandem chassis
- Permitted total weight: 14000 kg
- Profi frame, galvanised
- Drawbar, unsprung, swivelling for top hitch
- Bridge 4500 mm x 2220/2170 mm (conical)
- all-round rubber seal with special profile
- plug-in corner stanchions
- central locking right, left and rear
- Base side panel 600 mm
- grain outlet 400mm x 230mm
- Side panel tension springs
- First body extension 600 mm
- Parabolic suspension, Jumbo Titan assemblyDIN drawbar eye 40 (Ø 40 mm)
- 2-circuit compressed air brake with ALB
- Tyres 445/45 R 19.5 new
- 40 km/h version with EC type approval and COC documents
- Supporting foot with 2 speeds / height-adjustable
- Hydraulic line for 2nd trailer
- Brake connection for 2nd trailer / 2-circuit compressed air brake
- Rear trailer coupling, automatic
