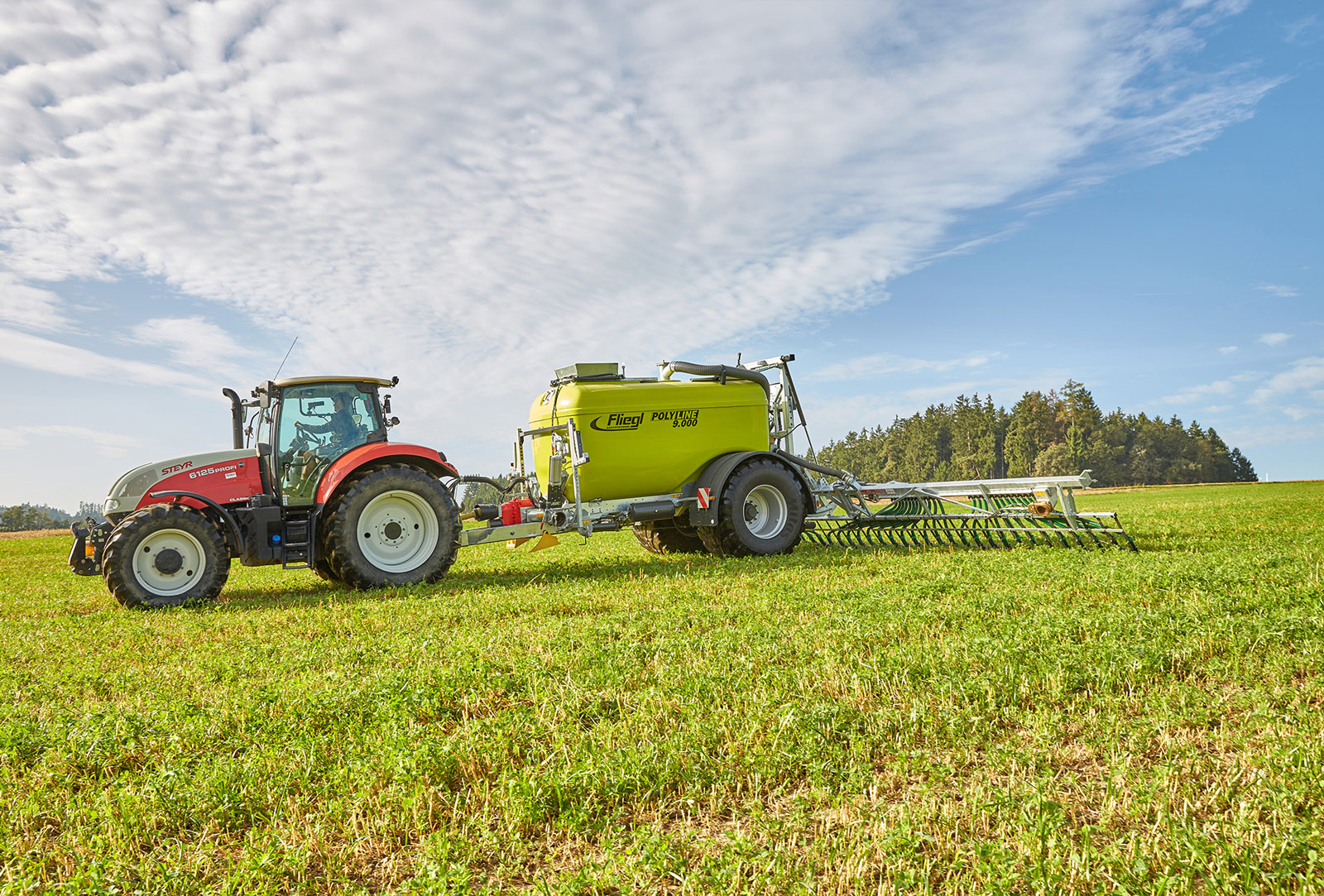

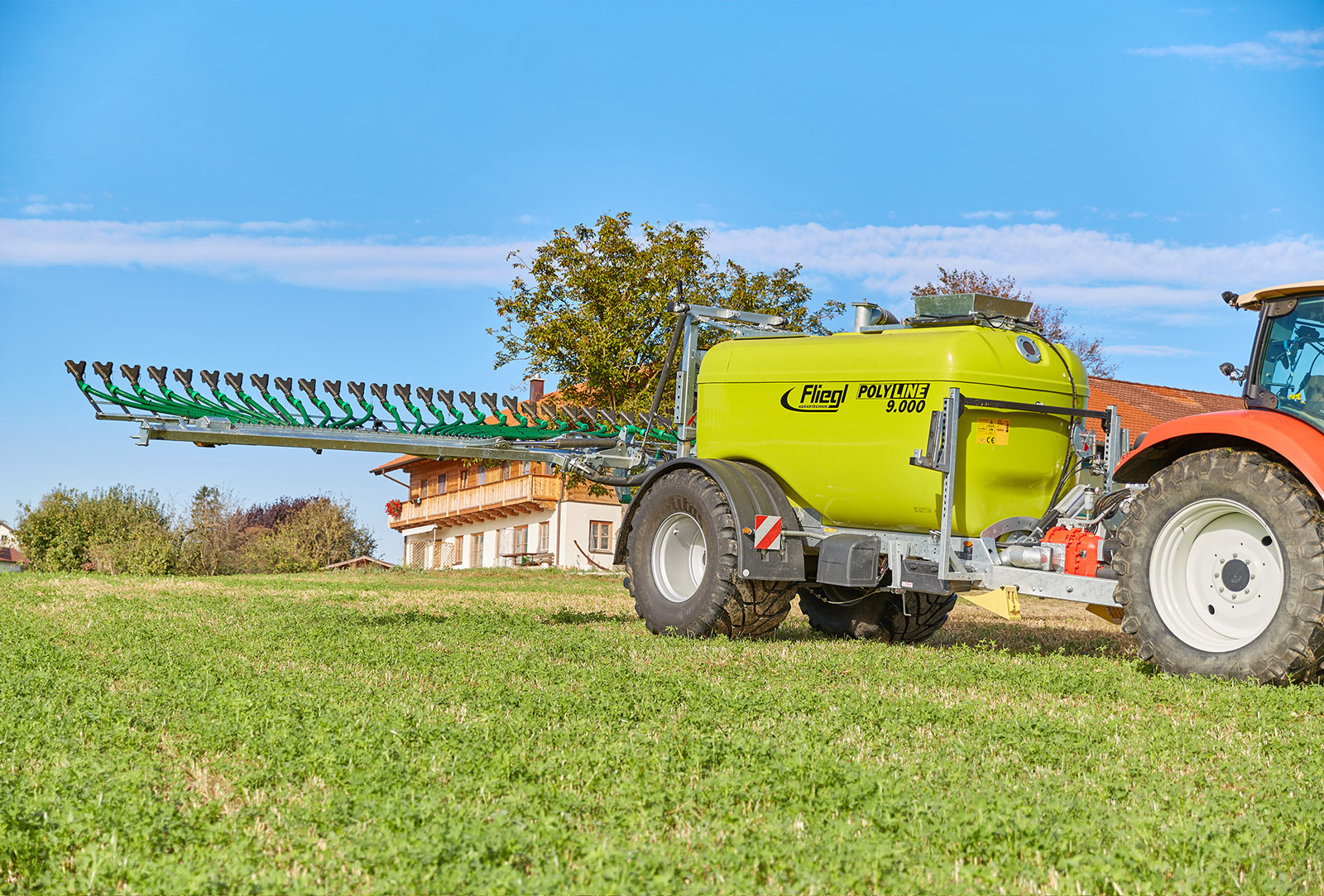

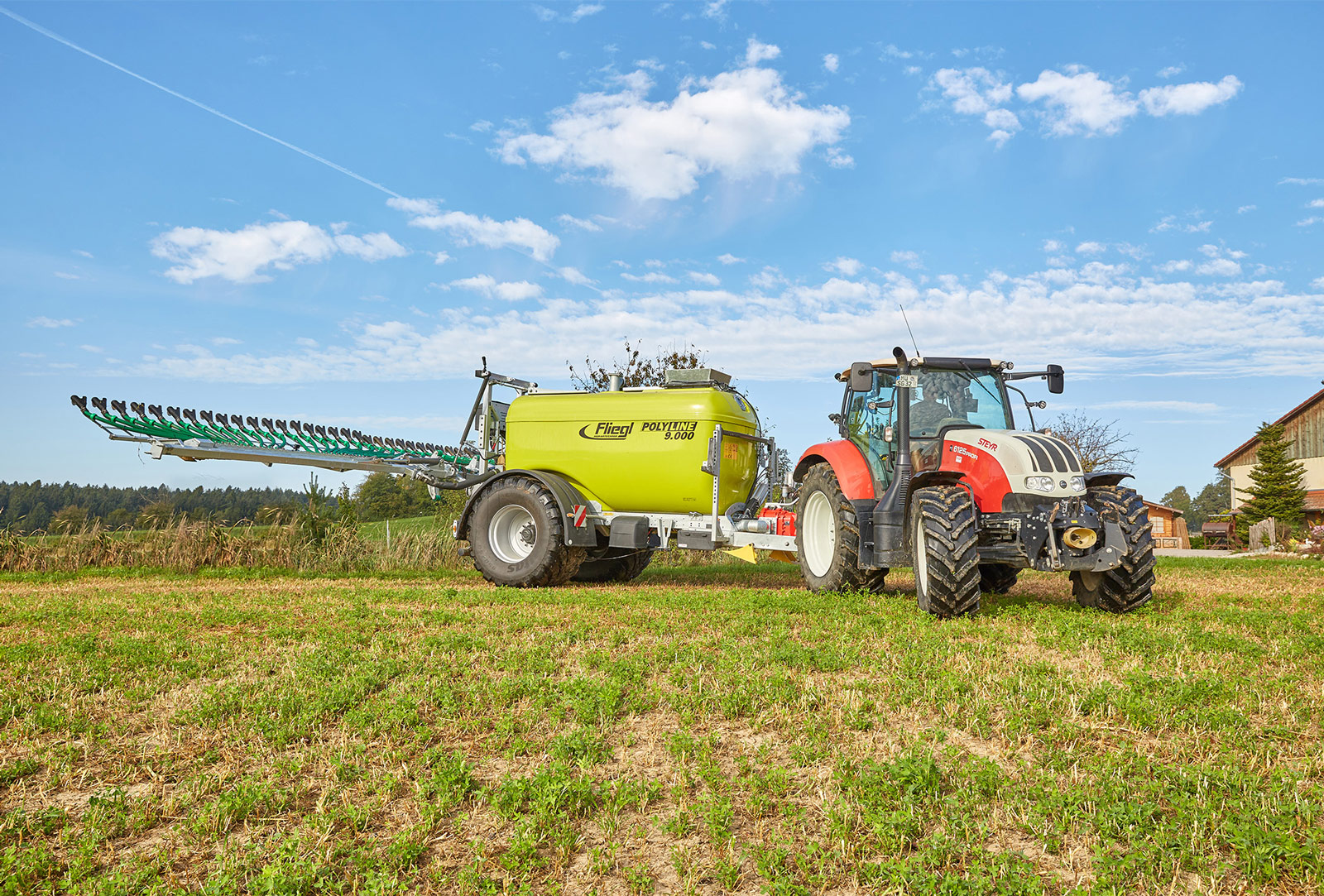

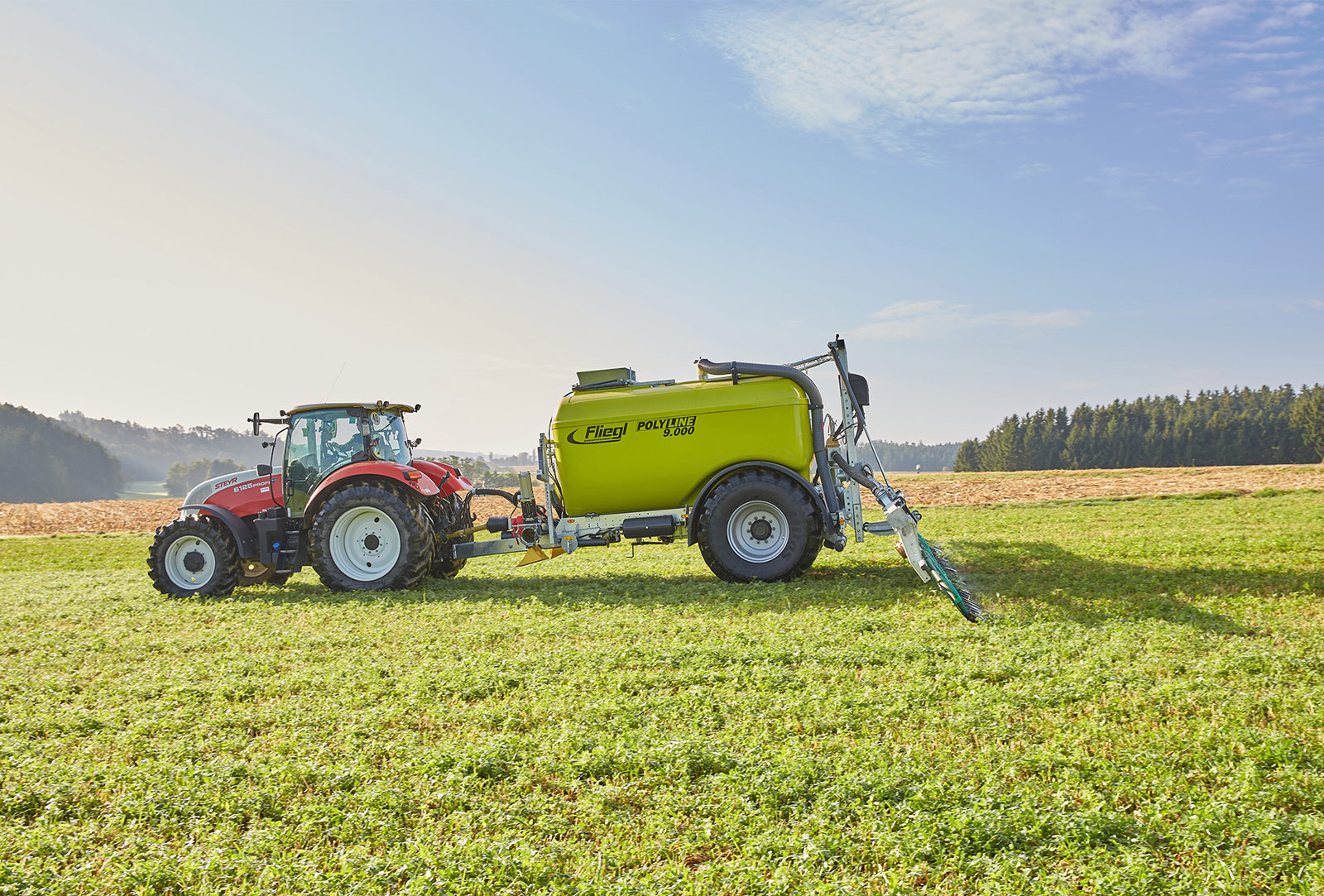

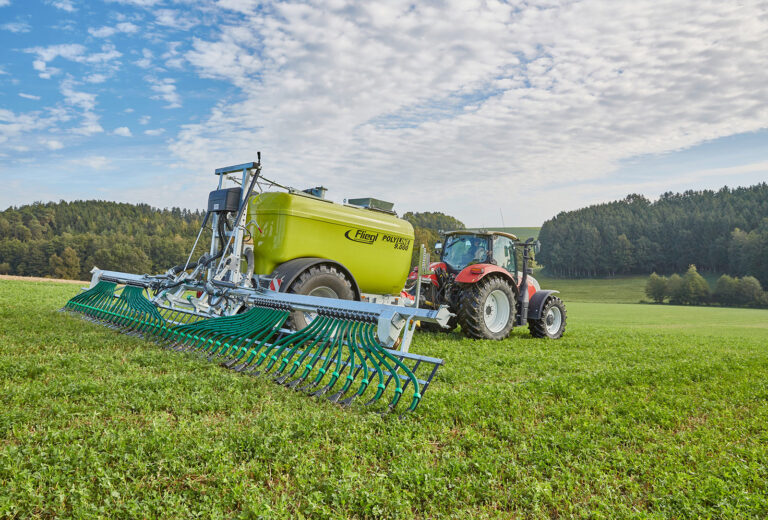

Pump tanker PFW 9000 single axle Poly Line with SKATE 90 trailing shoe spreader
PRODUCT INFO
directly to your phone
Pump tanker PFW 9000 single axle Poly Line
- Single-axle chassis
- Permitted total weight: 13000 kg
- Empty weight approx. 4500 kg including distributor
- bottom hitch with Ball head K80 (Ø 80 mm)
- 2-circuit compressed air brake with ALB
- 40 km/h version with EC type approval and COC documents
- tyres 850/50 R 30.5
- Sliding cover approx. 600 x 600 mm hydraulic front incl. position display
- GRP container
- Vogelsang VX186-184Q rotary piston pump 4000 litr
- Automatic pneumatic pump changeover with knife gate valves
- 6″ suction nozzle right
- 6″ suction slider with Perrot quick coupler, left
- Fill level indicator
- Bull´s eye
- 12 V LED lighting; 2 LED working lights
- Position lights, Clearance lights, Side marker lights
- ladder

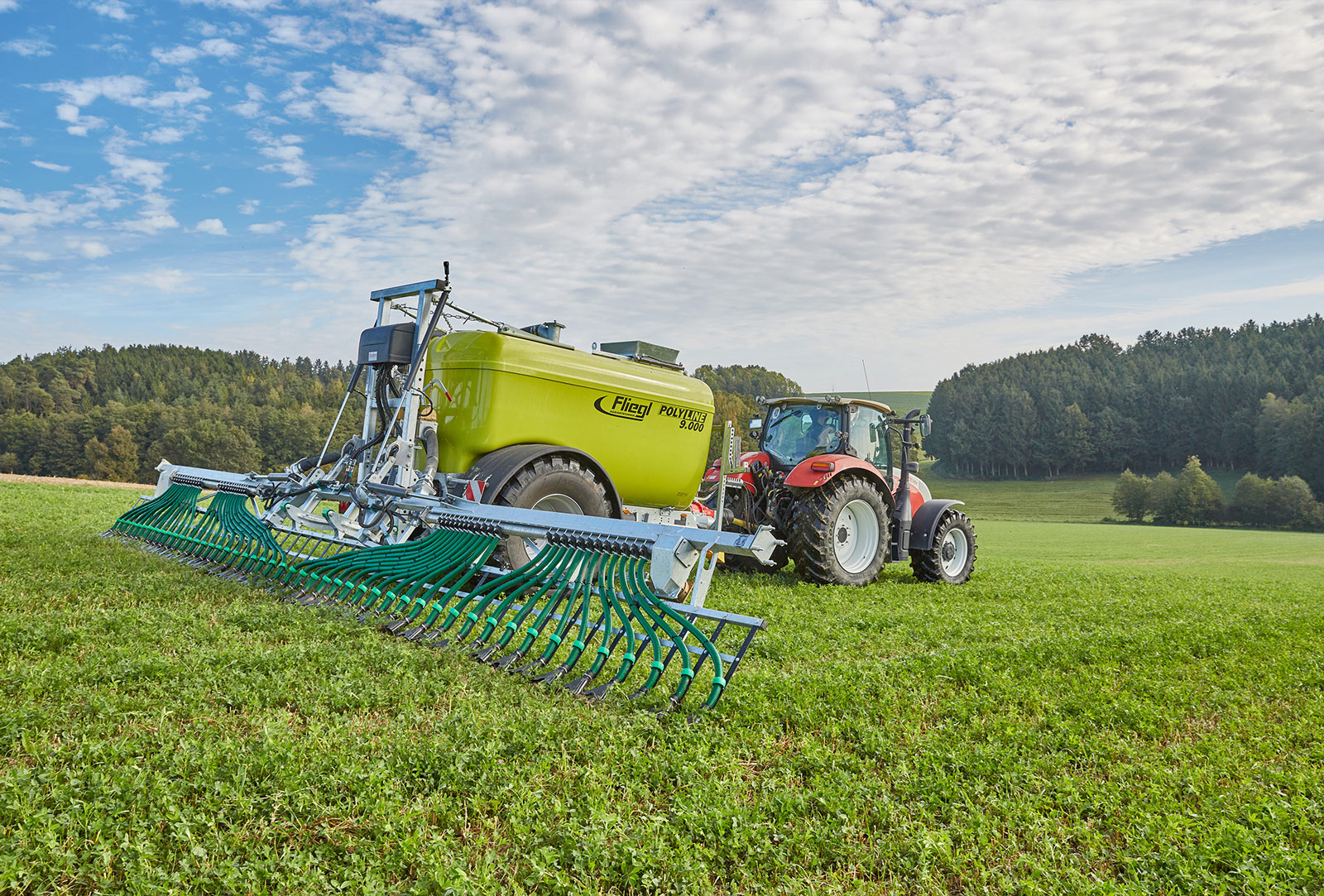

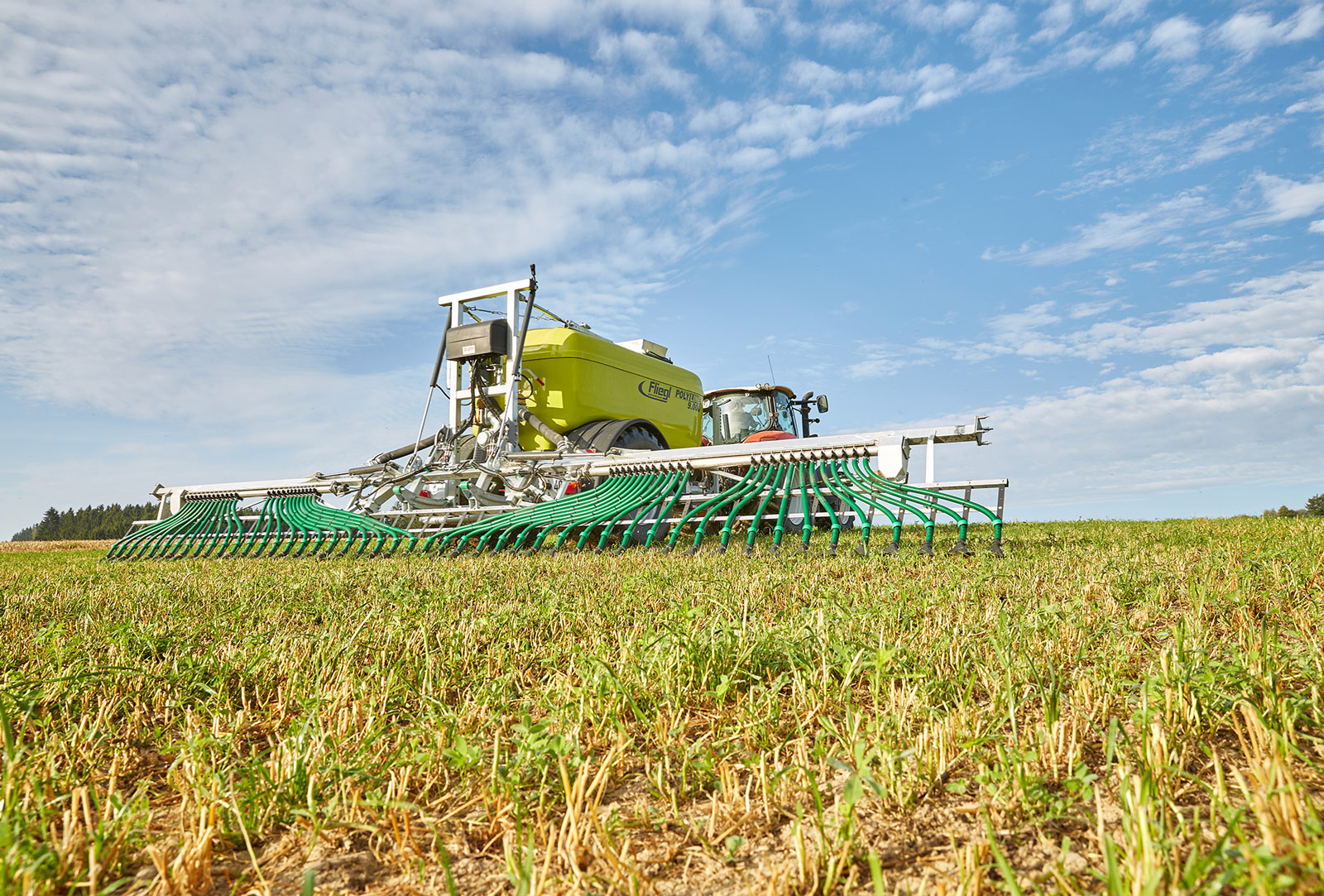

SKATE 90 trailing shoe spreader

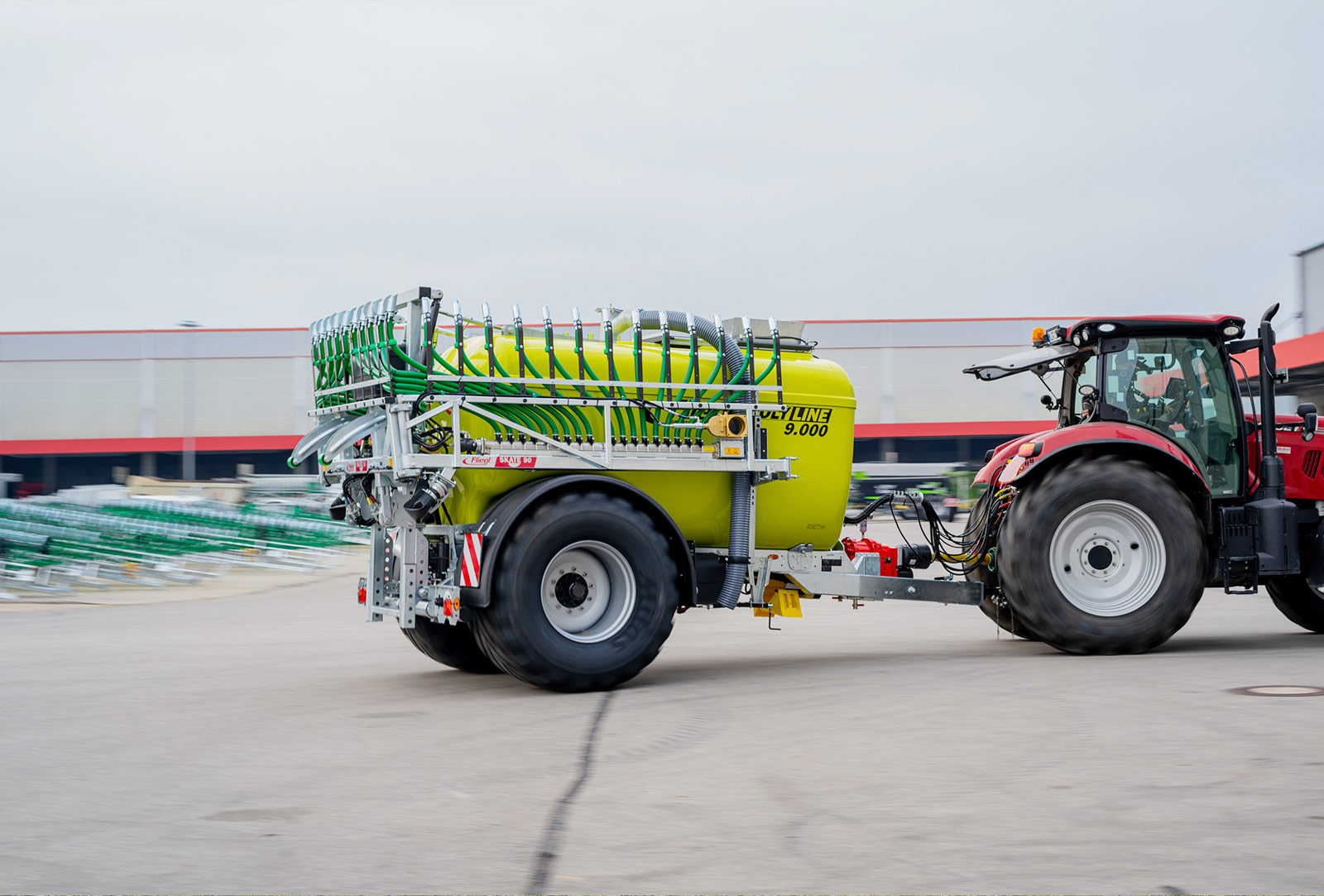

- Operational span of 9000 mm, hydraulic folding
- Outlet opening (diameter) of screw trough 21 mm
- 250 mm hose spacing

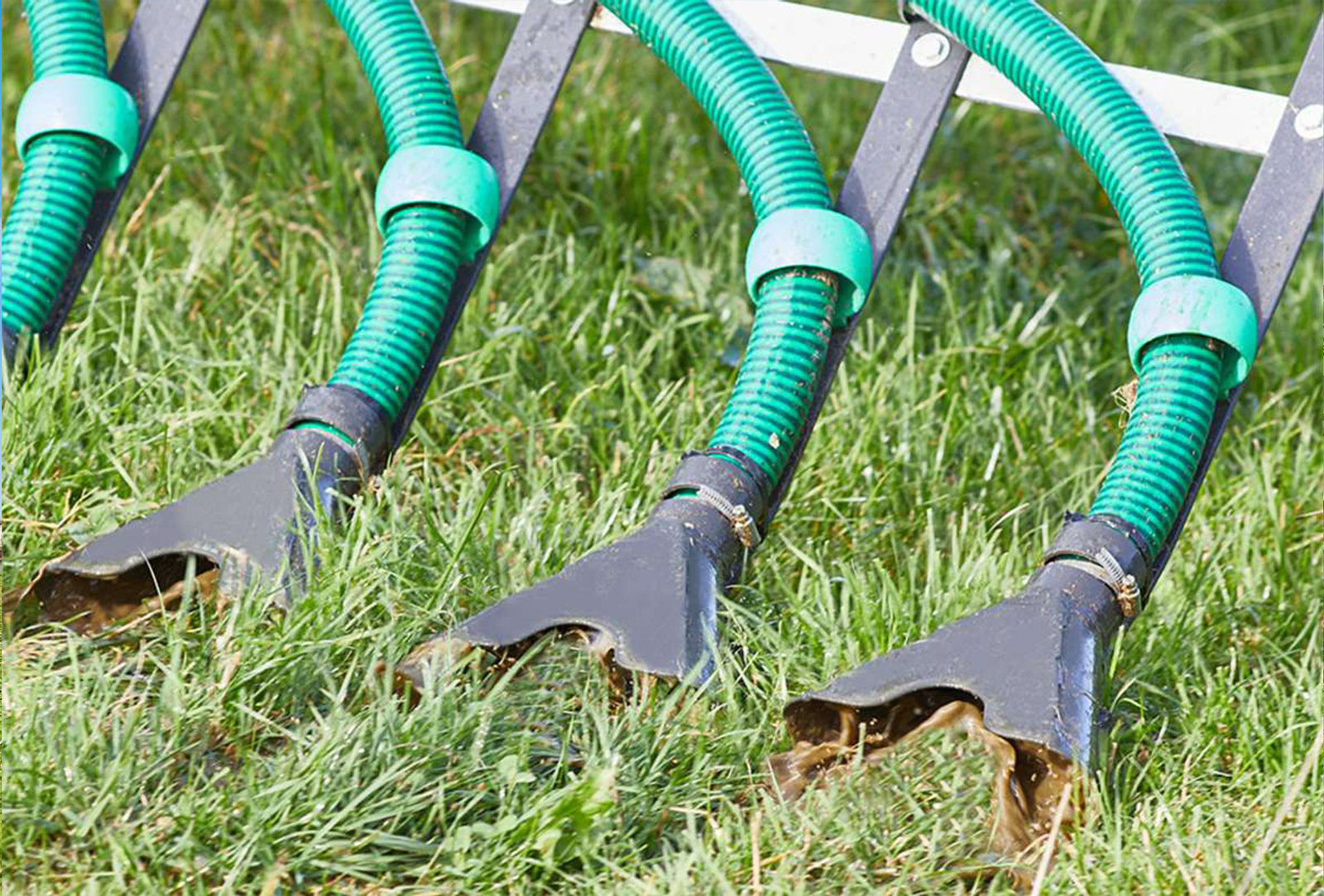

- Bolted drag shoe nozzle TWIN
- Comfort control, switchable from load sensing to constant flow, with control panel,
sequence control and reversal of screw direction - Trap box, hydraulically opened, including 1-way control block
- Attachment parts for assembly on Fliegl Poly tank
- T-piece at rear of tank
- Left and right side mechanical shut-off sliders
- New oil motor mounting
