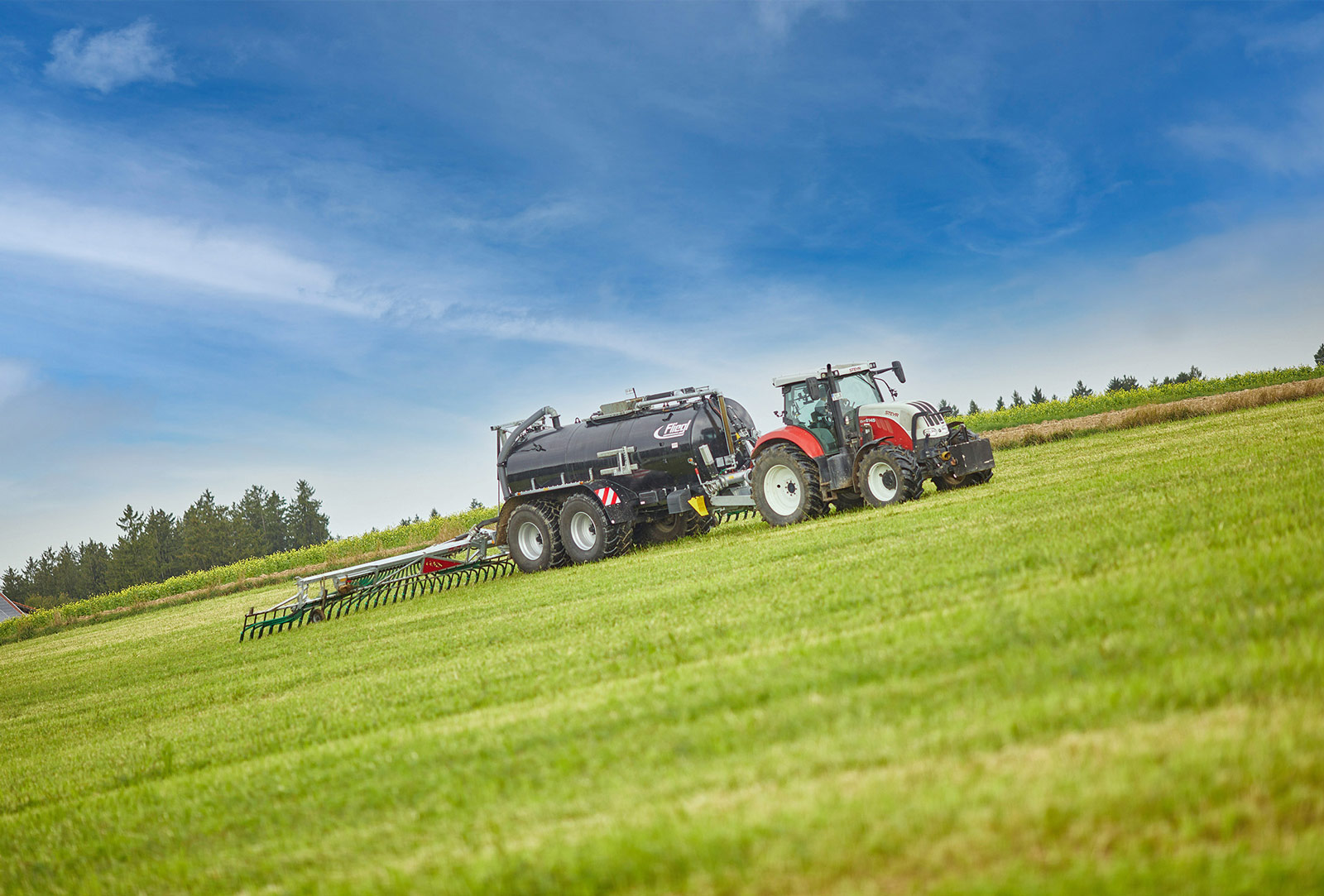

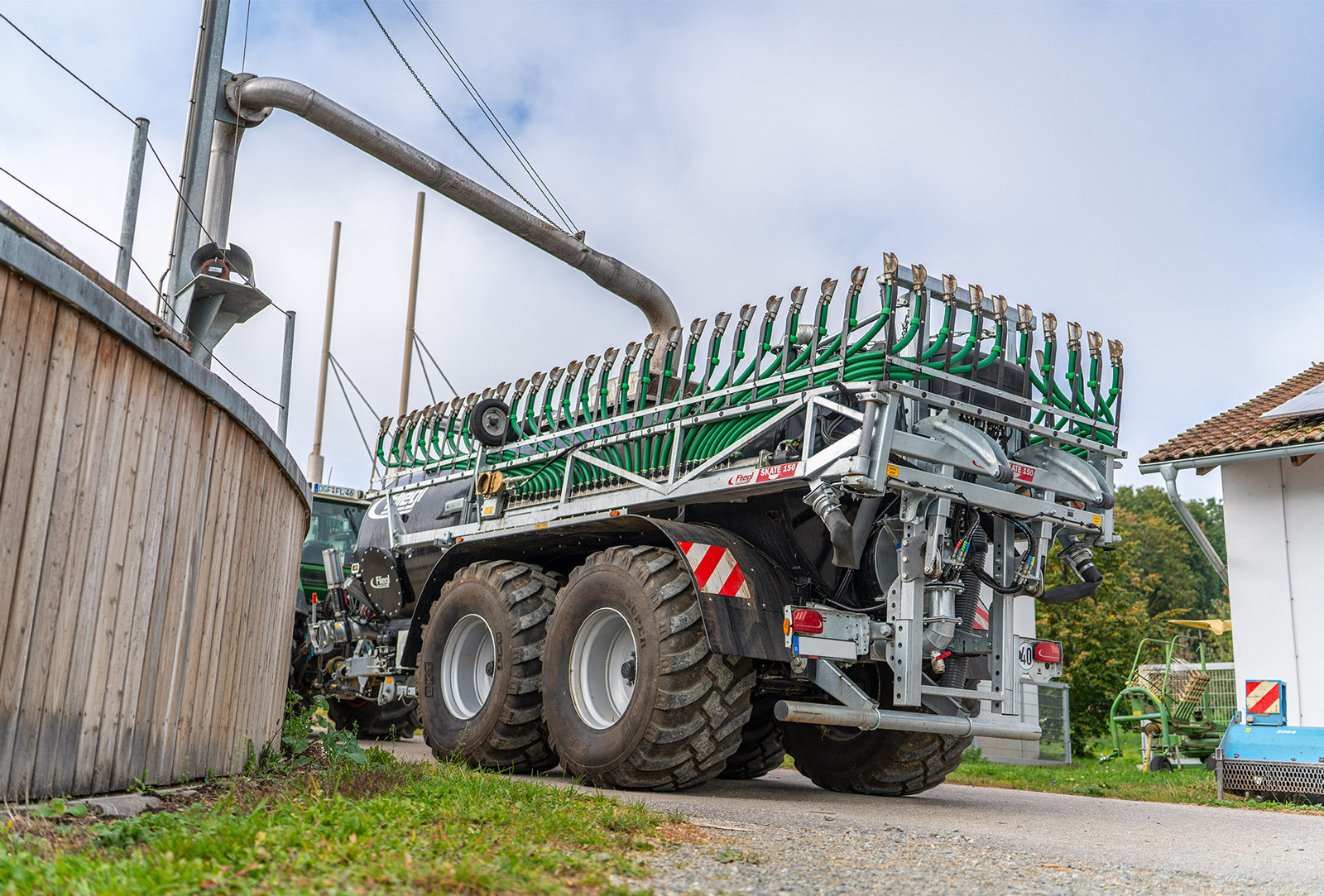

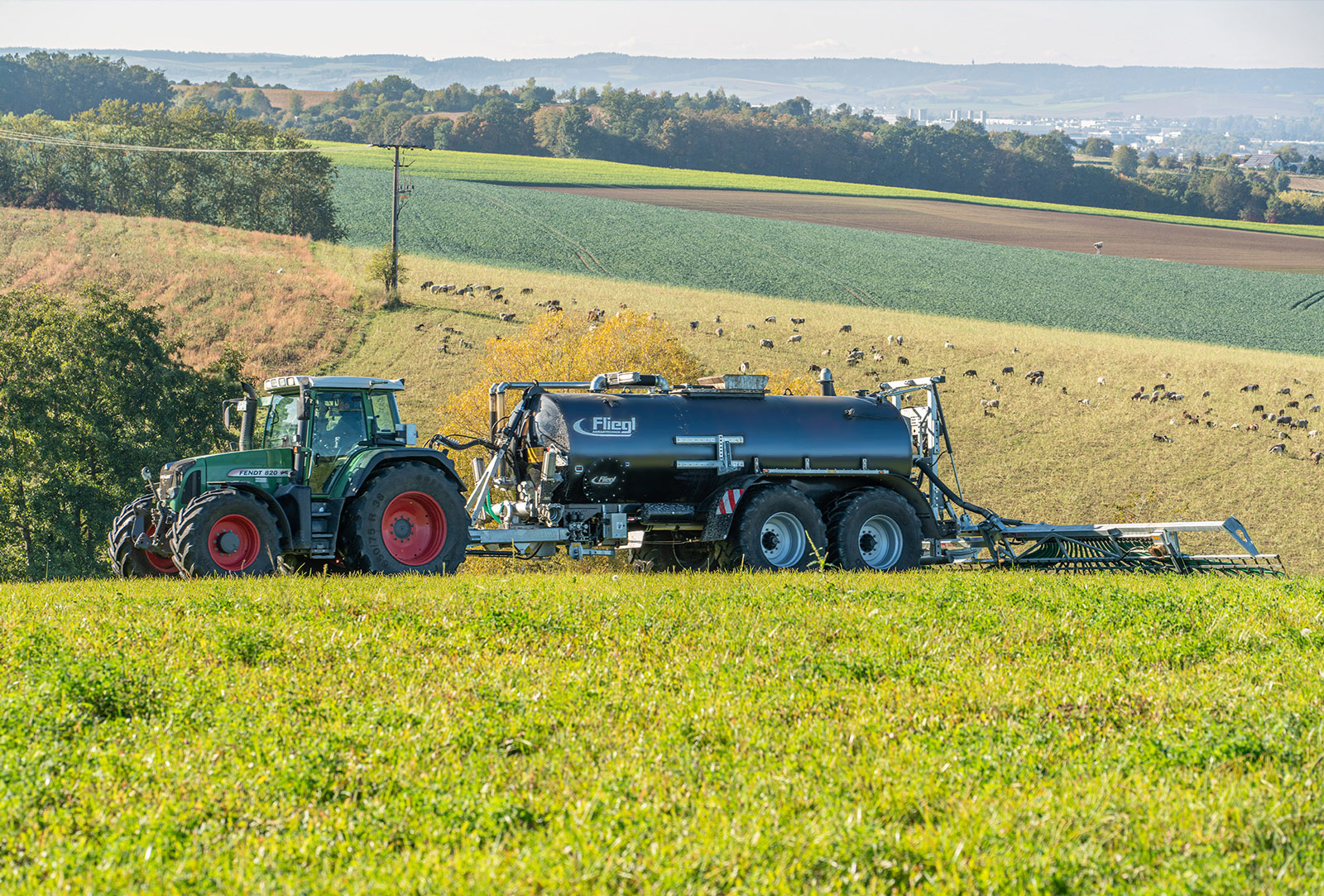

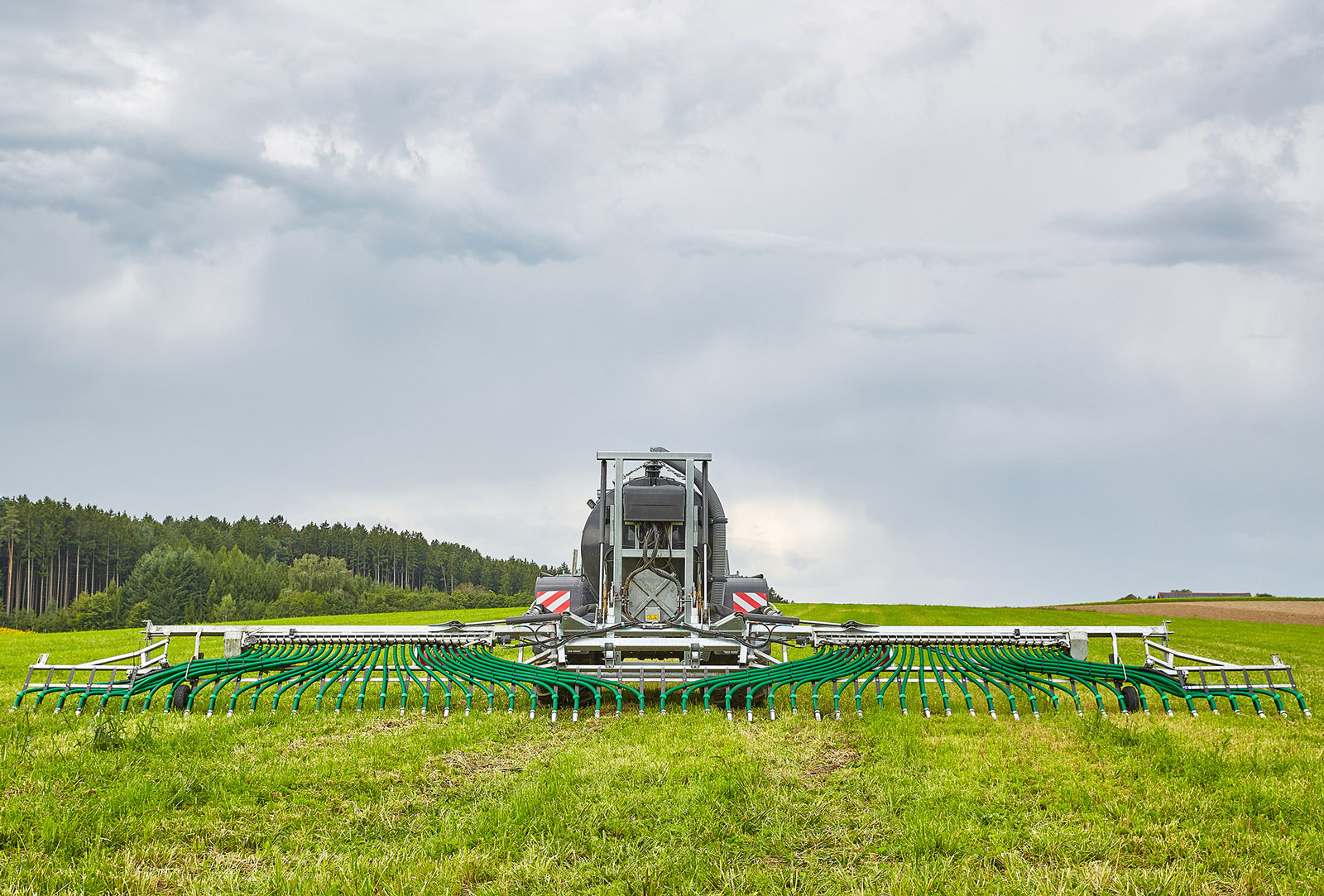

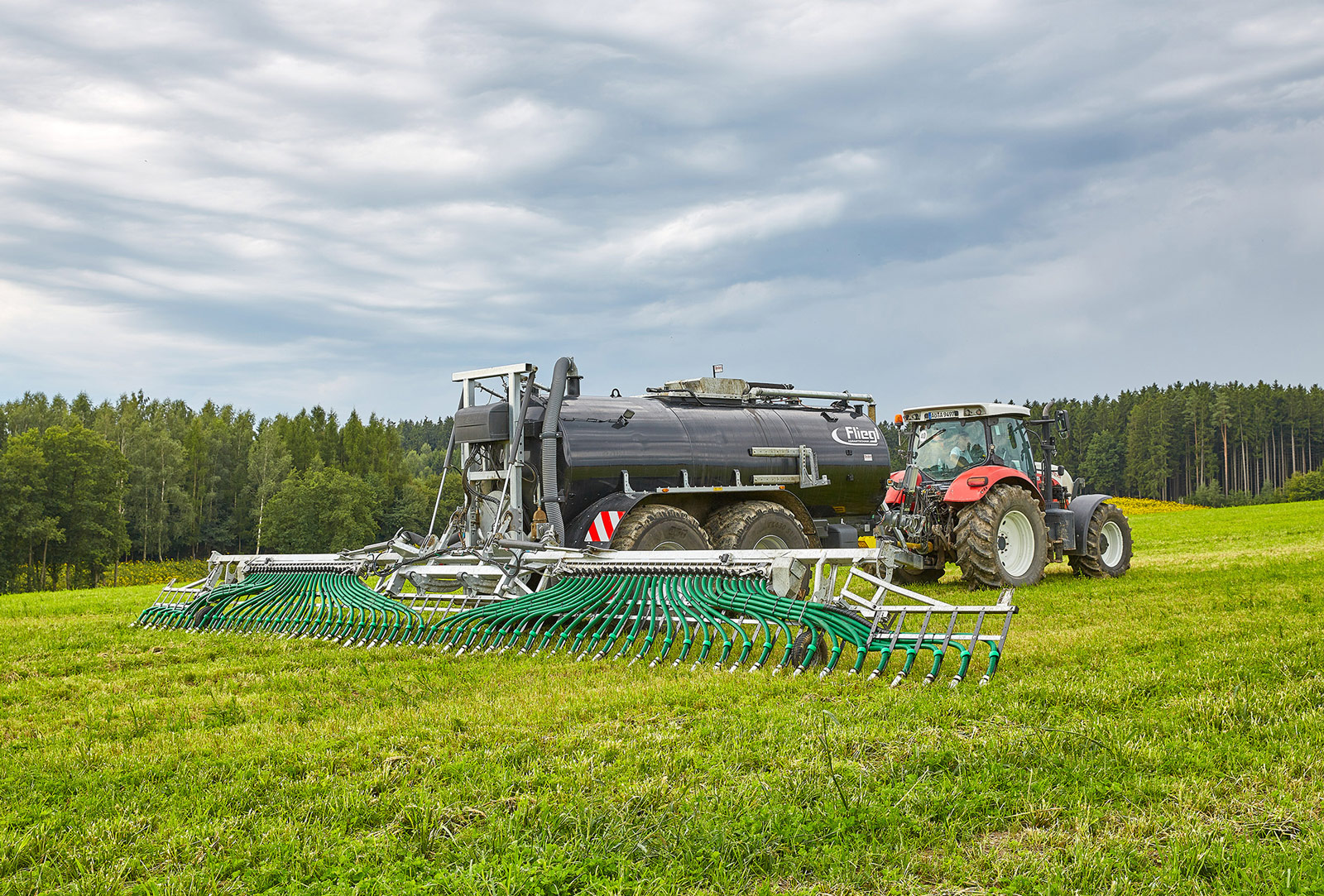

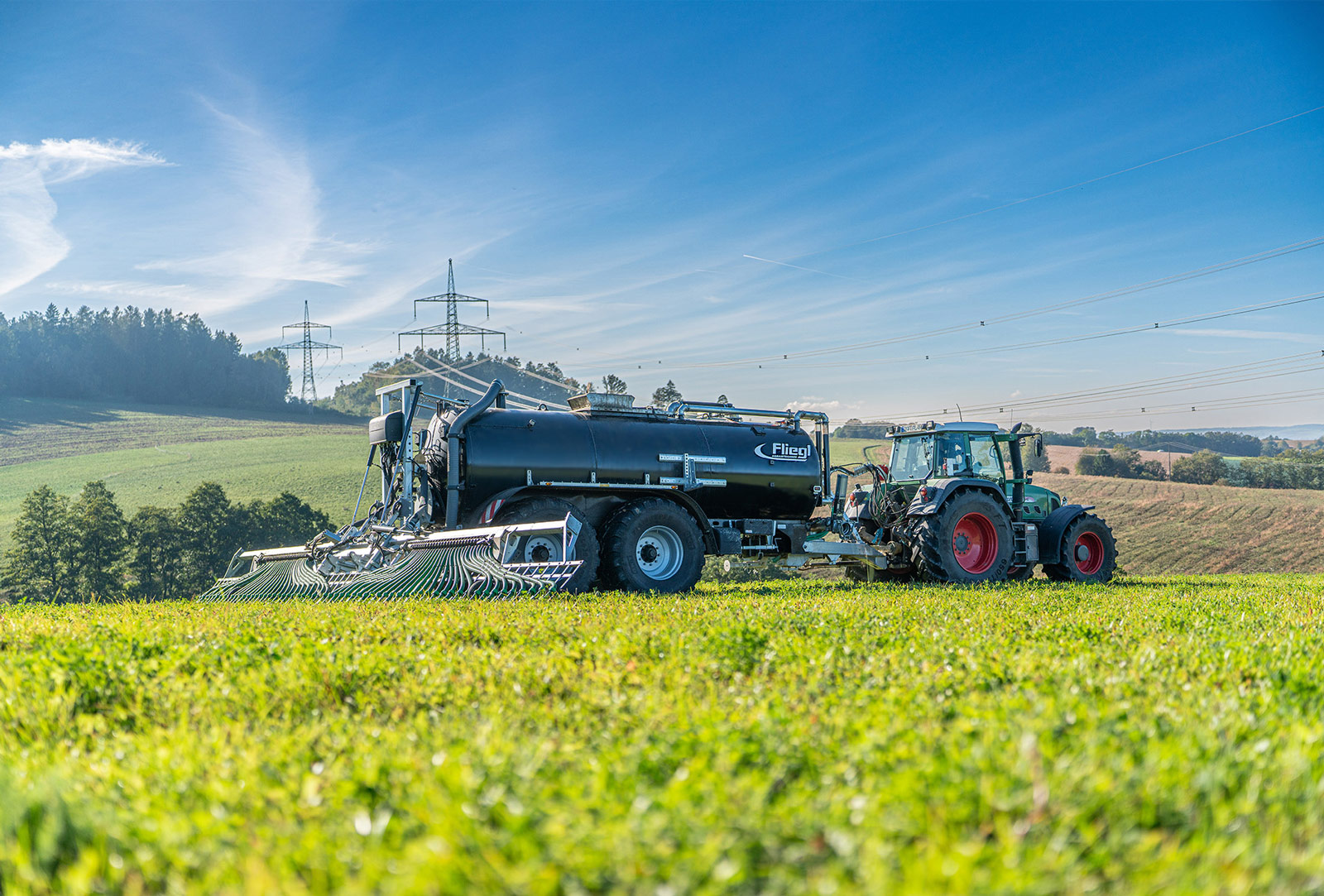

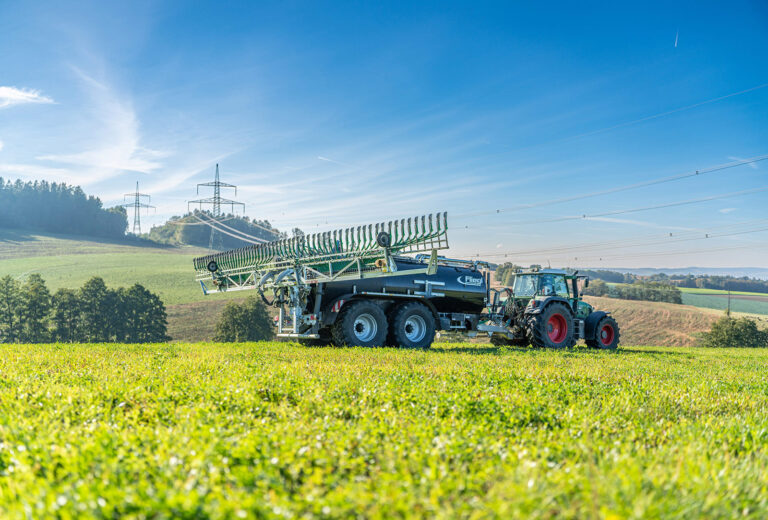

Pump tanker PFW 16000 DUO-Line Plus tandem axle with Drag shoe distributor SKATE 150 SD

PRODUCT INFO
directly to your phone

Permitted total weight 24000 kgAdjustable drawbar, bottom hitch
Drawbar suspension incl. tank tipping cylinder and supporting stand
Parabolic suspension, Gigant assembly
Forced steering: 2 brake axles, front rigid, rear steered
Axle version 410 x 180, brake drums BPW
40 km/h version with EC type approval and COC documents
tyres 750/60 R 30,5
Tank in steel, galvanised
Armatec eccentric screw pump 6000 l with stone trap
Automatic hydraulic pump changeover hydraulic knife gate
Suction nozzle 8″ with docking station direction of travel right incl. pump box
6″ suction slider with Perrot quick coupler, left
Two-chamber system with vent valve, if pump changeover is ordered the vent valve is actuated automatically
Sliding cover approx. 600 x 600 mm hydraulic front incl. ladder and position display
Fill level indicator with Plexiglas, 100 mm (for rear chamber)
Digital flow meter ISOBUS. Shows m³/ha and m³/min. and the suggested driving speed to reach the specified m³/ha (tractor with ISOBUS and TECU as per AEF required)
5-way control block with control panel: 5 x 13 l DA load sensing
Axle drilled for tire pressure control system
LED light package; 2 LED working lights

Operational span of 15000 mm, hydraulic folding
187,5 mm disk spacing (right, version SD)
250 mm disk spacing, left
Comfort control, switchable from load sensing to constant flow, with control panel, sequence control and reversal of screw direction
Trap box, hydraulically opened, including 1-way control block
T-piece at rear of tank
Left and right-side hydraulic shut-off valve
Bypass control for gate valve side deactivation, hydraulic (only possible with complete orders incl. pump tanks, not required with flow rate control (DMR))
2 LED working lights
Feeler wheels
New oil motor mounting
