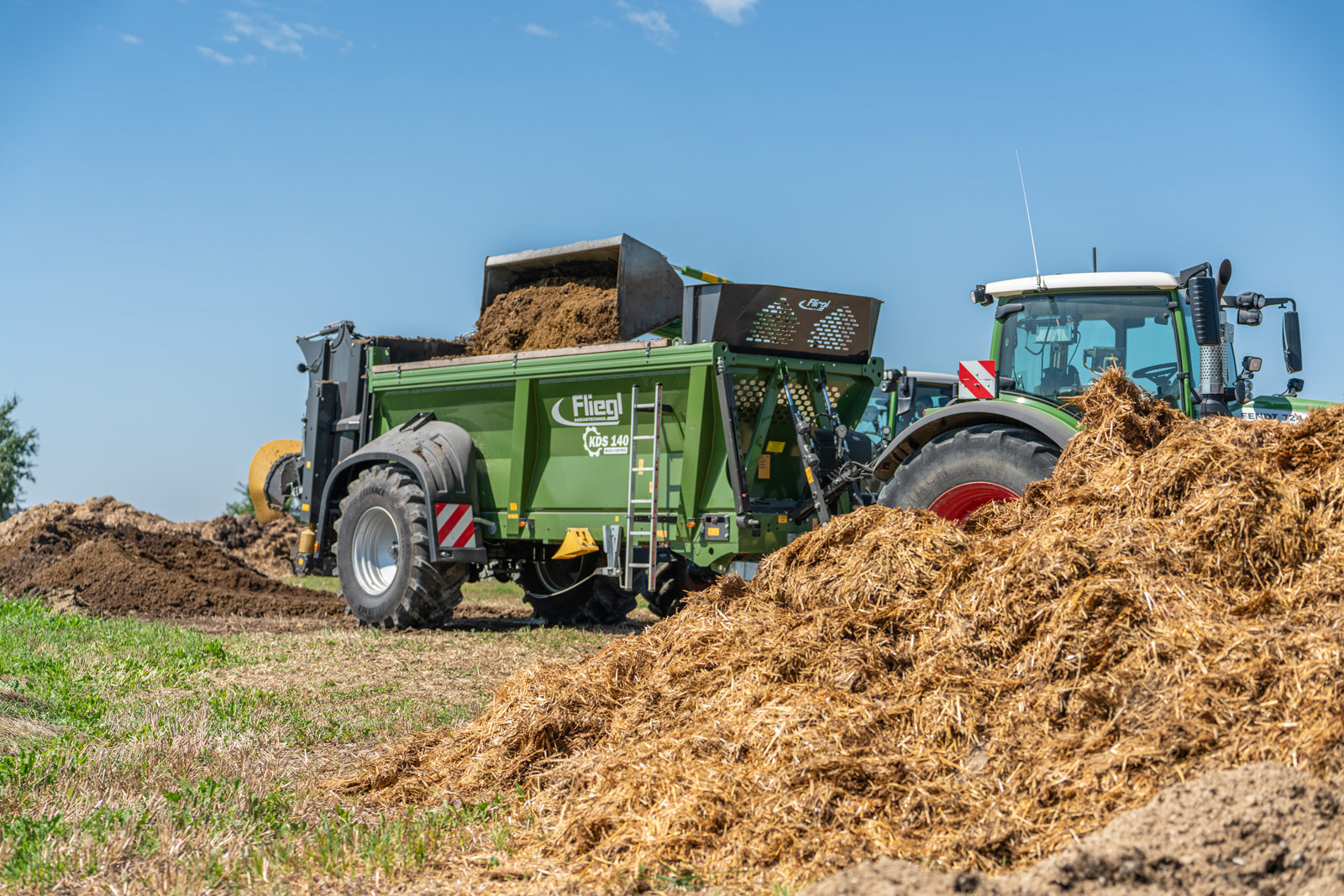

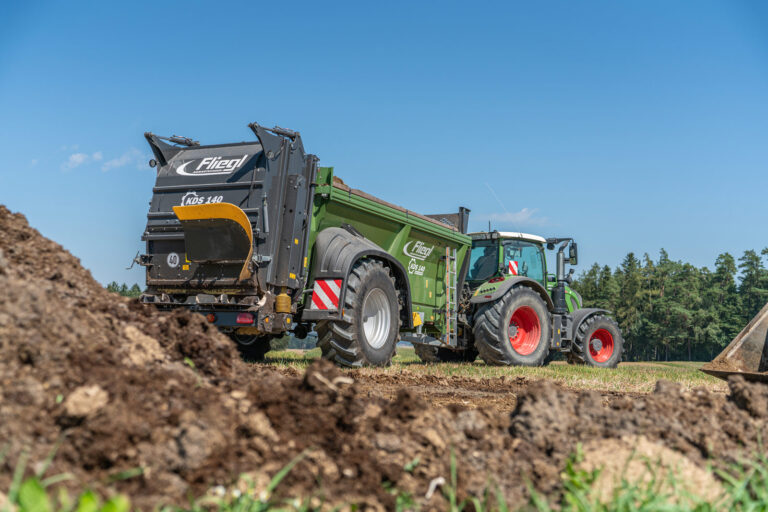

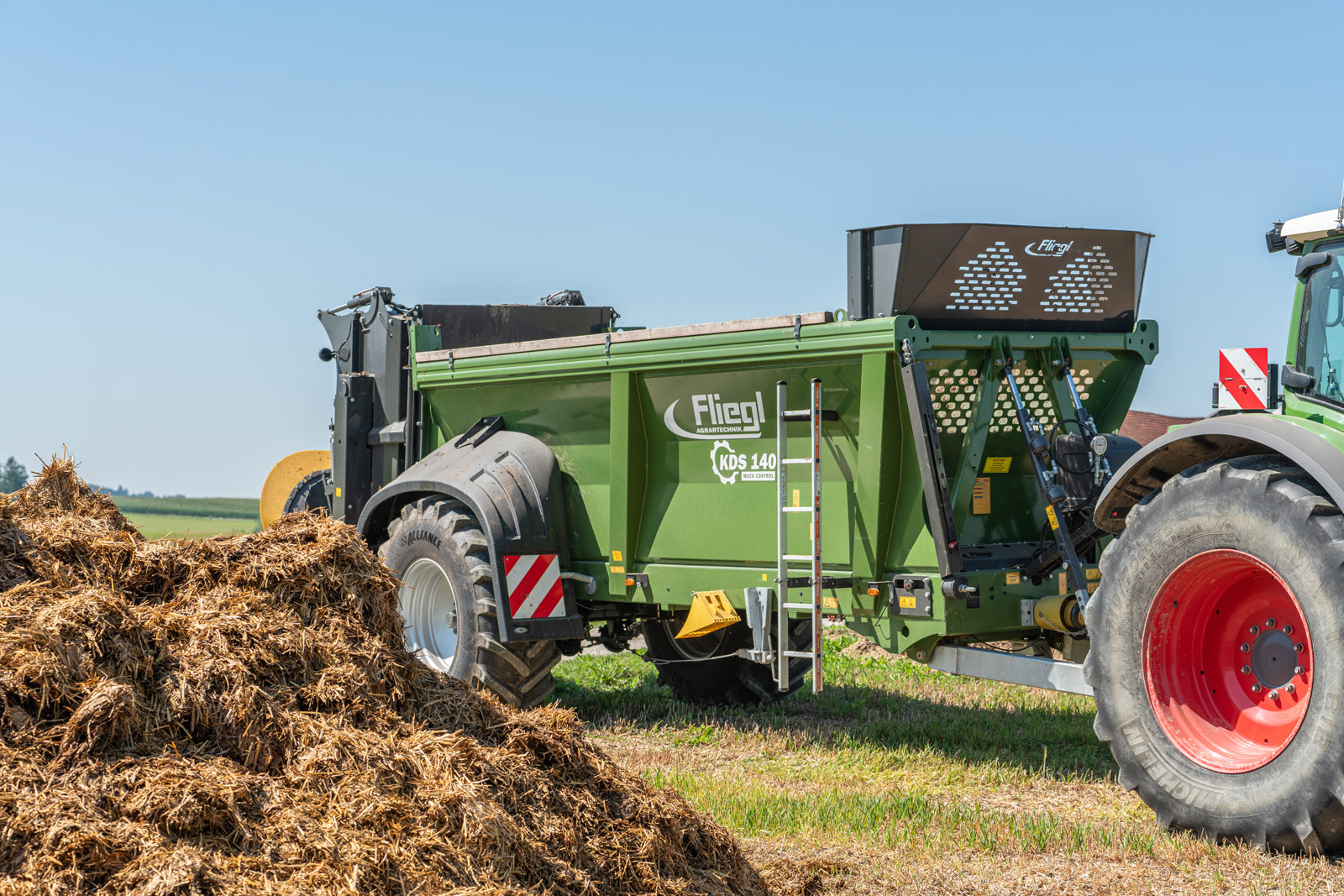

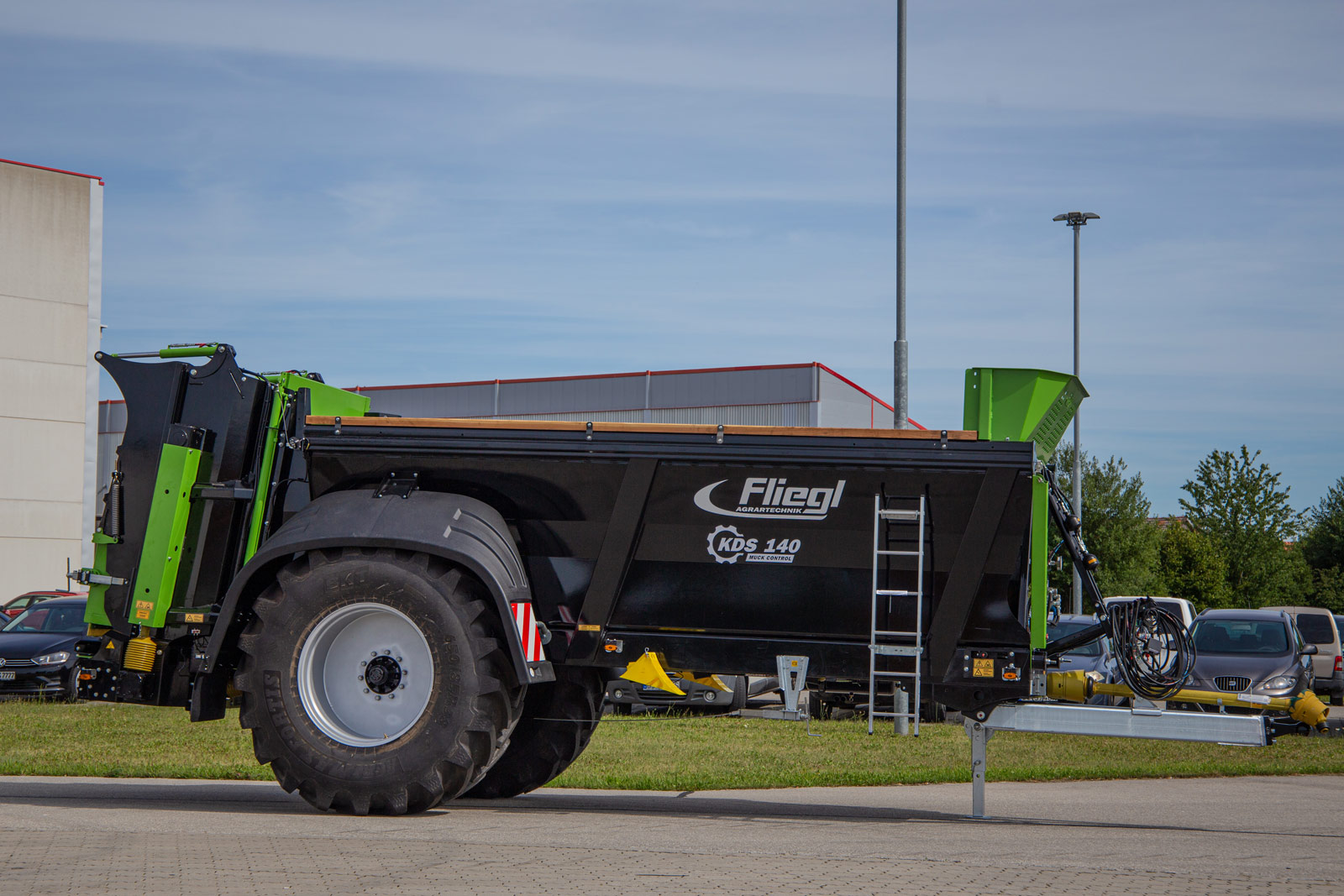

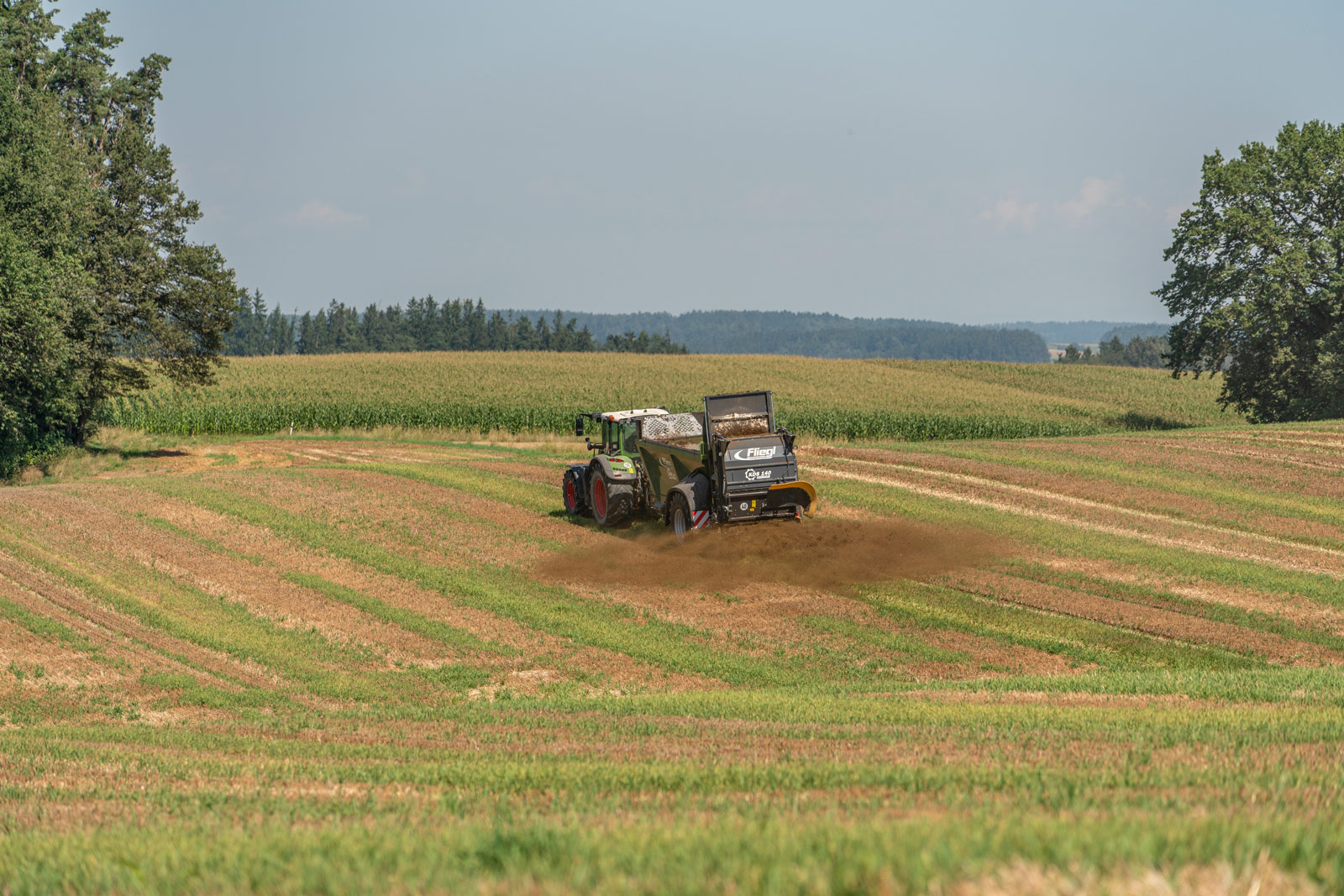

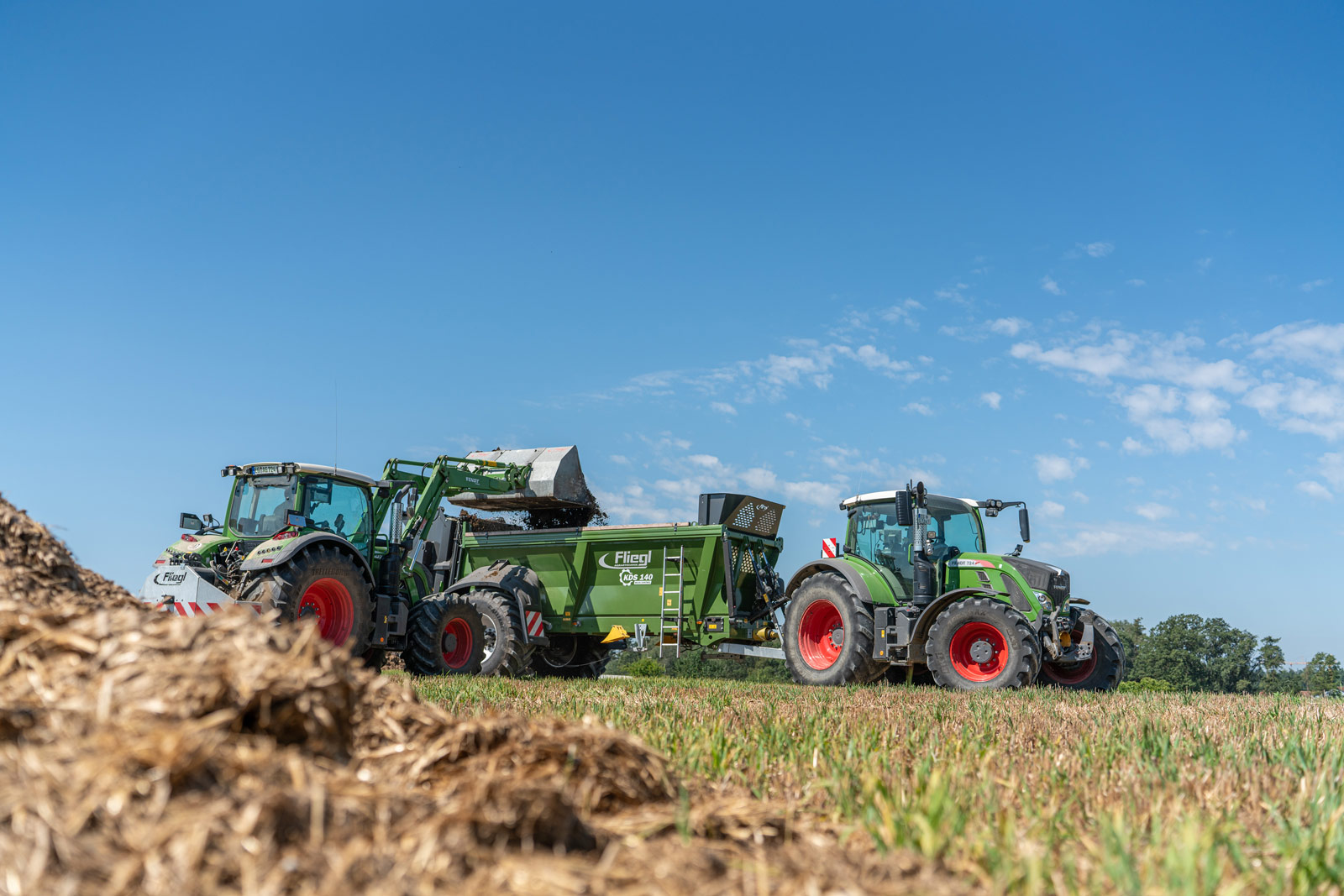

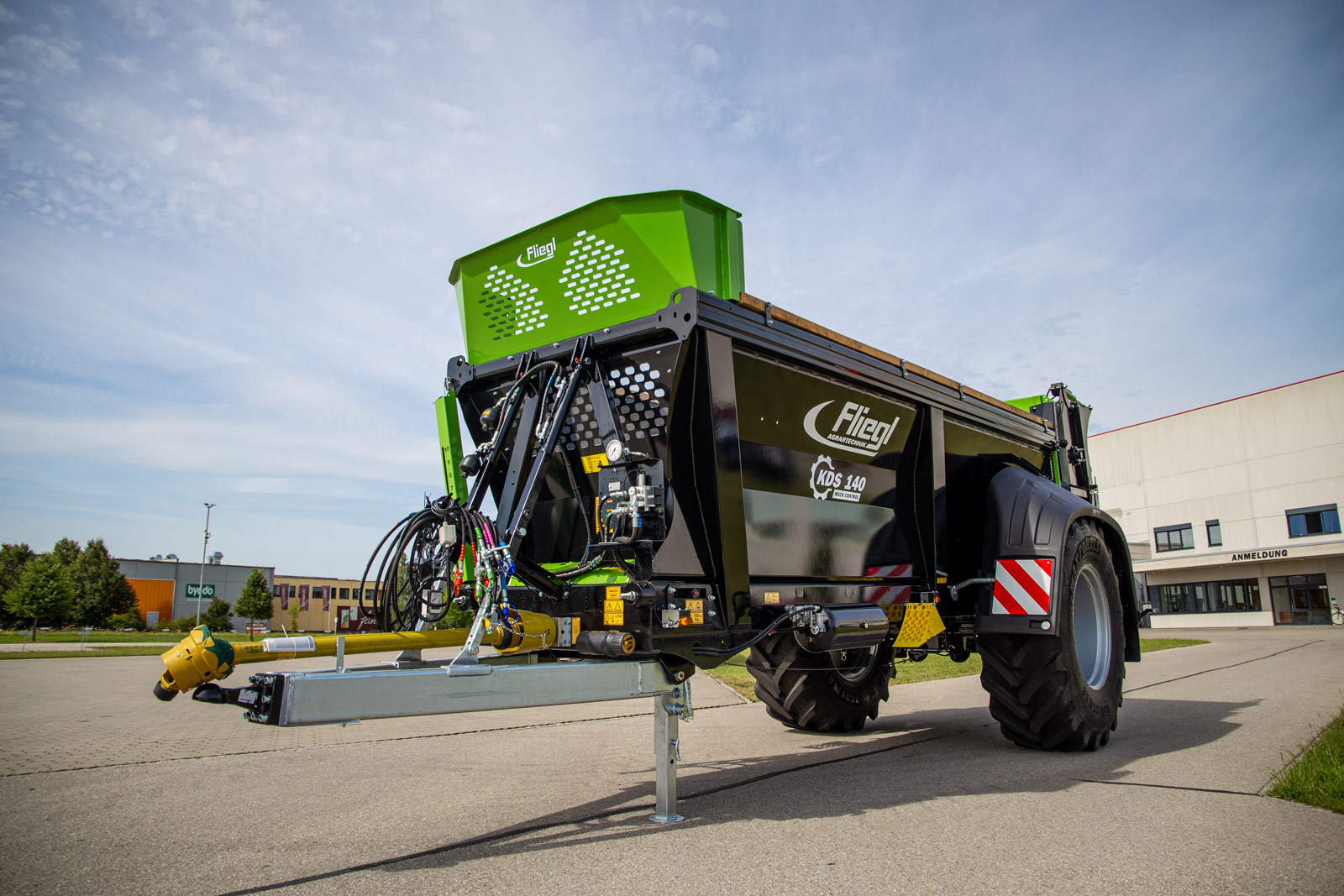

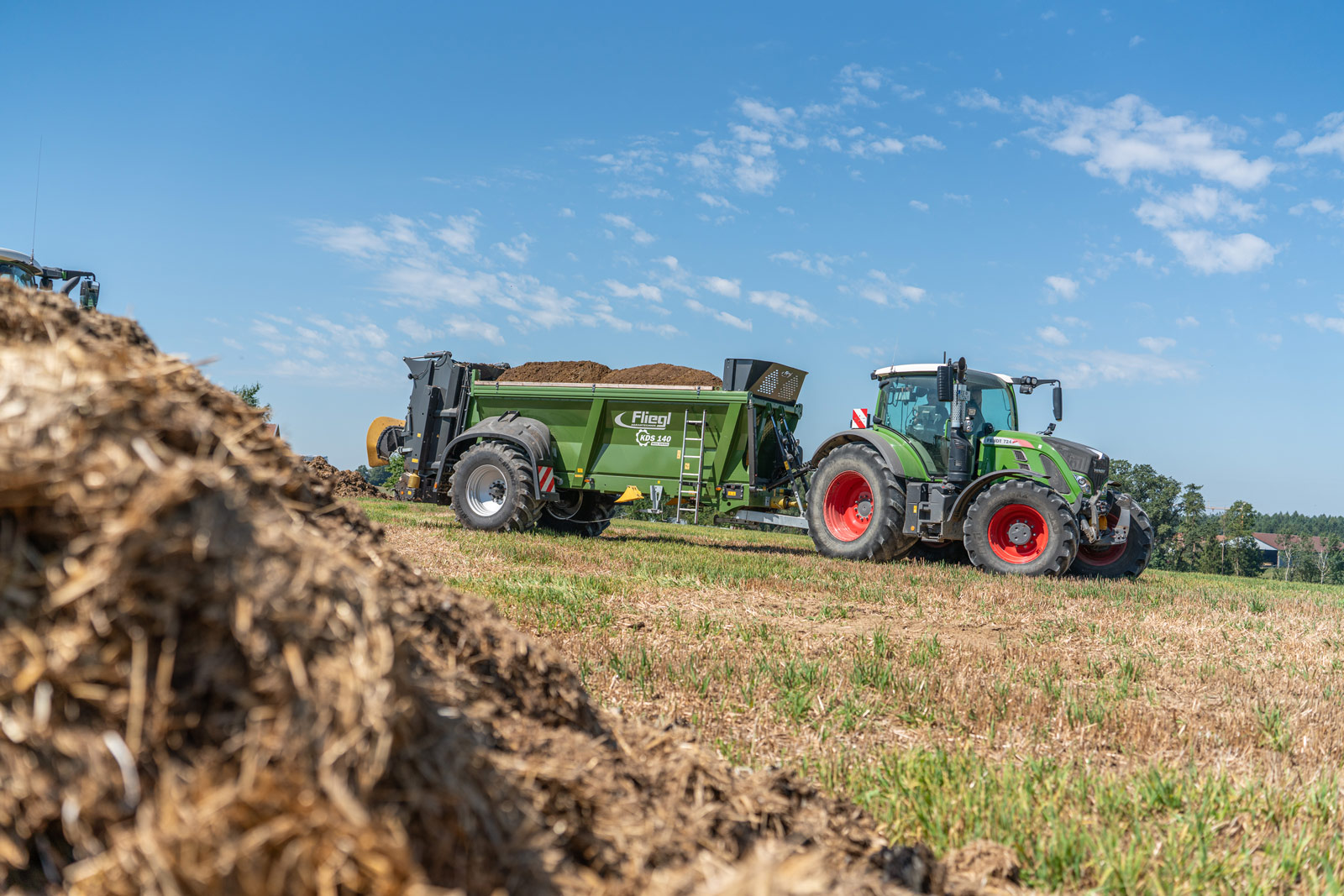

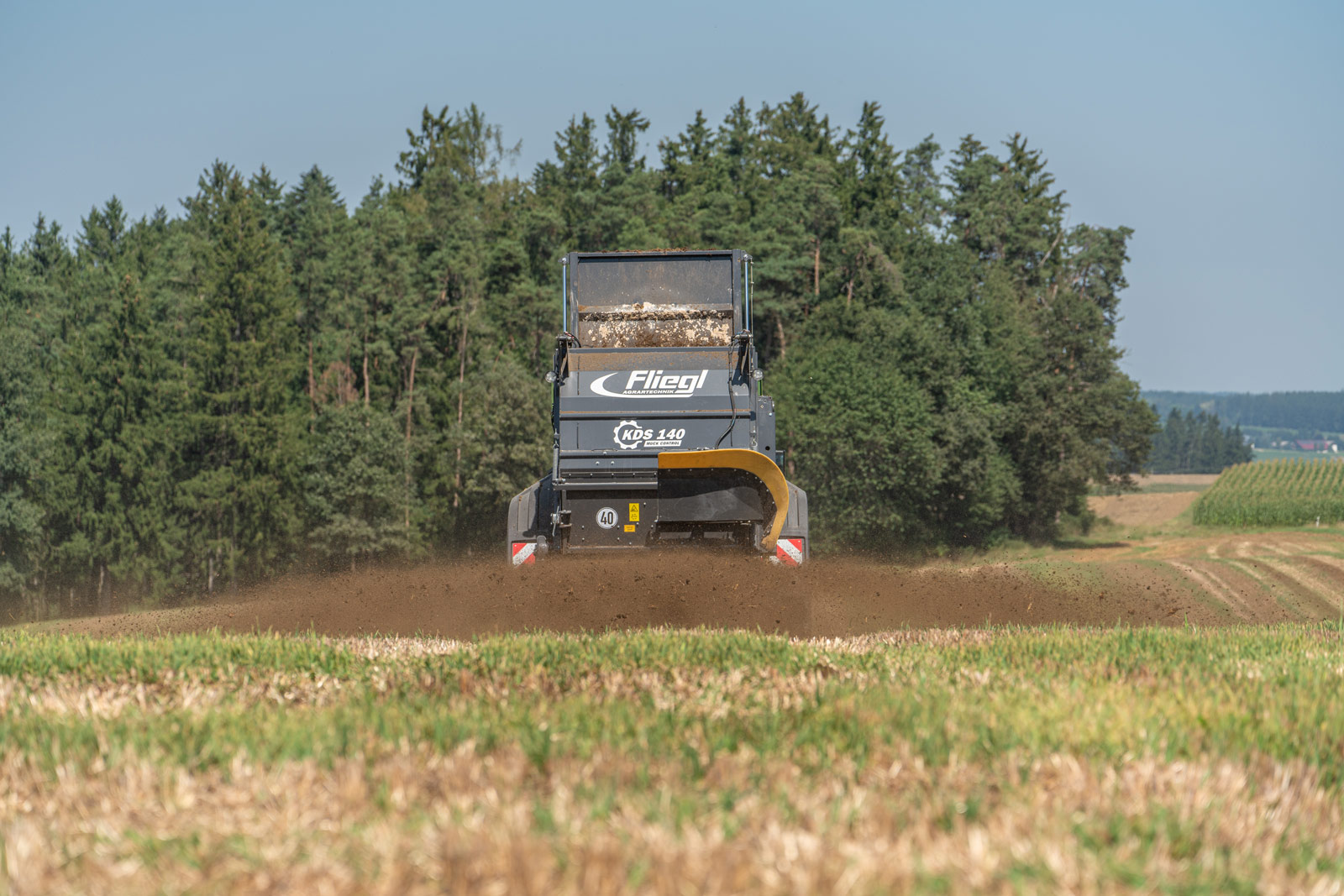

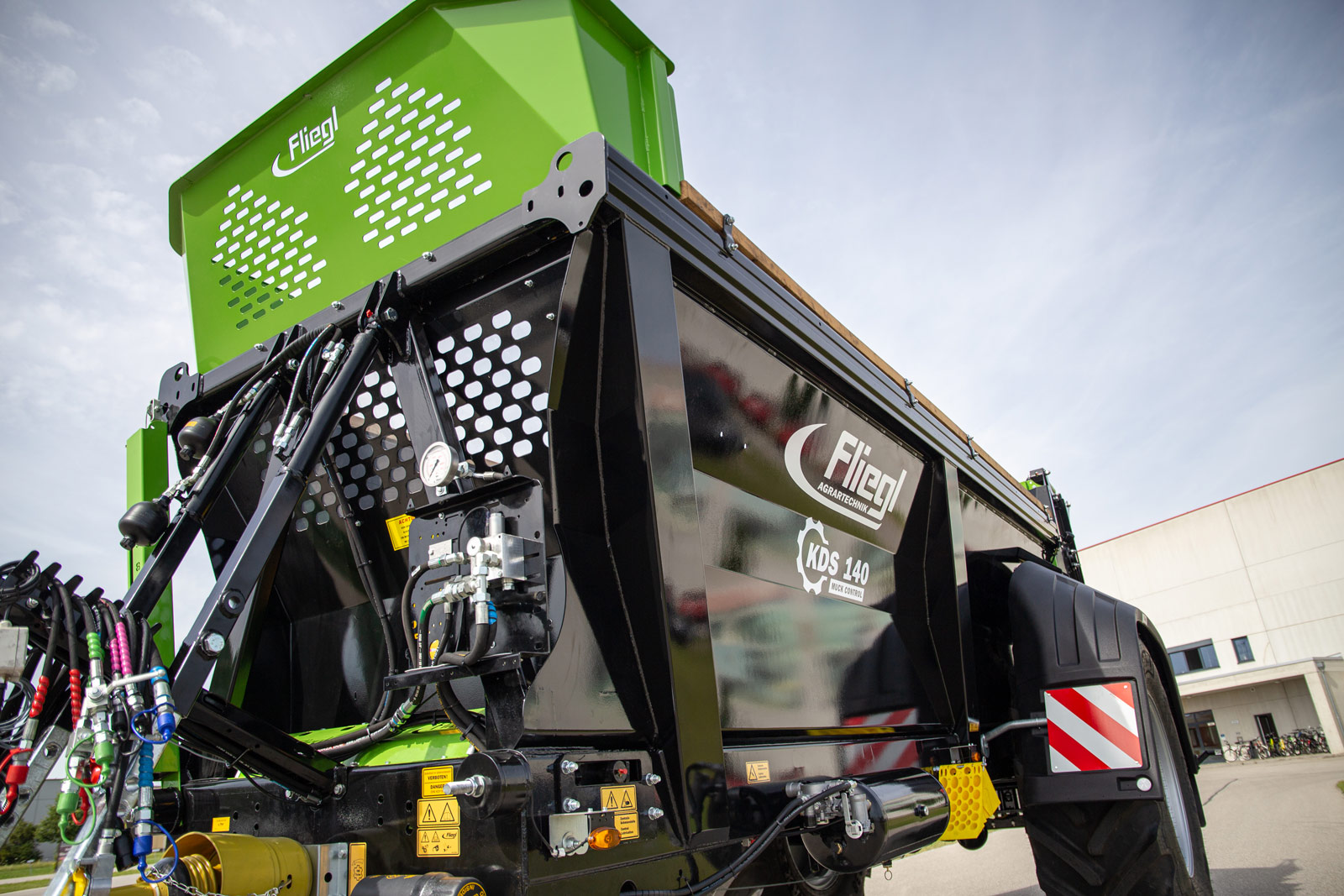

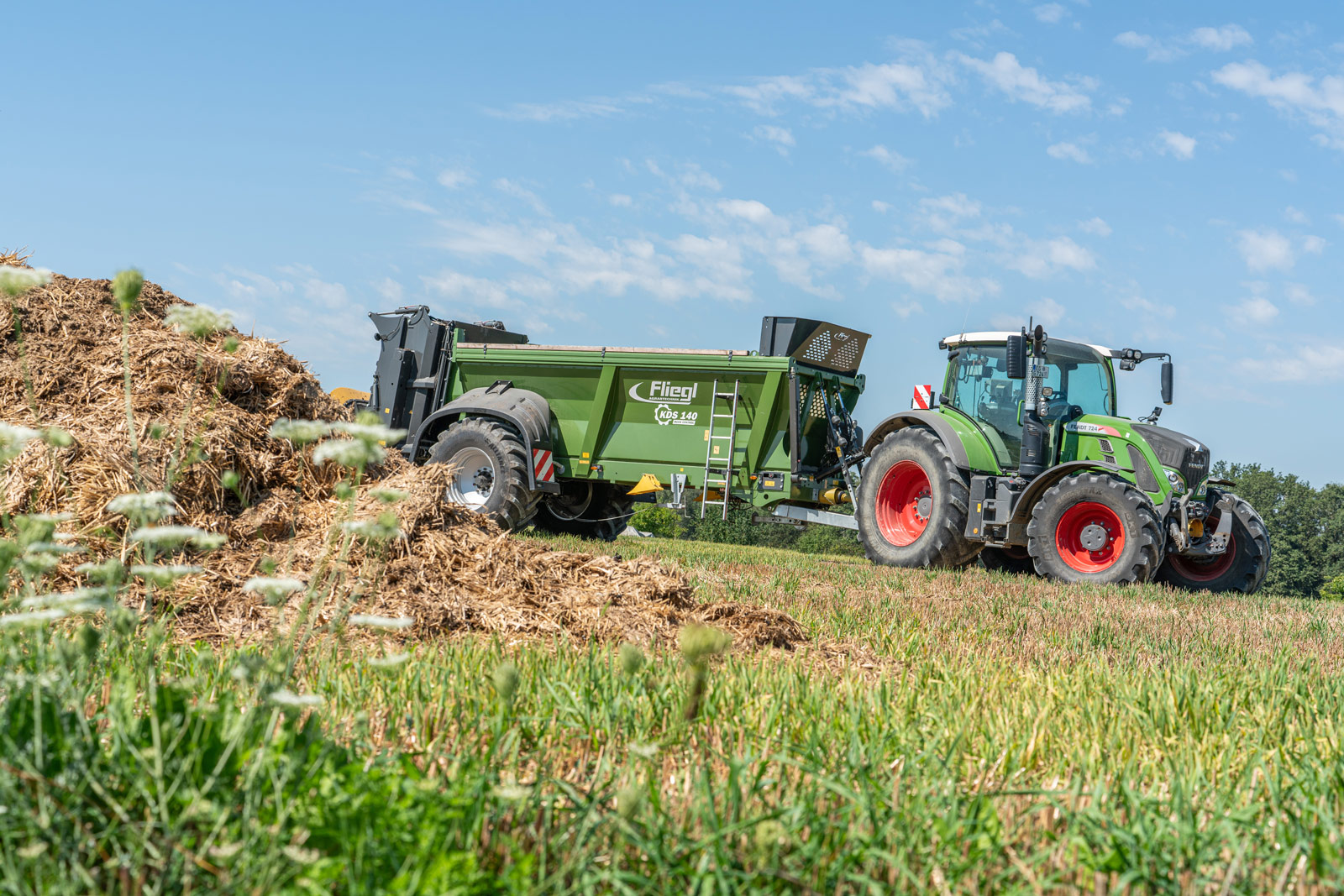

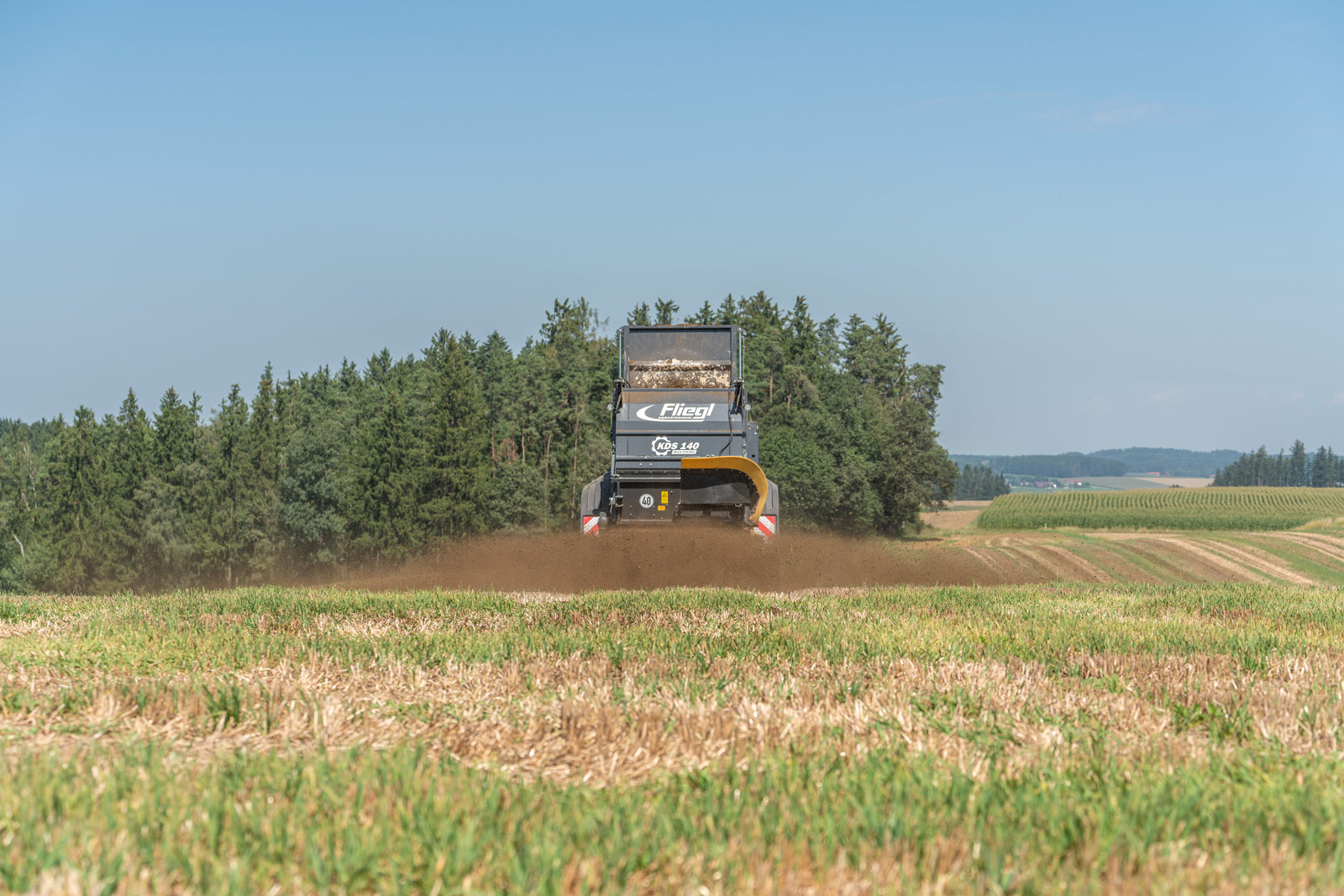

KDS 140 Tiefbett single-axle chain manure spreader
PRODUCT INFO
directly to your phone
- Total loaded vehicle weight: 13000 kg
- approx. 14 m³ volumetyres 650/85 R38
- Wide-spreading unit: muck control for spreading widths of up to 24 m
- 1800 mm passage width
- 2 horizontal cardan-driven milling drums Ø 770 mm
- incl. sliding gate with enclosed guide for optimum sealing and hydraulic tailgate with mechanically adjustable inclination
- 2-disc wide spreader varioSPLASH Ø 950 mm, with 6 spreader vanes per disc, discs made from HB 400
- Scraper floor with 20 mm V2 chain links (50 t breaking load, 1 control unit required)
- Sliding gate opening angle indicator
- Spreader limitation right
- Manual tensioning device with external lubrication
- Automatic regulating and control system SpreaderControl ISOBUS
- Hydraulically sprung draw gear incl. folding supporting foot, bottom hitch
- Ball head K80 (Ø 80 mm)
- 2-circuit compressed air brake system with ALB
- 40 km/h version with EC type approval and COC documents
- 12 V LED lighting
- Wide angle drive shaft with cam coupling – 6 splines
- Body attachment 500 mm, folding
- 2 LED working lights
- Clearance lights, rear
- Ladder mounted
- Load counter
