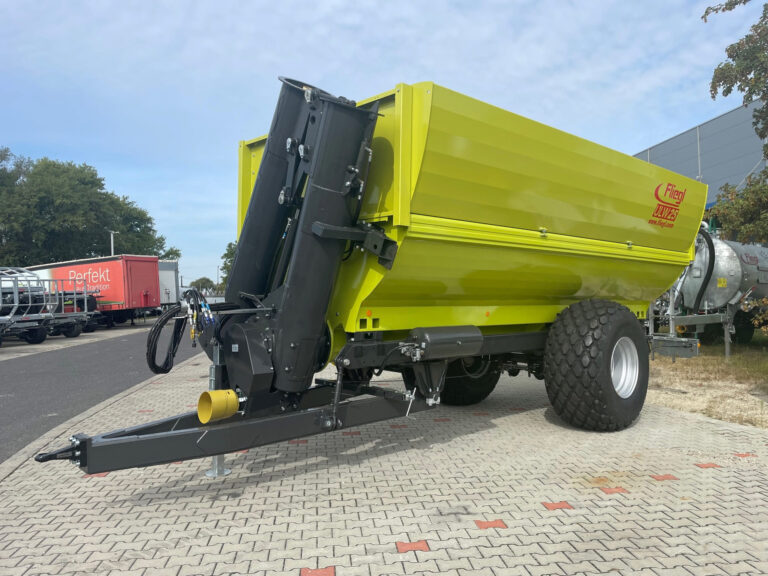

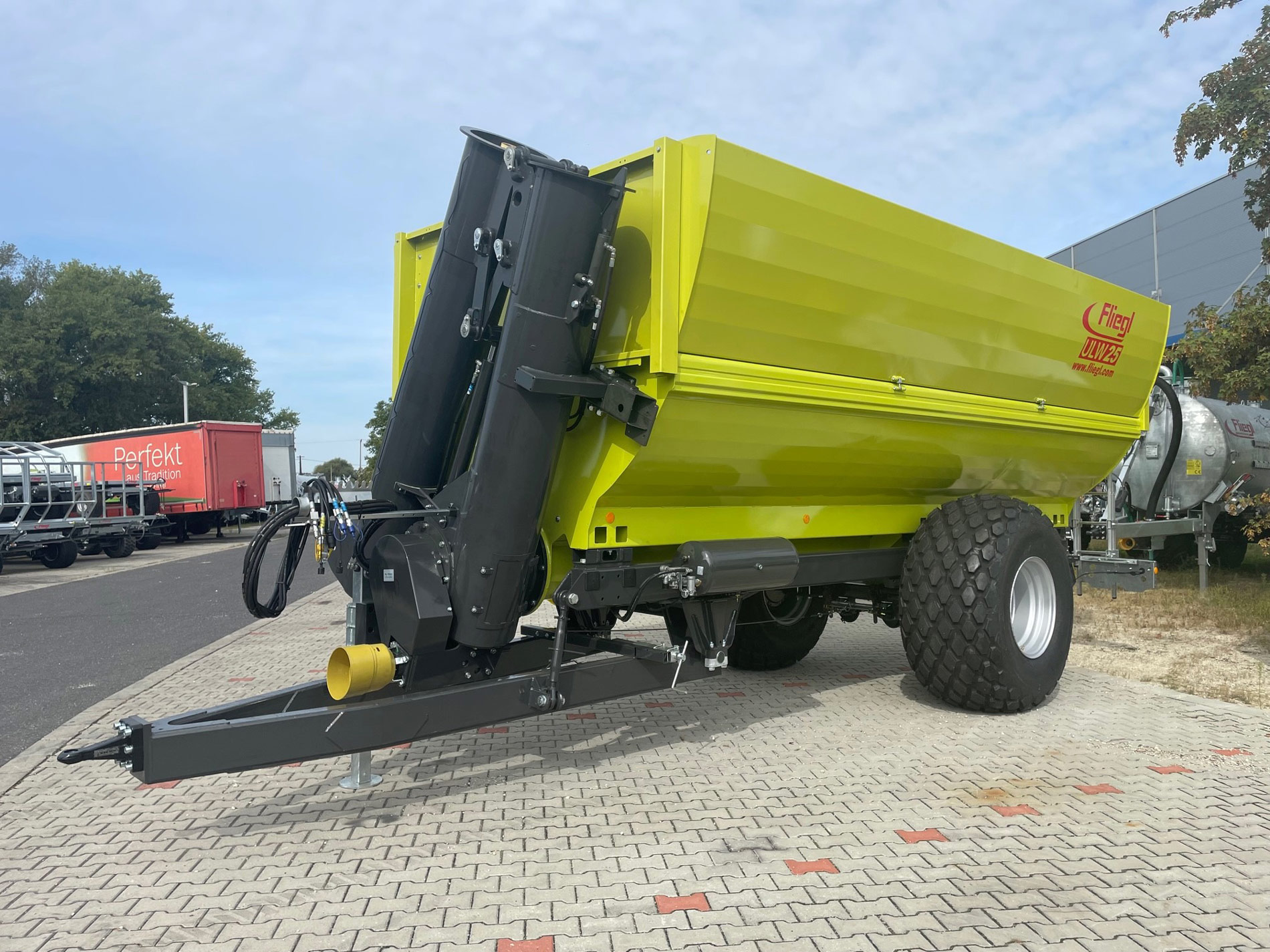

Chaser bin VARIO ULW 25 single-axle

PRODUCT INFO
directly to your phone

Single-axle chassis
Volume approx. 25 m³
Overloading auger diameter 400 mm
Transfer rate approx. 7.5 t per min.
Swivel cylinder for grain auger (swivels from 21-56°)
- Discharge height at 21° approximately 5,100 mm (depending on the tire type)
- Discharge height at 56° approximately 3,000 mm (depending on the tire type)
hydraulic discharge opening 500 mm x 300 mm bottom
Dosing hose – hose top piece. 150 mm for filling seed drills
- Discharge height at 56° approximately 3,000 mm (depending on the tire type)
Cover system for folded discharge auger
Fliegl weighing system FWS ISOBUS tilt compensation
Adjustable drawbar, bottom hitch
adjustable drawbar, bottom hitch
Ball head K80 (Ø 80 mm)
2-circuit compressed air brake with manual setting
40 km/h version with EC type approval and COC documents
tyres 710/50 R 30.5
Roller tarpaulin can be operated from the ground
