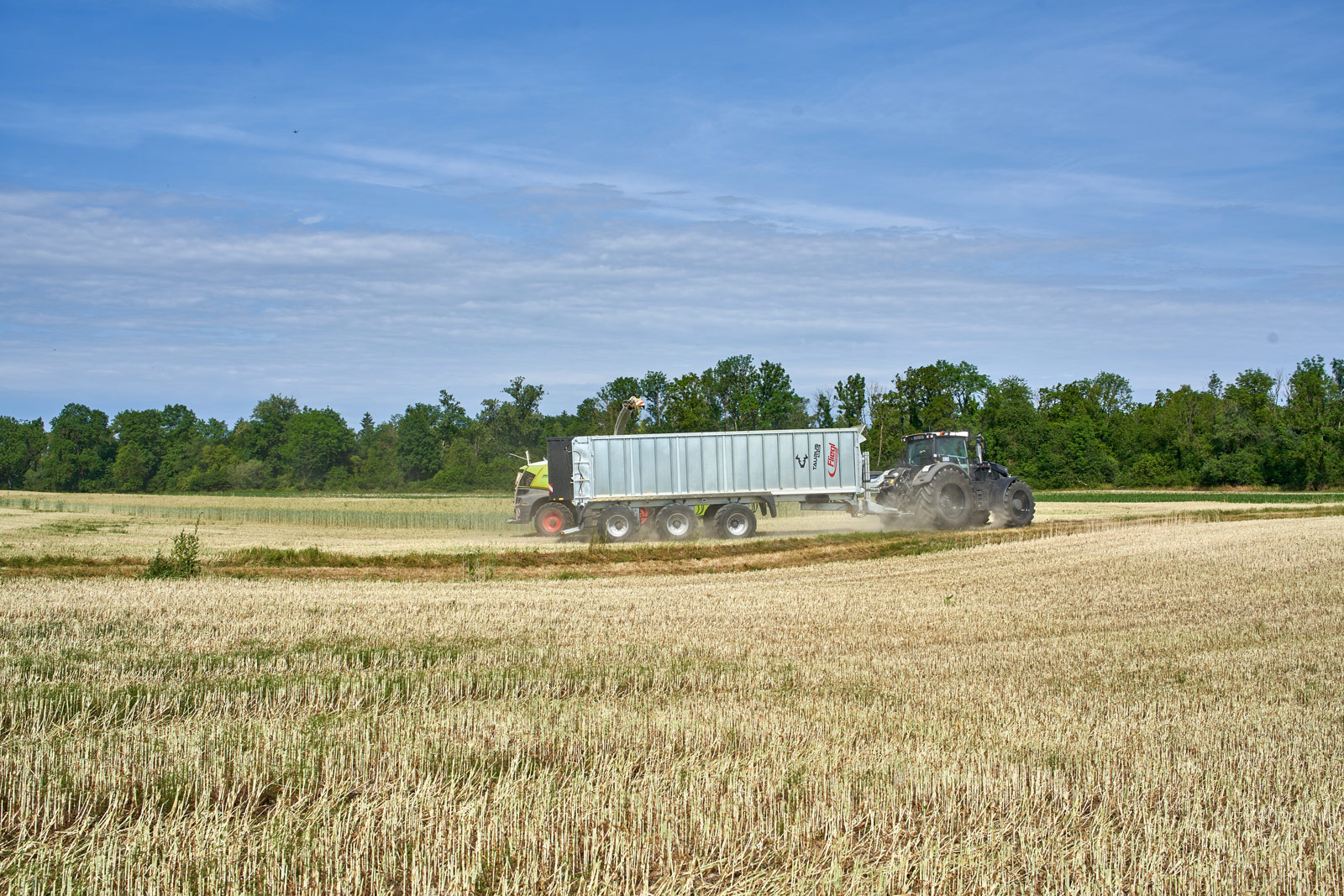

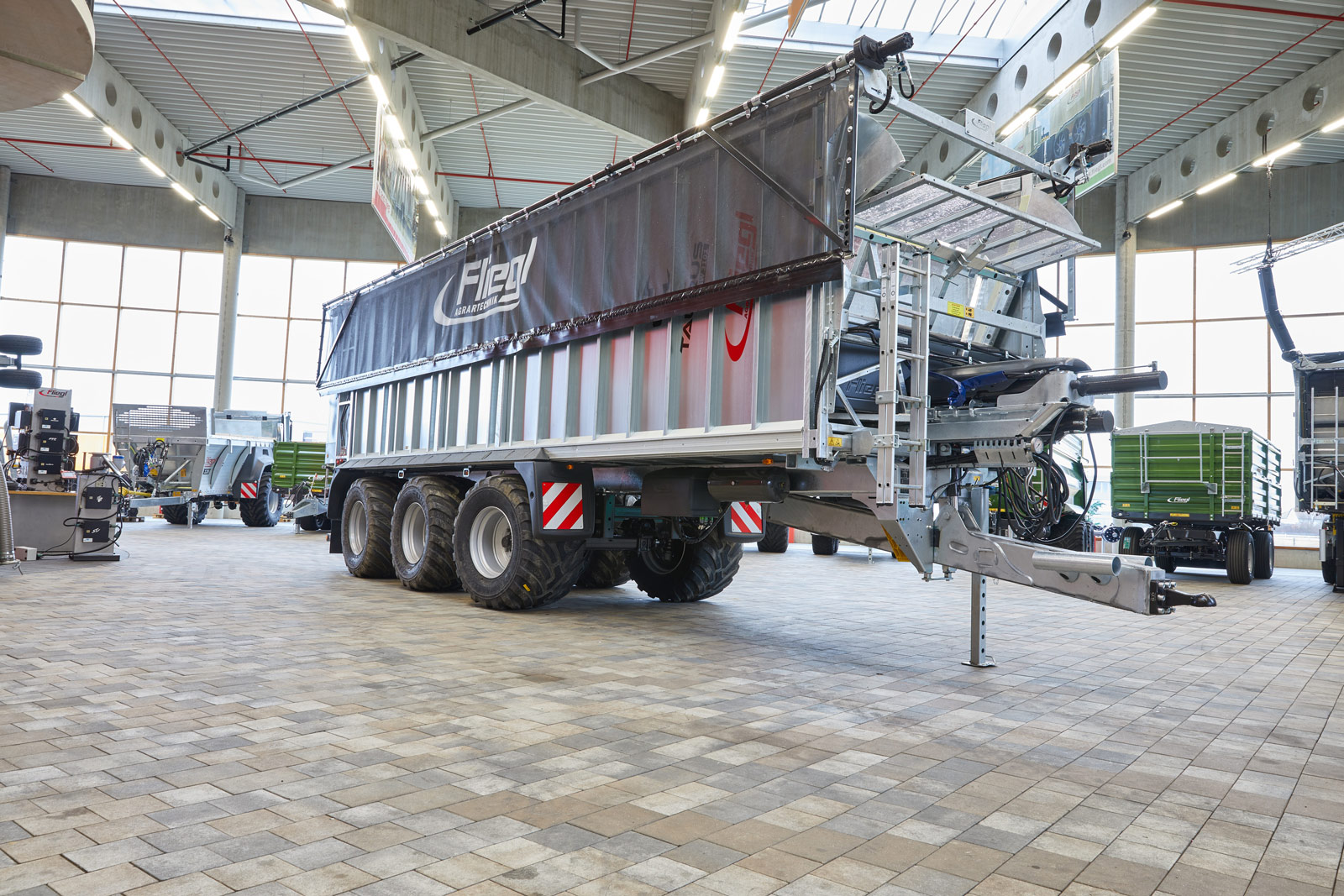

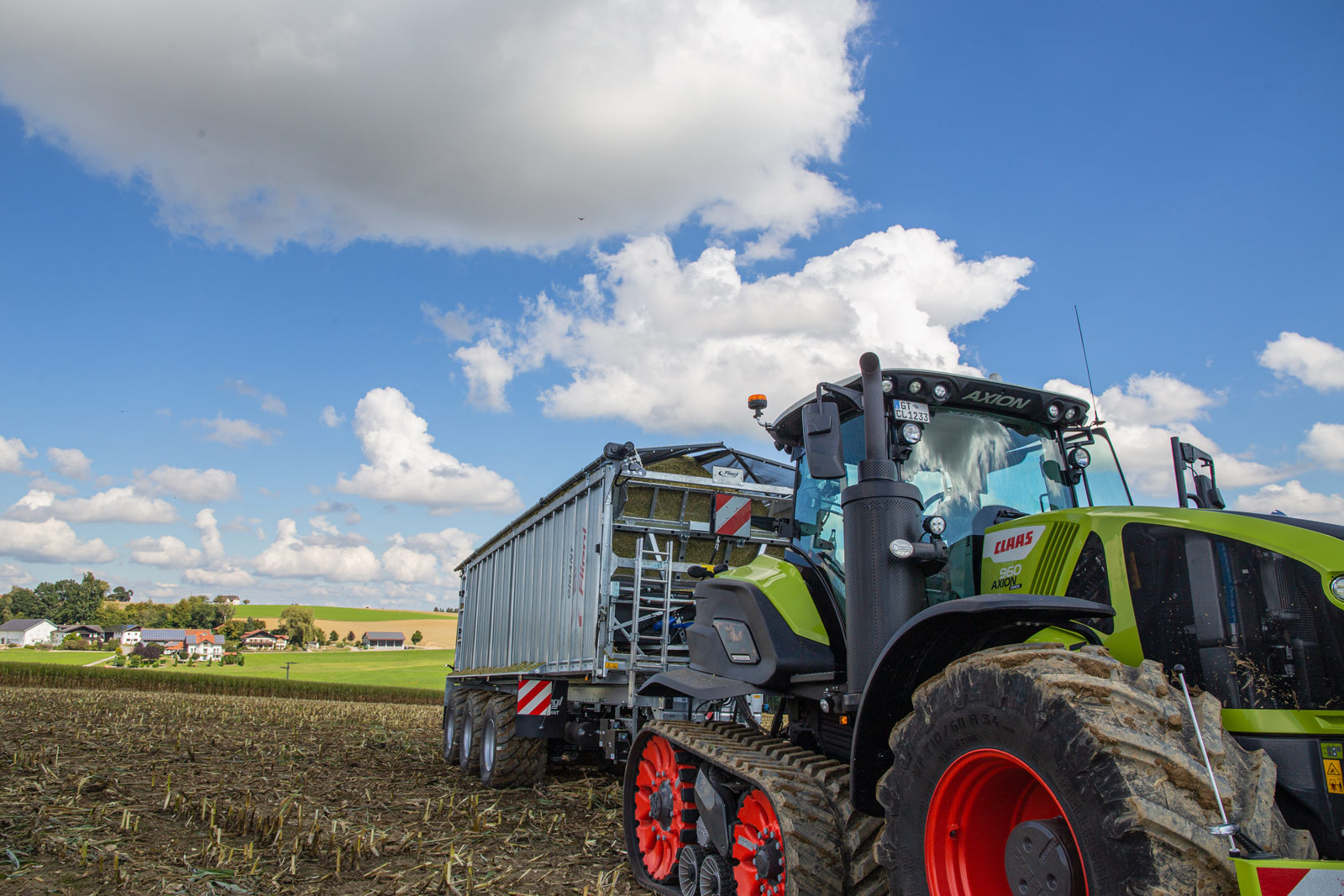

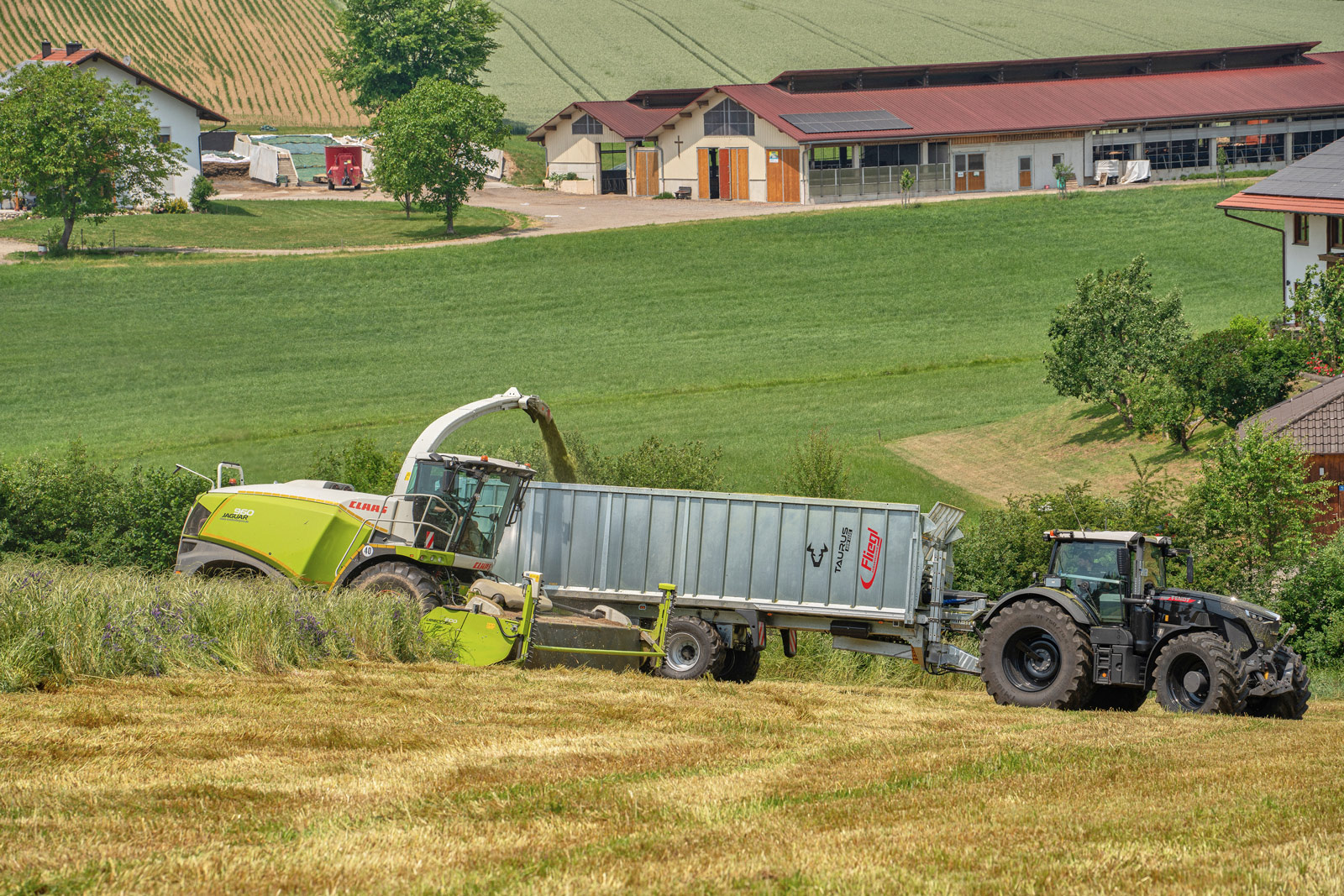

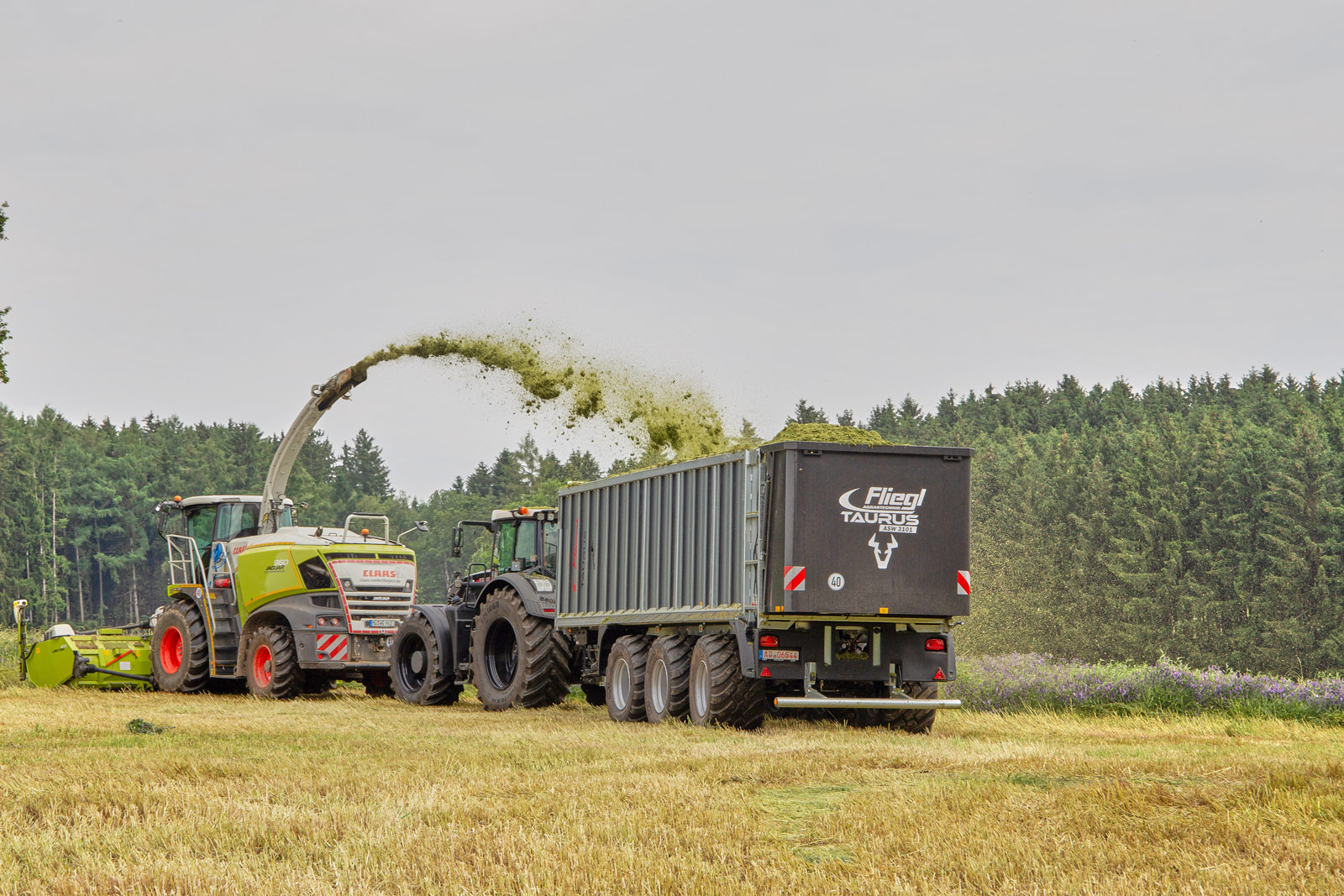

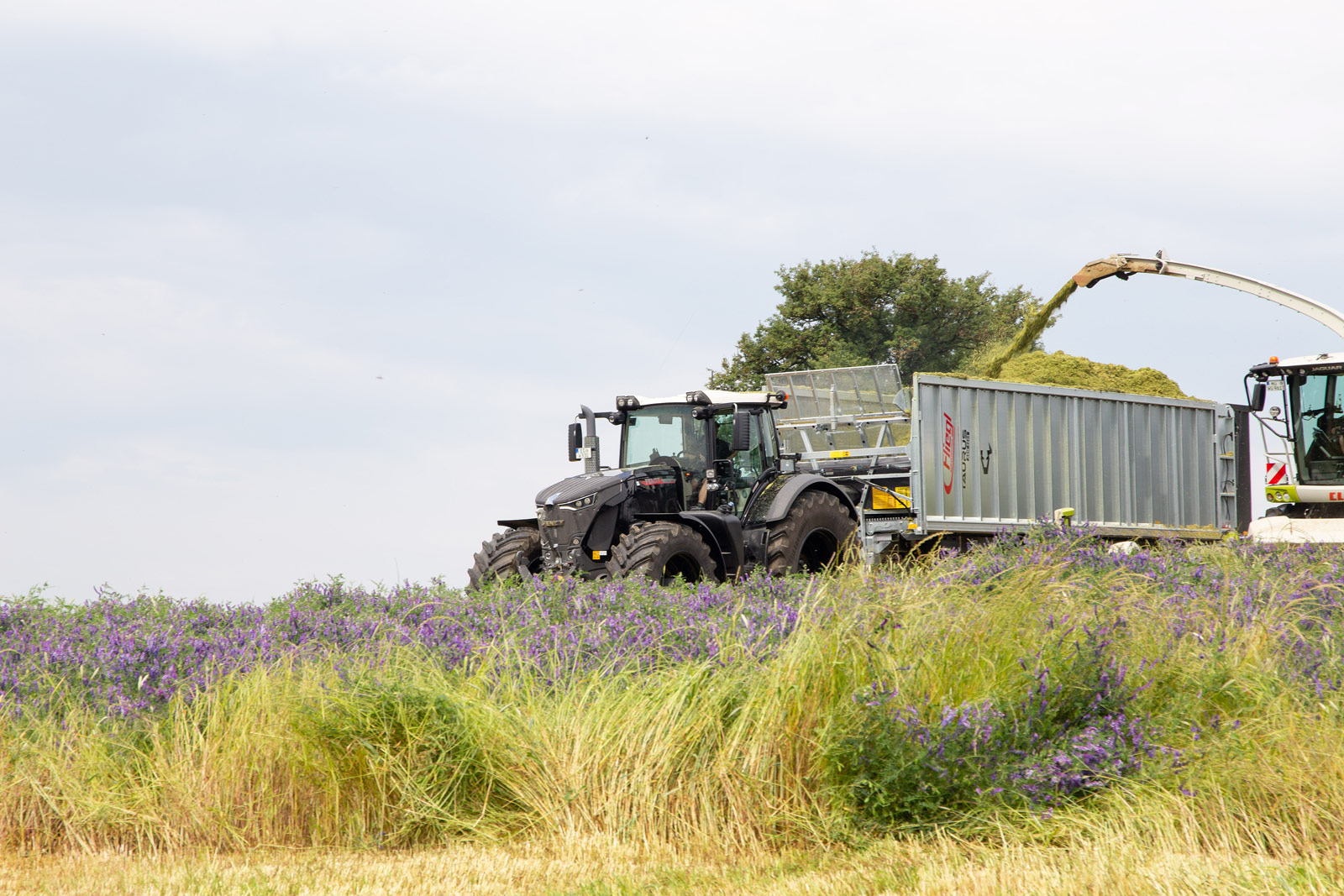

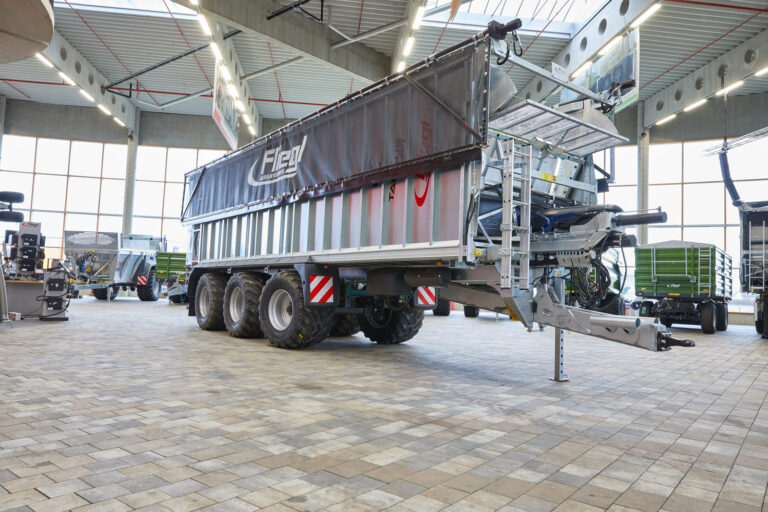

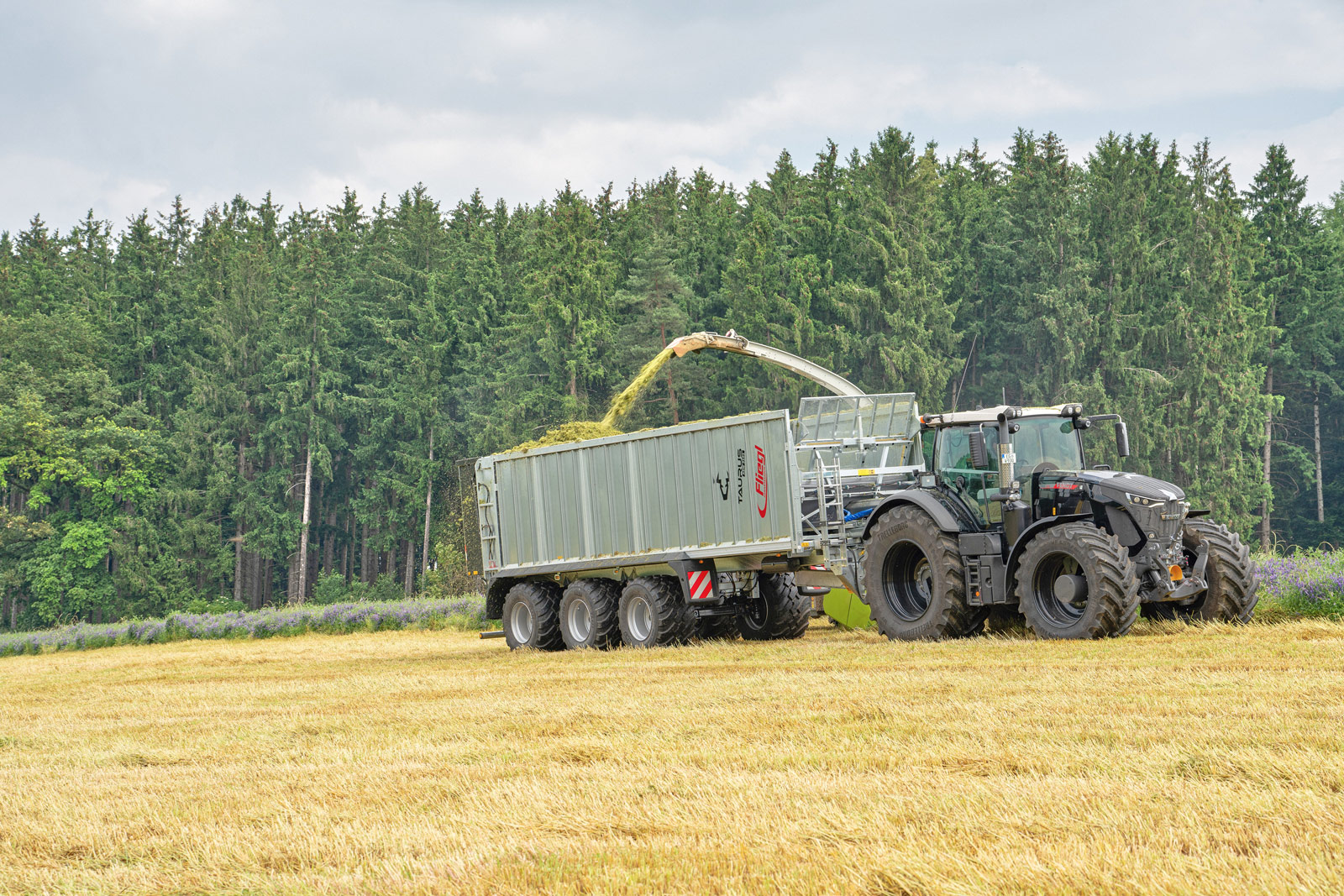

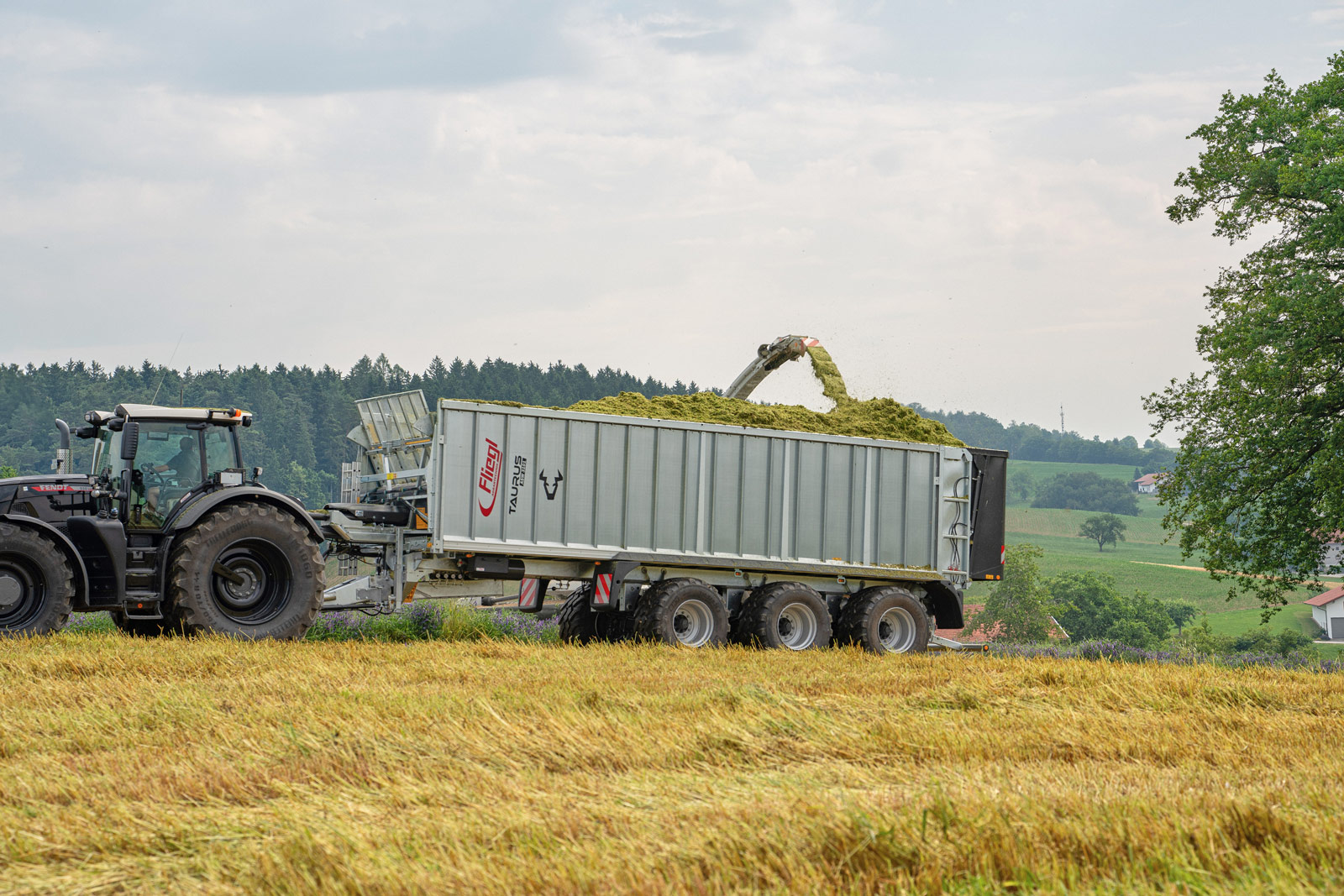

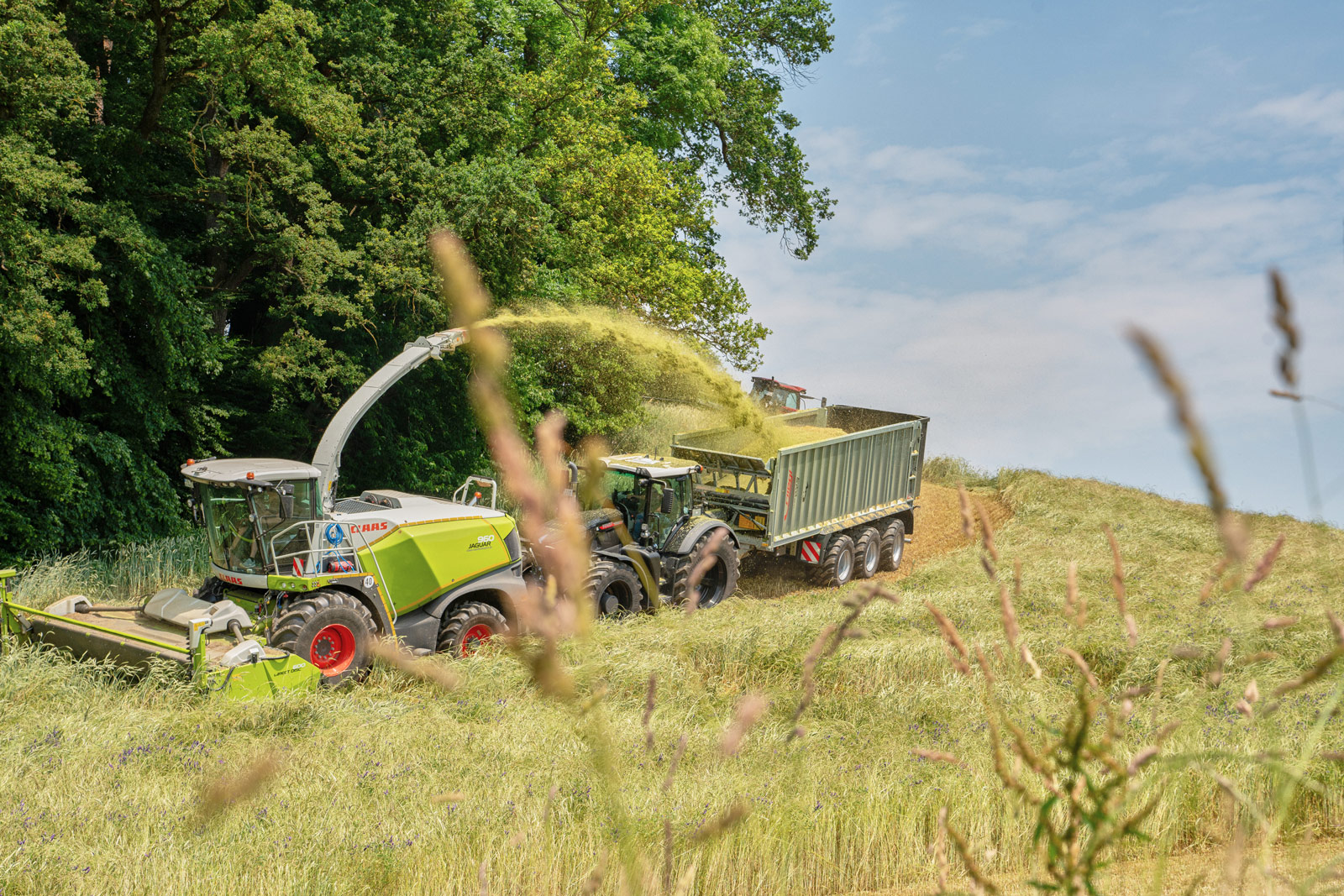

Abschiebewagen Gigant ASW 3101 TAURUS FOX Tridem
PRODUCT INFO
directly to your phone
- Triaxle chassis
- Permitted total weight 34,000 kg
- Floor 10100 mm x 2380 mm (incl. rear panel 800 mm)
- Rear panel and side walls 2300 mm high
- Side walls galvanised and outside painted jet black / RAL 9005
- Hydraulic large-size tailgate 800 mm with grain slider
- Hydraulic Push-Off floor with revolving polyurethane strips
- Hydraulically sprung draw gear for bottom hitch
- Ball head K80 (Ø 80 mm)
- Forced steering SteerX
- Without a mechanical connection to the towing vehicle
- Easy operation via ISOBUS terminal
- 3 operating modes: Automatic, Manual, crab steering
- Axle version 410 x 180, brake drums BPW
- Triebachse DriveX
- Max. power output approx. 90 kW
- Automatic switching between forward and reverse
- Hill start assist
- Easy operation via ISOBUS terminal
- Tyres 710/50 R30.5
- 40 km/h version with EC type approval and COC documents
- Underride guard, folded hydraulically
- Hydraulic suspension
- First axle as a lift axle
- LED light package with additional lighting on the upper part of the large rear wall
- Additional Protect package:
- Profile filler
- Plastic mudguards
- Plastic rear bumper
- Outline lights
- LED interior lighting
- 2 LED working lights
- Comfort control ISOBUS Load Sensing, with sequential control
- Rear view camera
